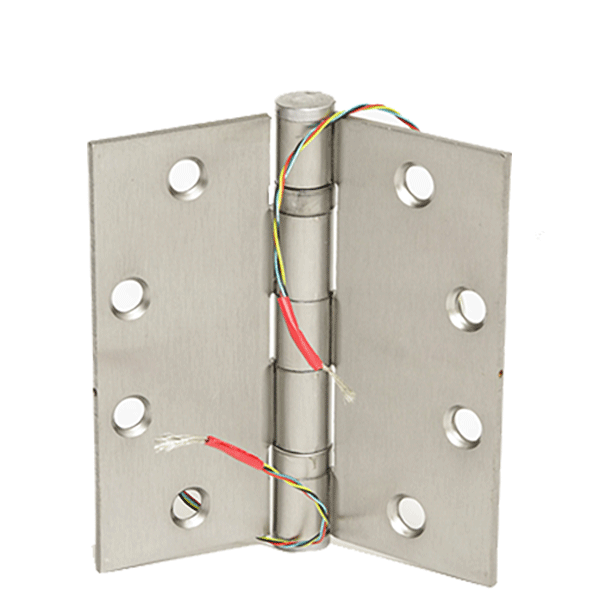

Command Access Technologies ETH4W4545-626CH-BB79 Power Transfer Hinge 4-1/2 x 4-1/2 In

Product Description

The Command Access Technologies ETH4W4545-626CH-BB79 is a power transfer hinge designed to pass low voltage electricity seamlessly from the hinge jamb to the lockset. This product minimizes visible wiring, making it suitable for use with electric mortise and cylindrical locks.

• Standard weight 4 wire, 3 knuckle design
• Concealed bearings for smooth operation
• Hinge size of 4-1/2 inches by 4-1/2 inches

Product Highlights

This hinge is engineered for efficiency, providing a reliable energy transfer solution while maintaining a clean aesthetic appearance.

Product Information

Standard Information

• Manufacturer Part Number: ETH4W4545 626 CH-BB79
• Duty Weight/Class: Standard Duty

Technical Specifications

• Bearing Type: Plain Bearing
• Corner Type: Square
• Function: Energy Transfer
• Height: 4-1/2 inches
• Hinge Type: Full Mortise Hinge
• Knuckles: 5
• Pin Type: Non Removable
• Power Transfer/Wires: 4-26 gauge
• Tip Style: Standard
• Width: 4-1/2 inches
• Amp Draw: 1.0 Amps @ 24VDC Continuous
• Contact Rating: In-rush Current N/C and N/O 0.5 A max
• Electrical Rating: Electrical Switch Rating 50-100 mA, 30VDC
