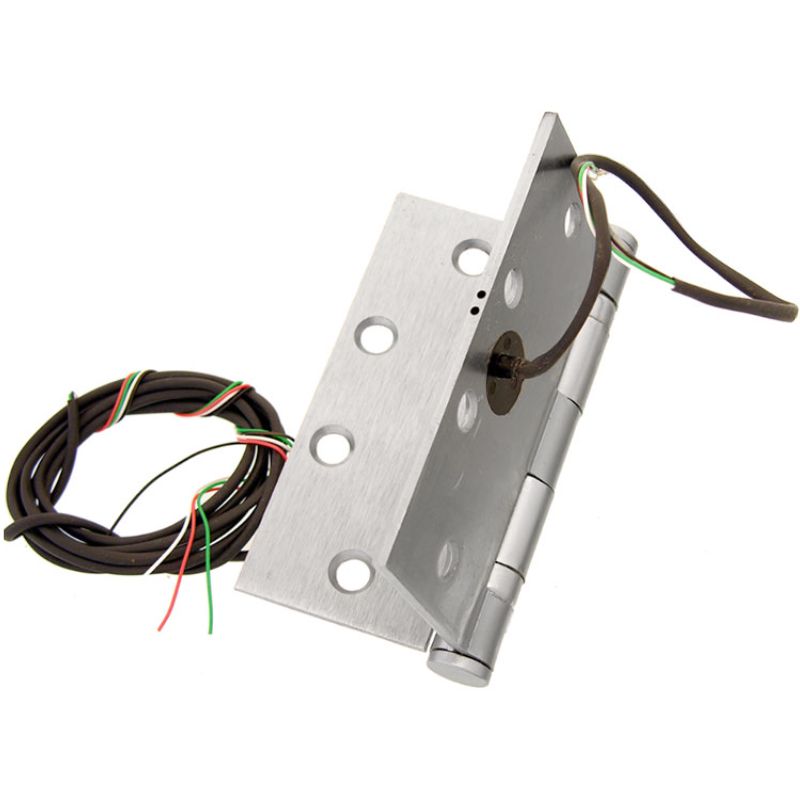

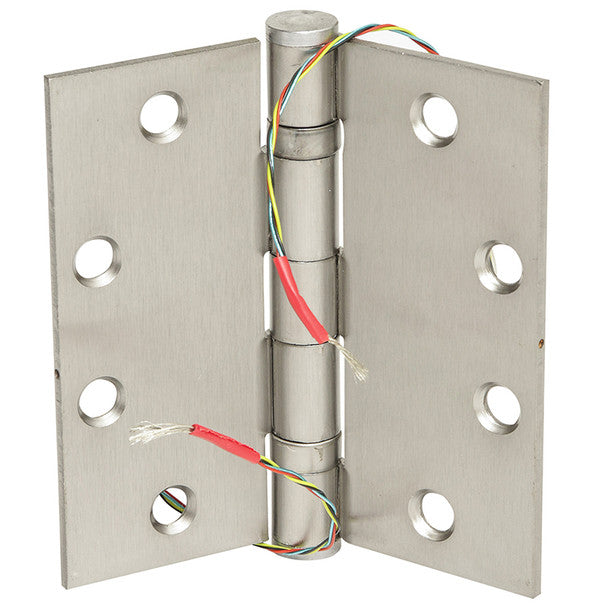

Command Access Technologies ETH4W4545-626CH-BB68 Energy Transfer Hinge 4-1/2 inch x 4-1/2 inch

Product Description

The Command Access Technologies ETH4W4545-626CH-BB68 Energy Transfer Hinge is designed to provide efficient low-voltage power transfer without visible wiring. This hinge measures four and one-half inches by four and one-half inches and features a five knuckle heavy weight design. It includes four wires and is constructed from twenty-six gauge steel for reliability in energy transfer.

• Five knuckle heavy weight design
• Includes four wires for power transfer
• Constructed from robust twenty-six gauge steel

Product Highlights

This hinge is suitable for commercial applications and serves as an ideal solution for transferring power from frame to door systems.

Product Information

Standard Information

• Manufacturer: Command Access Technologies
• SKU: ETH4WH4545 626 CH-BB68

Technical Specifications

• Hinge Type: Full Mortise
• Knuckles: Five
• Pin Type: Non-Removable
• Tip Style: Standard
• Base Material: Steel
• Height: Four and one-half inches
• Width: Four and one-half inches
• Power Transfer: Two eighteen gauge and two twenty-six gauge wires
