Command Access Technologies DS1 Delay/Sequencer Board 12-24VDC

Product Description

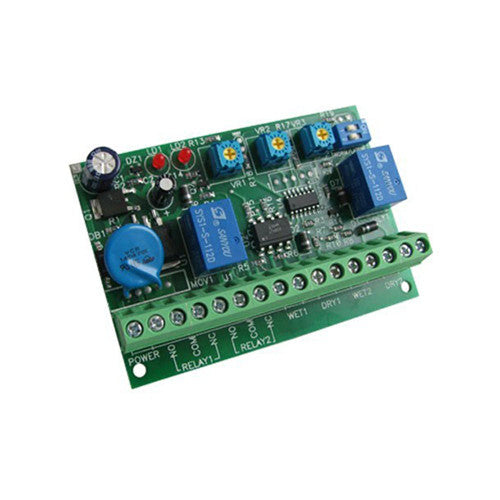

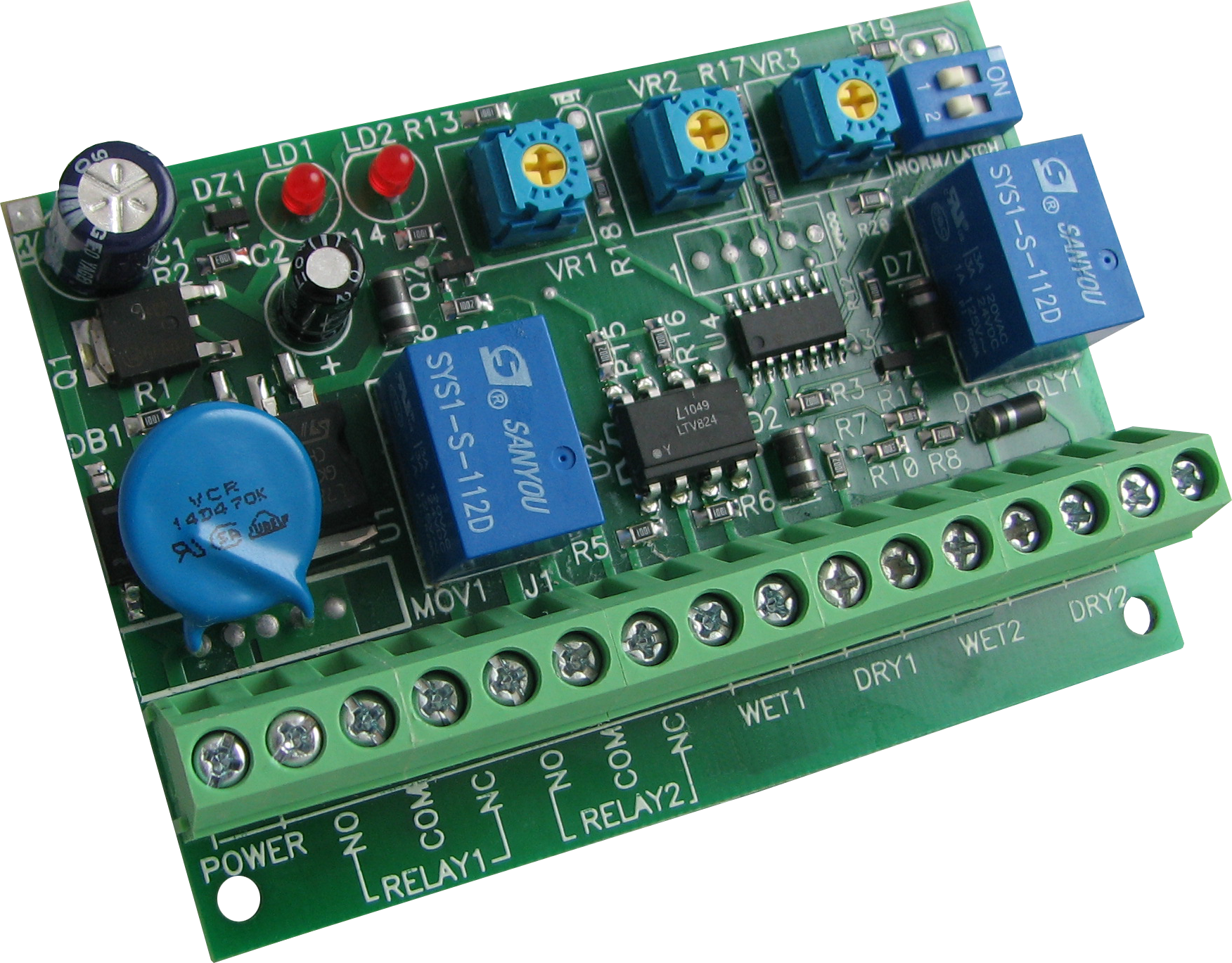

The Command Access Technologies DS1 is a delay and sequencer board designed for use with electrified locking devices. This board allows for the activation of an automatic door operator after a set delay time. It is suitable for door sequencing applications and any situation requiring a timing relay. The board can operate with wet or dry inputs and has an additional input for connecting to a phone.

• Bi-directional sequencing mode
• Three adjustable delays, up to thirty seconds
• Compatible with wet or dry inputs

Product Highlights

This delay/sequencer board is efficient for managing automatic doors and locks.

Product Information

Standard Information

• Brand: Command Access
• MPN: DS1

Technical Specifications

• Operating Voltage: 12 / 24 Volts, AC / DC
• Current Draw: 18 mA standby, 40 mA maximum
• Response Time: 0.3 seconds
• Inputs: 2 wet + 2 dry contacts (3-30 V AC/DC, optically isolated, non-polarity sensitive)
• Relay Output: 2 x Form C (SPDT)
• Relay Contact Rating: 3 amps at 20 VDC
• Time Delays: DOR #1 adjustable from 1 to 30 seconds
• Electrical Life: 100,000 operations at rated capacity
