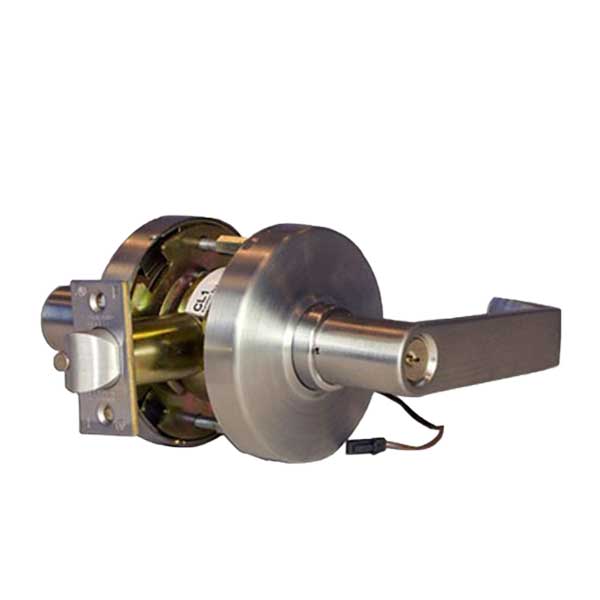

Command Access Technologies CL180LE-EU-L6-613-SFIC-RX Low-Energy Cylindrical Clutch Lever Set

Product Description

The Command Access Technologies CL180LE-EU-L6-613-SFIC-RX is a low-energy cylindrical lock designed for continuous duty settings. This lock features an input voltage range of eleven to thirty volts AC/DC, providing versatility for various applications. As a Fail Safe model, it offers reliable operation without the common problems found in motor-driven locksets.

• Fail Safe design ensures security with an electronically locked outside lever.
• Latchbolt can be retracted using a key from the outside or with the lever from the inside.
• Inside lever allows for immediate egress in emergencies.

Product Highlights

This lock is ideal for high-traffic areas where quick access is needed without compromising safety. It meets ANSI/BHMA Series Grade 1 standards, assuring durability and performance.

Product Information

Standard Information

• Lock Function: EL - Fail Safe - Electronically Locked - Unlocks upon Power Loss
• Handing: Non-Handed

Technical Specifications

• Door Thickness: 1-9/16 inches to 2-1/8 inches
• Backset: 2-3/4 inches
• Latch: 1 inch Throw
• Levers: L6 Lever
• Cylinder: Schlage 'C' Keyway
• Finish: 626 - Satin Chrome
• Operating Voltage: 24VAC/DC
• Surge Voltage: 400 mA @12V, 200 mA @ 24V
• Holding Current: 30 mA
• Solenoid Coil Resistance: 159.5
• Wire Raceway: 3/8 inches
• Certifications: ANSI/BHMA Grade 1, UL Listed 3-hour fire rating
• Warranty: 3-Year Manufacturer Warranty
