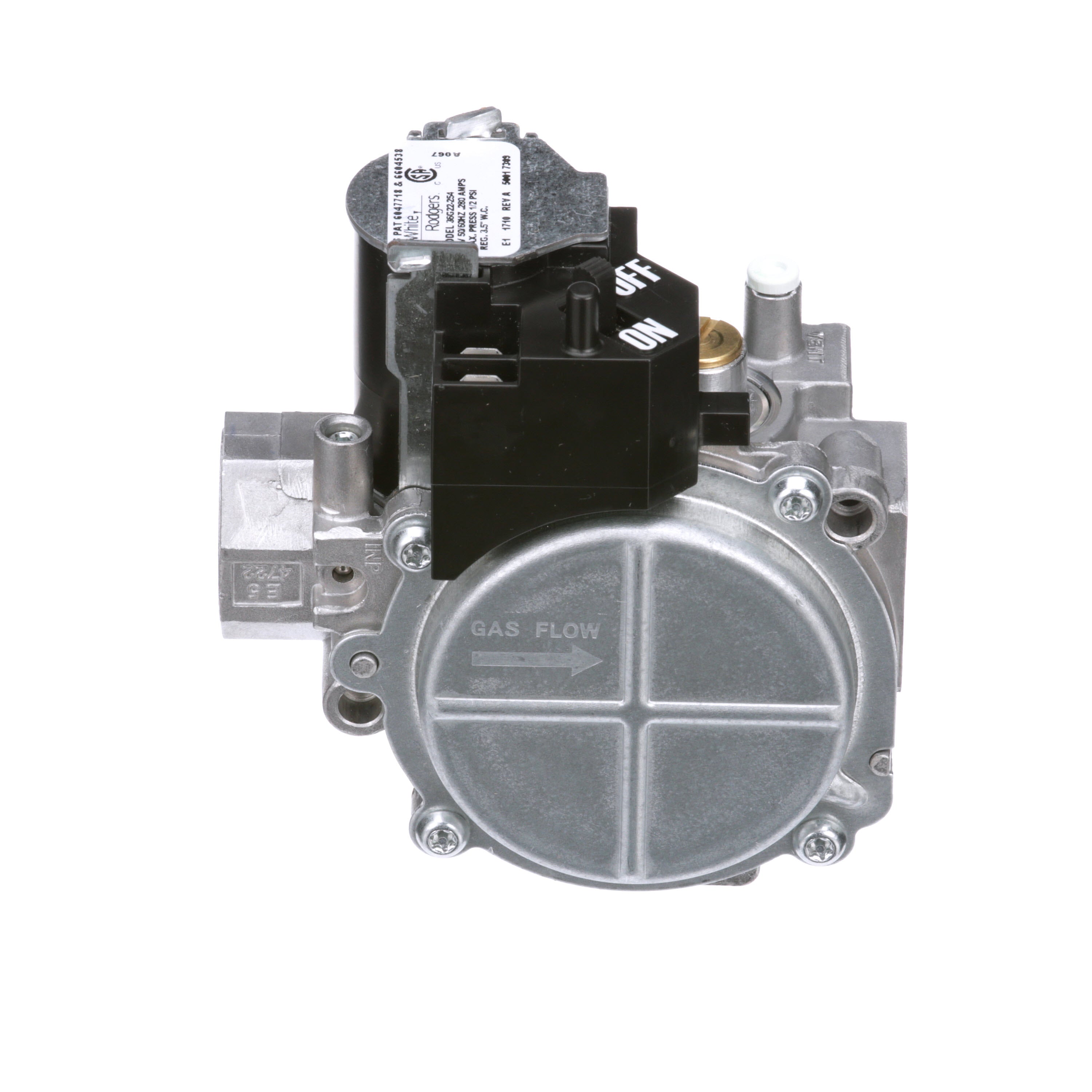

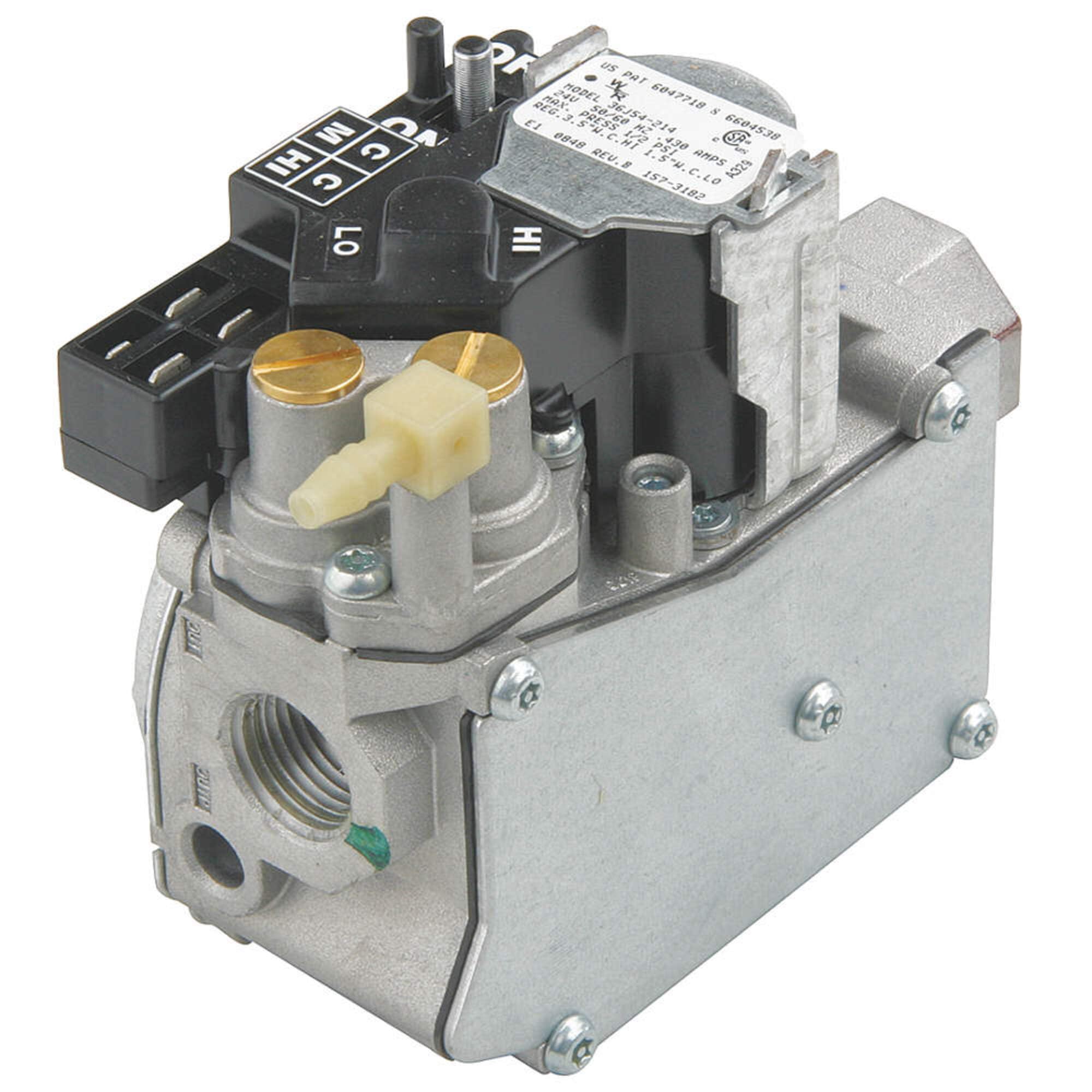

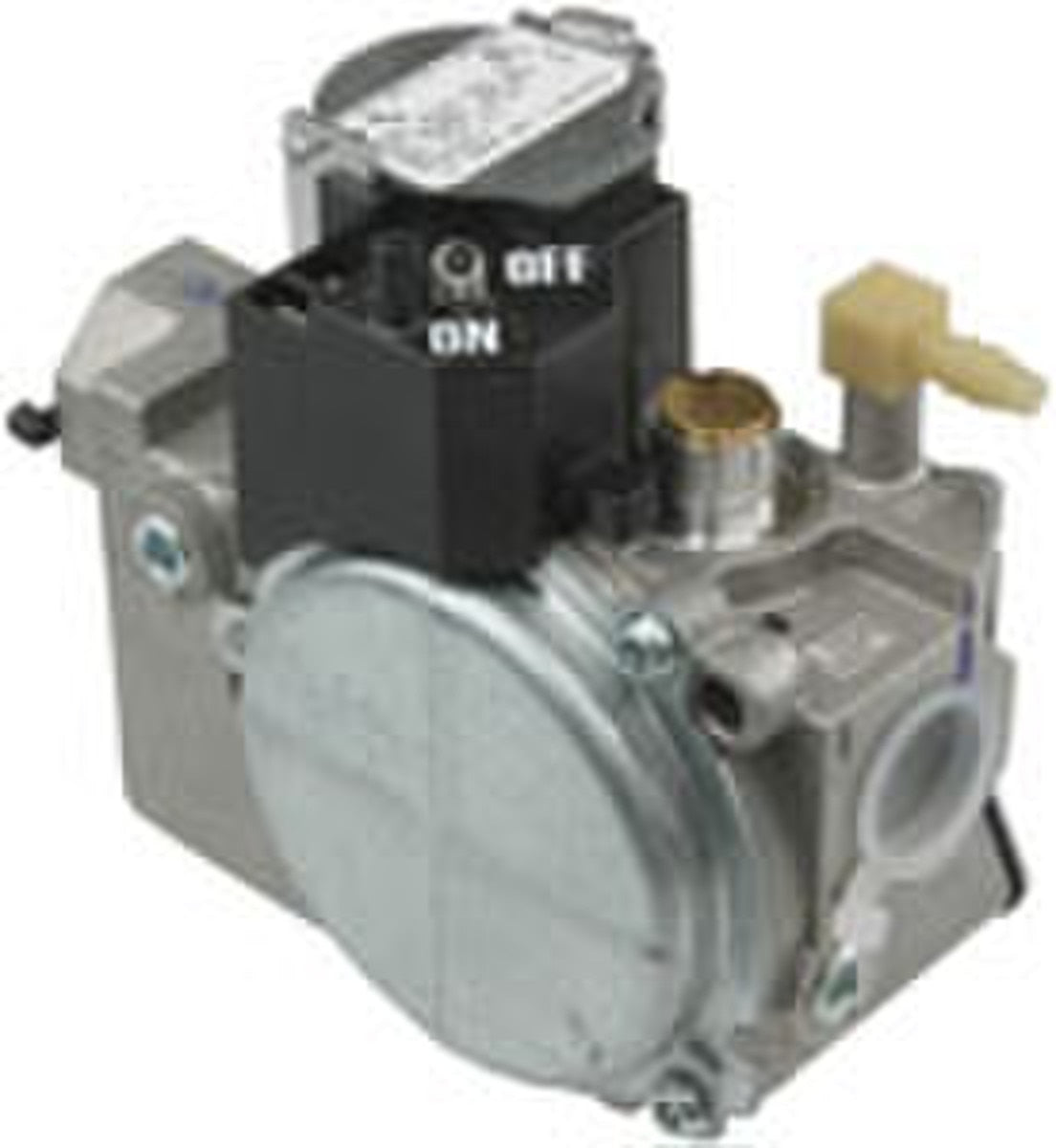

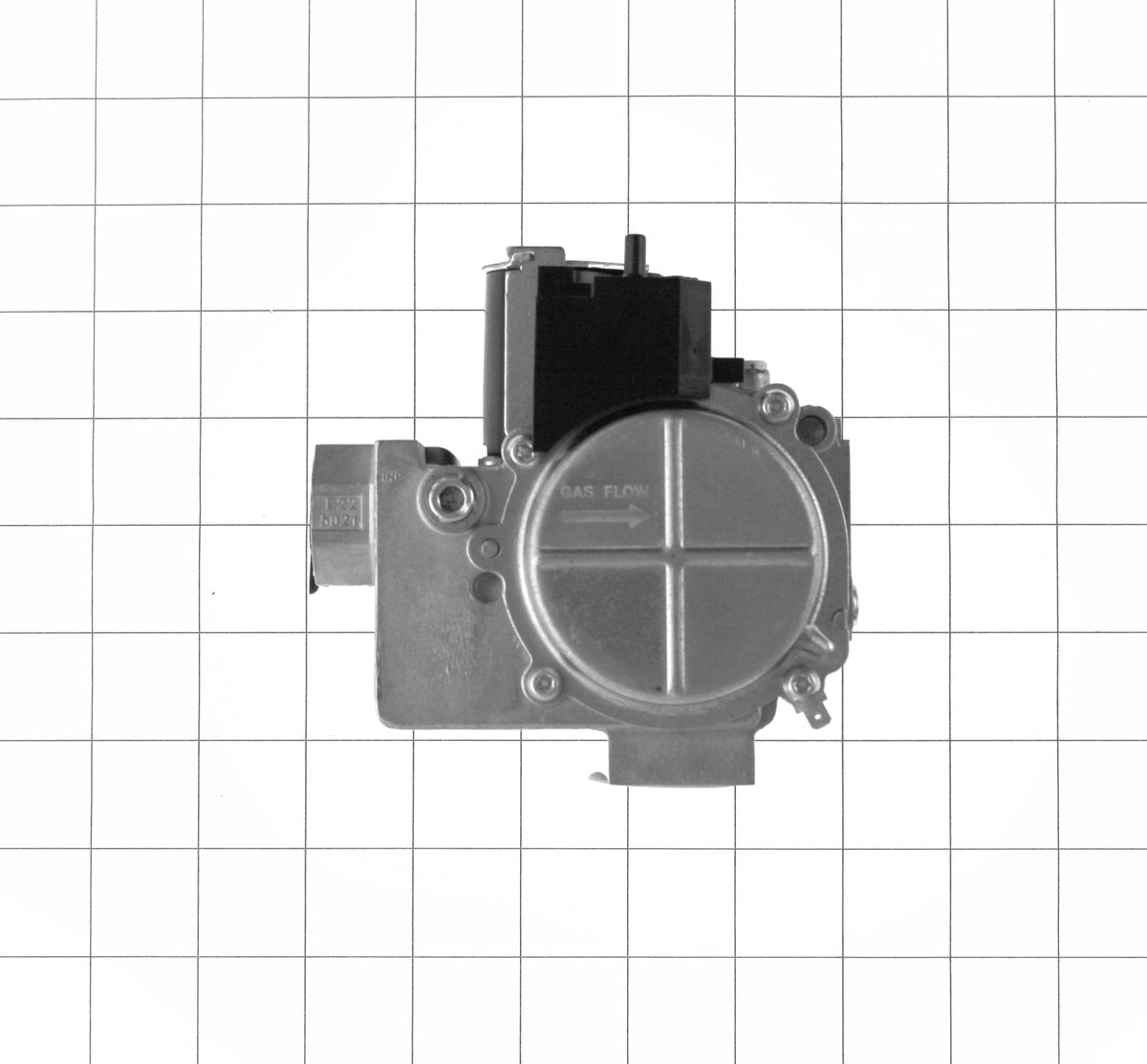

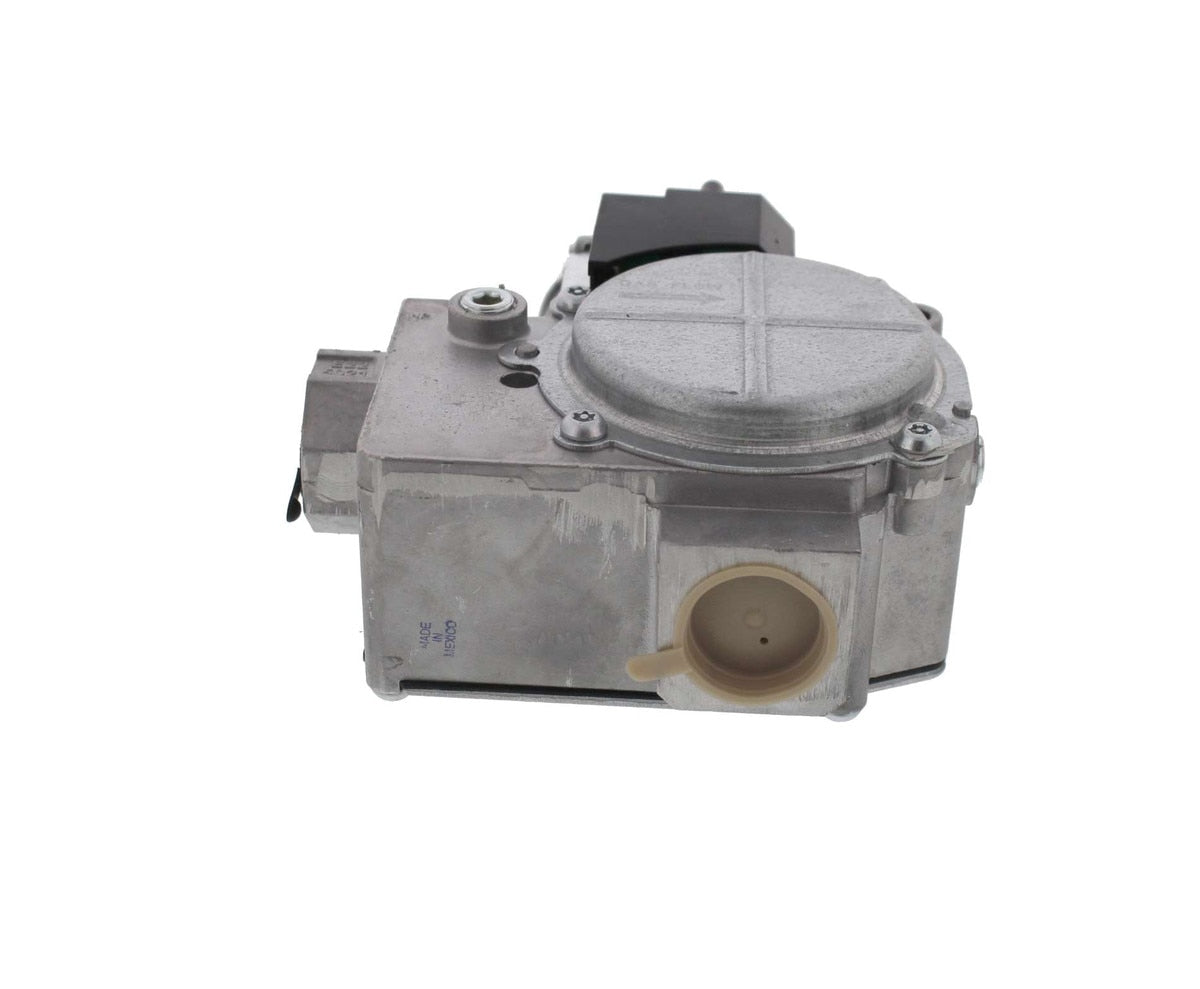

White-Rodgers 36J24-614 Series 36J Slow Opening Single Stage Natural/Lp Gas Valve 1/2 inches x 1/2 inches

Product Description

The White-Rodgers 36J24-614 Series 36J is a slow opening single stage natural/LP gas valve with a 1/2" x 1/2" pipe size and a temperature range of -40 Degree - 175 Degree F. Designed for use with non-piloted intermittent ignition systems (Direct Spark Ignition, Hot Surface Ignition). This gas valve is also convertible for natural/LP gases.

• Slow Opening
• Single Stage
• Natural/Lp Gas Valve

Product Highlights

This White-Rodgers gas valve features a compact design and is suitable for use with HSI/DSI systems. It includes inlet and outlet screens, a built-in pressure tap and quick-connect terminals.

Product Information

Standard Information

• Brand: WHITE-RODGERS
• Manufacturer Part Number: 36J24-614
• Country of Origin: United States

Technical Specifications

• Brand: White-Rodgers
• Series: 36J
• Type: Slow Opening Single Stage Natural/Lp Gas Valve
• Pipe Size: 1/2" x 1/2"
• Temperature Range: -40 Degree - 175 Degree F
• Voltage: 24Vac
• Item Number: 36J24-614
• Gas Type: NG/LP
• Coil Volts: 24VAC
• Inlet Size: 1/2 in
• Outlet Size: 1/2 in
• BtuH Capacity: 140,000
• Ignition Type: Electronic
• LP Conversion Kit: Yes
• Inlet Pressure Tap: Yes
• Ambient Temp. Range: -40 Degrees to 175 Degrees F
• Max. Inlet Pressure: 1/2 psi
• Amps AC: 0.3A
• Applicable Standard: CSA (Canada and US)
• Application: Non-Piloted Intermittent Ignition System, Smaller Size and High Efficiency Gas System
• End Connection: Female Threaded x Female Threaded
• End To End Distance: 4.693 Inch
• Exclusions: Reducer Bushing Kit, Side Tap, Standing Pilot with Line Interrupter, Intermittent/Proven Pilot
• Inclusions/Features: Convertible Natural/Liquid Propane Gas, Liquid Propane Conversion Kit, Filter Screen, Inlet/Outlet Pressure Tap, HSI/DSI System
• Input Supply Rating: 24 Volt AC 50/60 Hertz 0.3 Amp
• Nominal Size: 1/2 Inch x 1/2 Inch
• Pressure Rating: 1/2 PSI
• Temperature Rating: -40 to 175 Deg F
• Nominal Capacity: 140000 Btu/hr for Natural Gas of 0.64 Specific Gravity 1000 Btu/hr, 226800 Btu/hr for LP Gas of 1.53 Specific Gravity 2500 Btu/hr at 1 in Pressure Drop
• Voltage Rating: 24 VAC at 50/60 Hz
• Amperage Rating: 0.3 A
• Electrical Connection: 1/4 in Quick-Connect Terminal
• Product Type: Gas Valve
• Model: 36J24-614
• Manufacturer: White Rodgers
• Compatible Model: 36J24-614
• Model Number: 36J24-614
• Flow Direction: 90° Bottom Outlet
• Frequency: 50 Hz, 60 Hz
• Fuel Type: Liquid Propane, Natural Gas
