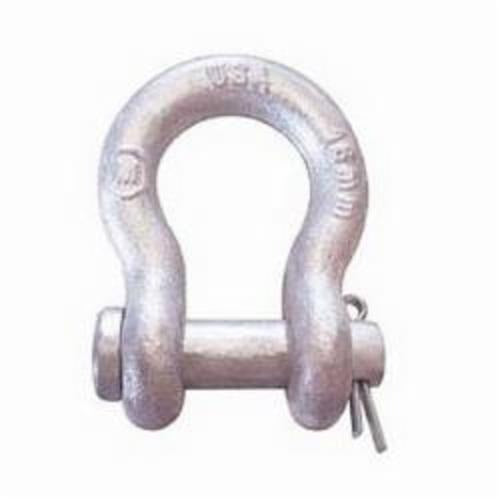

Columbus Mckinnon m352g Anchor Shackle 6.5 Ton 3/4 in

Product Description

The COLUMBUS MCKINNON m352g is a Super Strong anchor shackle rated for 6.5 ton working load, built for heavy rigging and lifting applications across industrial, construction, and marine environments. The body is carbon steel with a galvanized finish for corrosion resistance. The 7/8 inch diameter round pin is alloy steel, providing the shear strength needed for demanding load cycles. Installation is handled by riggers and industrial mechanics who need a reliable, code-compliant connection point between wire rope, chain, or synthetic slings and a fixed anchor. The galvanized coating reduces maintenance requirements in outdoor or high-humidity environments.

This shackle is suited for overhead lifting, load securement, and rigging assemblies in residential construction, commercial jobsites, and marine or offshore settings. The 3/4 inch body size and 1-1/4 inch jaw opening accommodate common rigging hardware. The Super Strong designation indicates a higher working load limit relative to standard shackles of equivalent body size, making it appropriate for applications where load ratings are tight or frequently near rated capacity.

Key Features

• 6.5 ton working load limit for heavy rigging tasks
• Carbon steel body with galvanized finish for corrosion protection
• Alloy steel round pin, 7/8 inch diameter, for high shear resistance
• 1-1/4 inch jaw opening accommodates standard rigging hardware
• Super Strong body geometry delivers higher WLL versus standard shackles at the same size
• 2-1/8 inch eye outer size and 1-3/4 inch inner width for compatibility with typical lifting eyes and links

Compatibility

Designed as an OEM-style anchor shackle for use with wire rope, chain, and synthetic sling rigging assemblies where a 3/4 inch, 6.5 ton rated connection point is required.

Installation Notes

Installation should be performed by qualified riggers following applicable ASME B30.26 standards for rigging hardware. Always inspect the shackle body, pin, and threads for damage or corrosion before each use. Ensure the round pin is fully seated and moused or secured per rigging specifications before applying load. Never exceed the rated working load limit and never side-load an anchor shackle unless the manufacturer has provided a rated value for that orientation.

Technical Specifications

• Item Type: Shackle
• Type: Super Strong Anchor
• Size: 3/4 inches
• Load Capacity: 6.5 ton
• Pin Type: Round
• Pin Diameter: 7/8 inches
• Pin Material: Alloy Steel
• Body Material: Carbon Steel
• Finish: Galvanized
• Inner Length: 2.813 inches
• Inner Width: 1-3/4 inches
• Eye Outer Size: 2-1/8 inches
• Opening Size: 1-1/4 inches

Standard Information

• Brand: COLUMBUS MCKINNON
• Manufacturer Part Number: m352g
