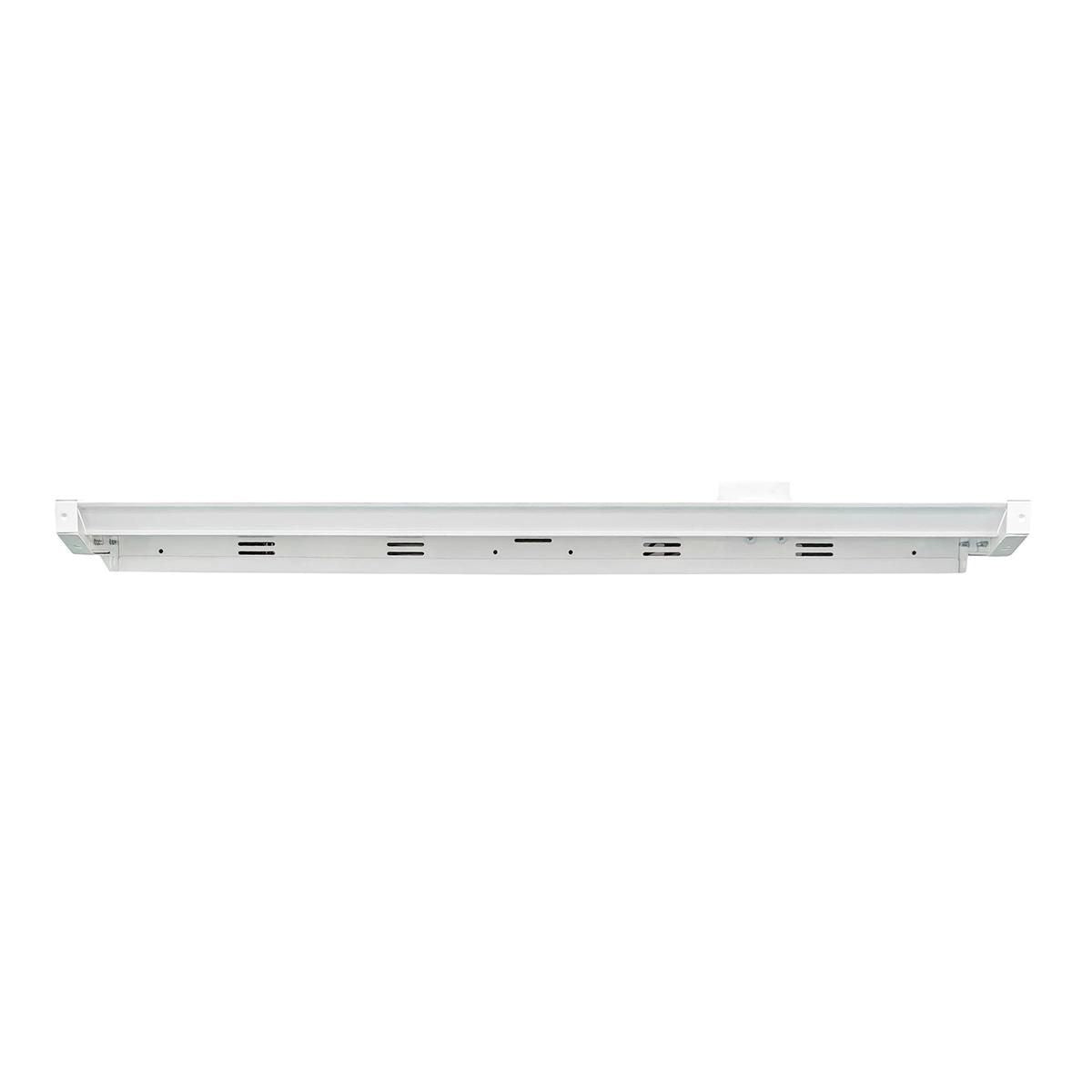

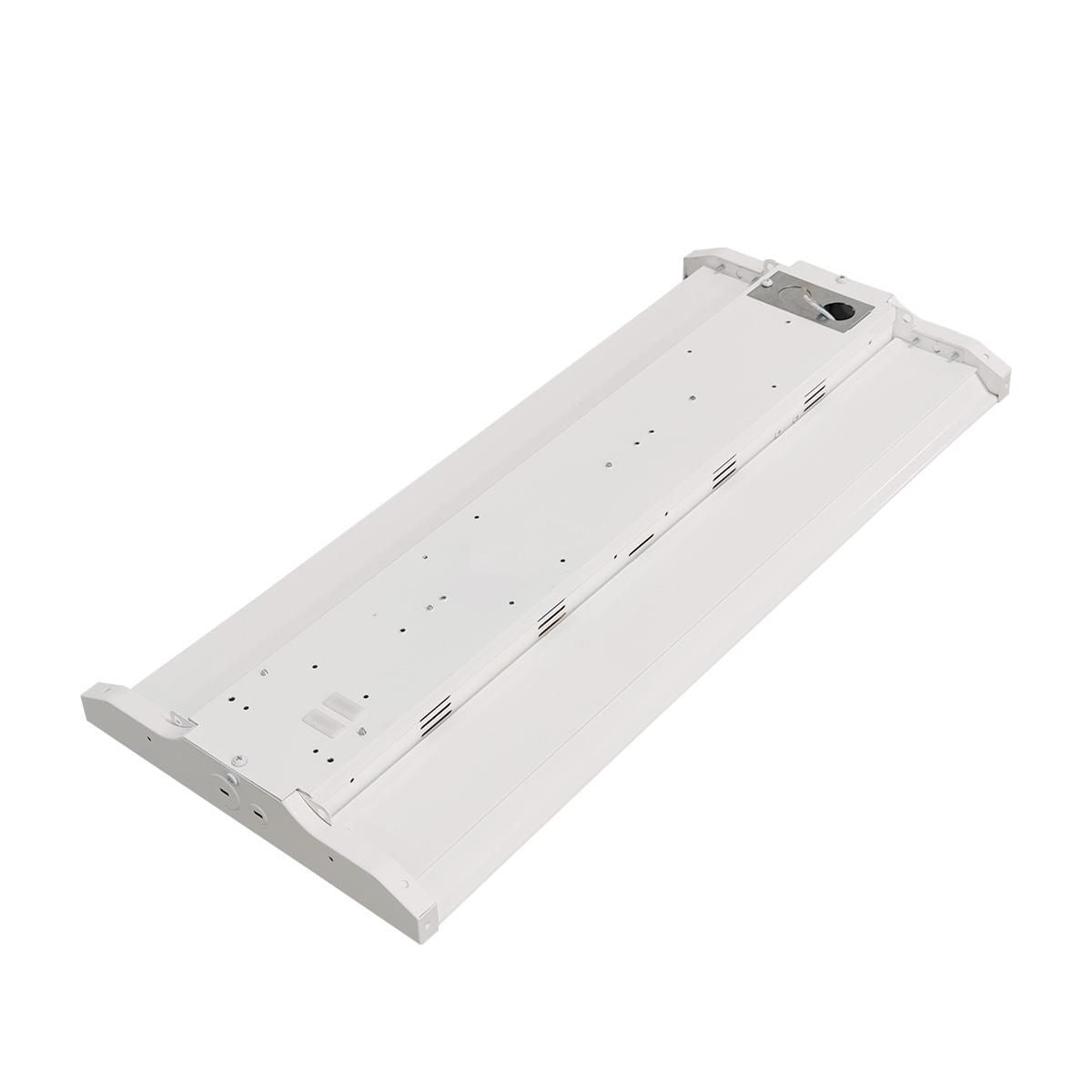

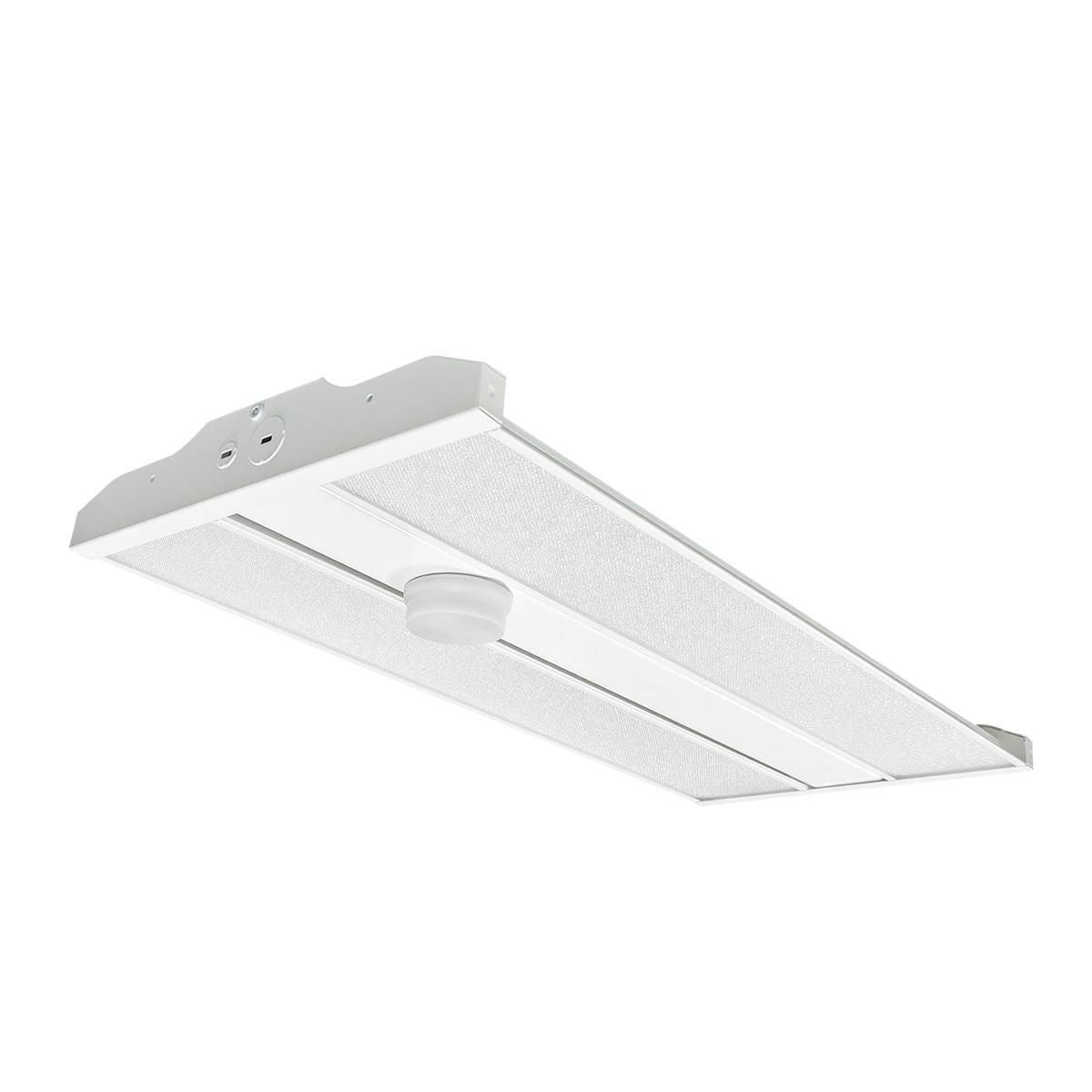

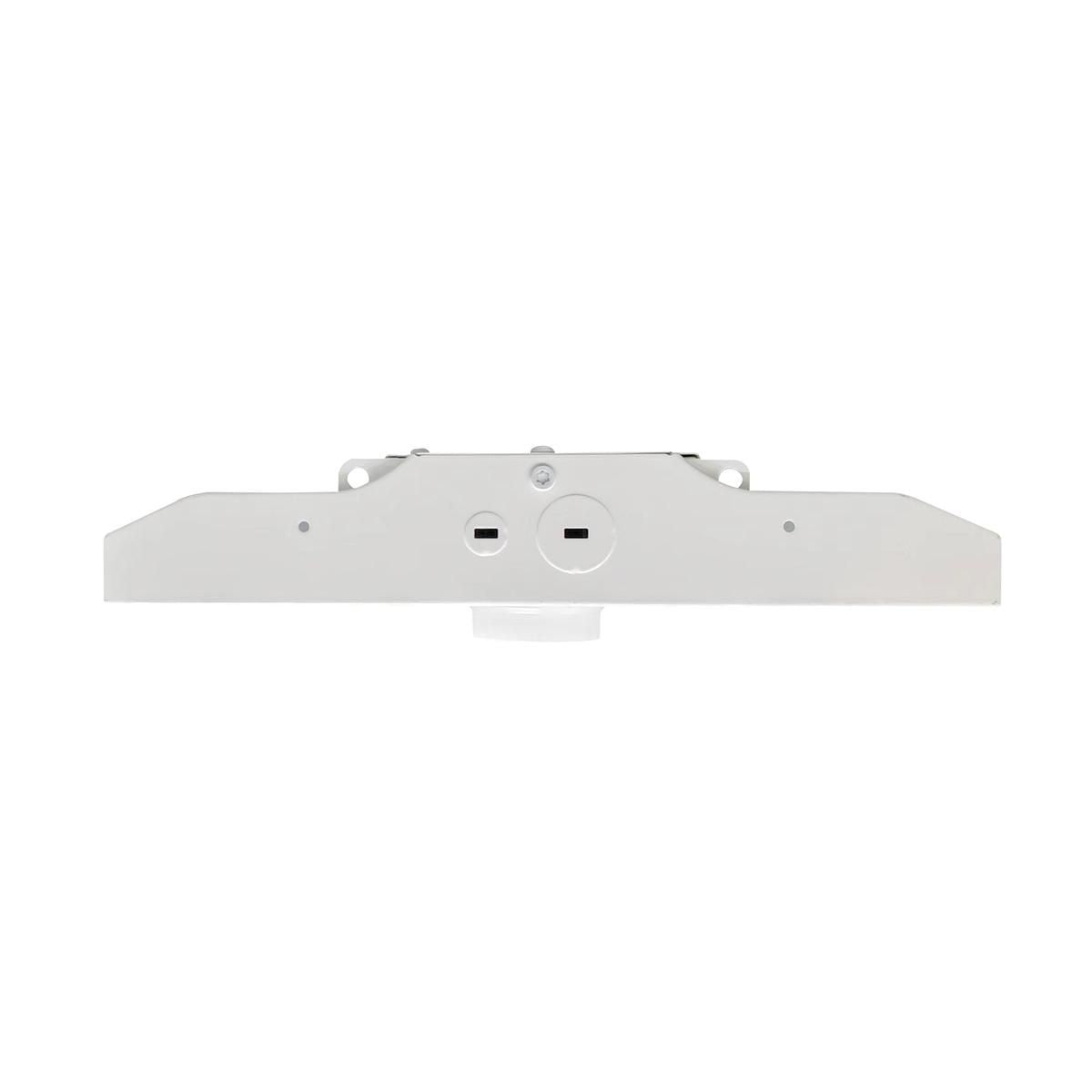

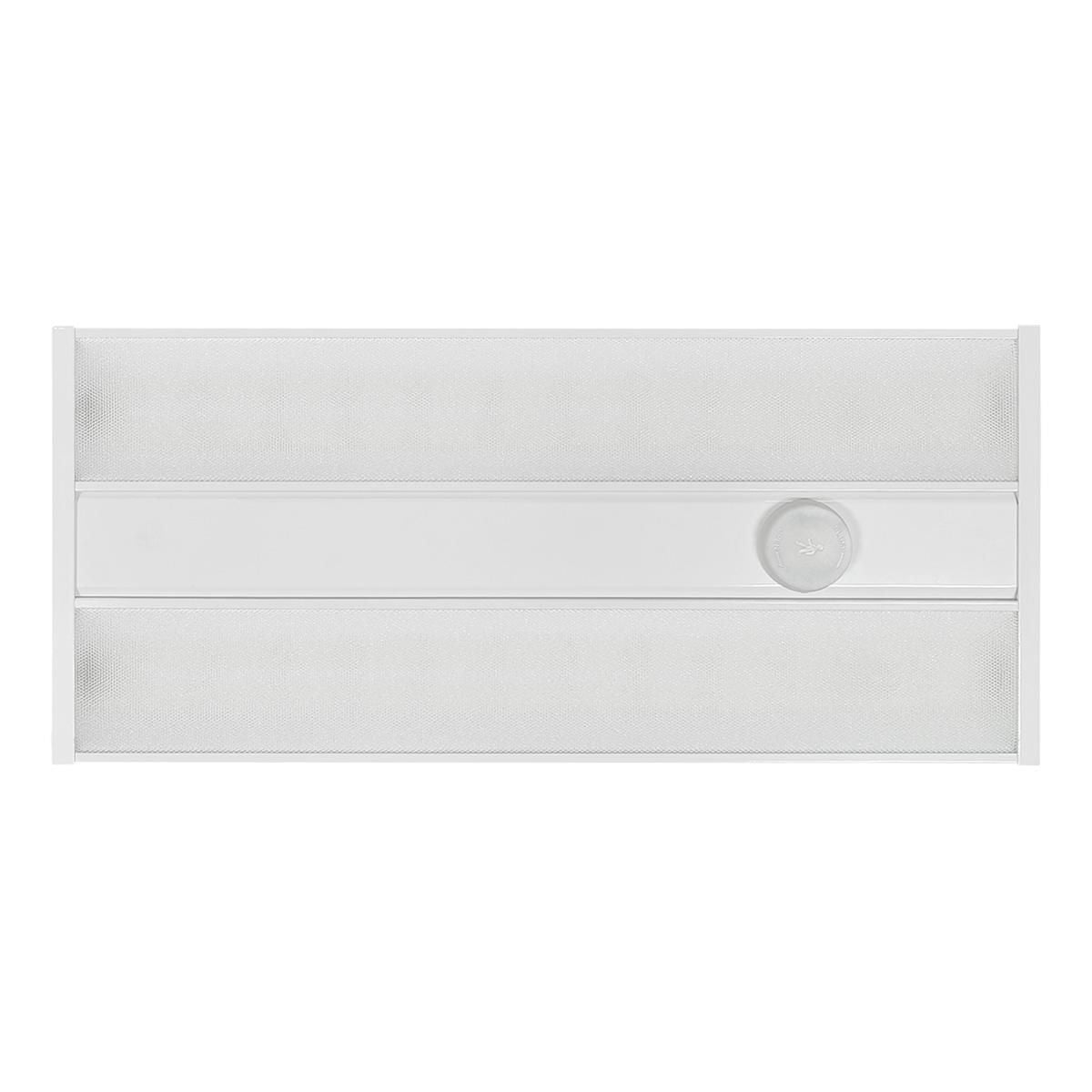

Columbia Lighting CLH1-LSCS-EDU-MD LED Linear High Bay

Product Description

The Columbia Lighting CLH1-LSCS-EDU-MD is a LED linear high bay luminaire with adjustable lumen output and color temperature options. This fixture is designed to operate within a voltage range of one hundred twenty to two hundred seventy-seven volts and features zero to ten-volt dimming.

• Adjustable lumen and color temperature settings.
• Compatible with a voltage range of 120-277V with dimming capabilities.
• Constructed with durable steel housing.

Product Highlights

This product is suitable for new and retrofit projects, providing versatile mounting options such as pendant, suspended, or surface installations.

Product Information

Standard Information

• Brand: Columbia Lighting
• MPN: CLH1-LSCS-EDU-MD

Technical Specifications

• Input Voltage: 120-277V
• Wattage Range: 92-242W
• Selectable Lumens: 15000, 18000, 24200
• Color Temperature Options: 4000K, 5000K
• CRI: 80
• Dimming: 0-10V Dimming to 10%
• Coverage Area: Medium, Wide, Narrow
• Mounting Options: Pendant, Suspended, Surface
• Housing Material: Steel
