Color Match Pool Fittings 10-PTD-103A

Product Description

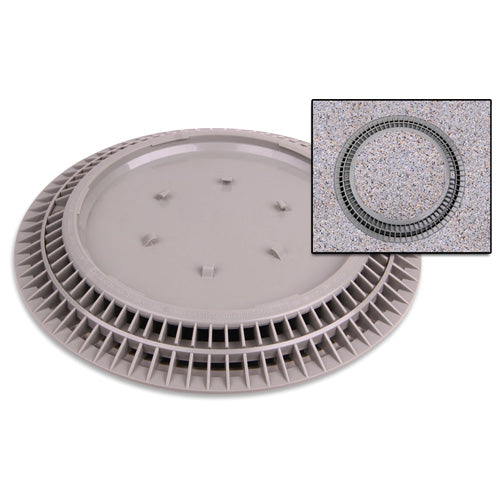

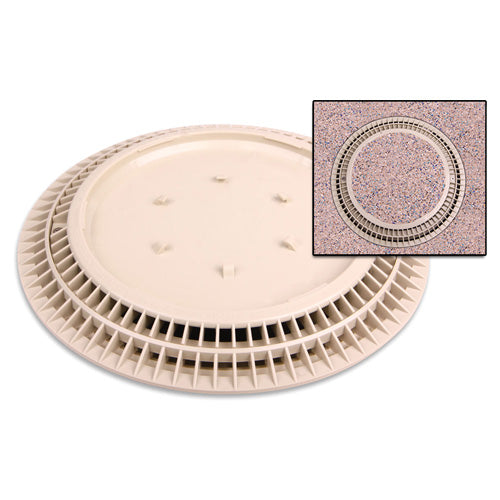

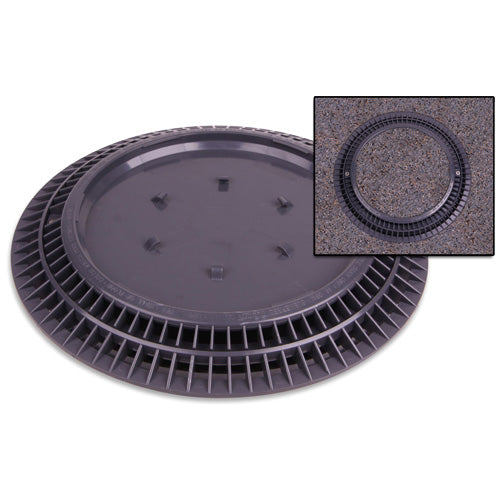

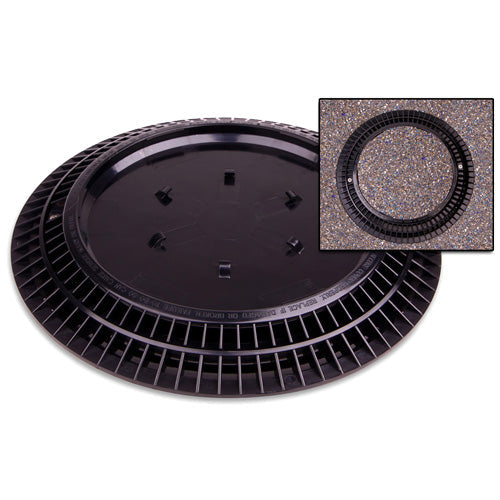

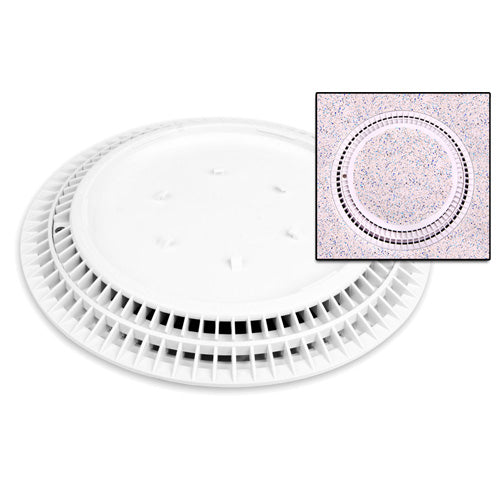

The Color Match Pool Fittings 10-PTD-103A is a ten-inch round pebble top drain cover suitable for use on pool floors or walls. This drain cover allows for a seamless finish by enabling the application of plaster, aggregate, or tile to match the pool design. The cover is made from UV-resistant ABS materials for durability. It accommodates single or multiple drain configurations. The design includes a gradual slope to enhance user comfort and reduce obstructions from pool cleaners.

• Size: 10 inches
• VGB Safety Certified
• ANSI/APSP-16 2011 Compliant

Product Highlights

This drain cover provides a functional and aesthetic solution for pool areas.

Product Information

Standard Information

• Country of Origin: USA
• Color: Clear

Technical Specifications

• Flow Rates (2 Inch Pipe - Floor): 180 GPM
• Flow Rates (2 Inch Pipe - Wall): 152 GPM
• Flow Rates (3 Inch Pipe - Floor): 184 GPM
• Flow Rates (3 Inch Pipe - Wall): 144 GPM
• VGB Safety Certified: Yes
• ANSI/APSP-16 2011 Compliant: Yes
• NSF/ANSI 50-2015 Compliant: Yes
• Made in the USA: Yes
