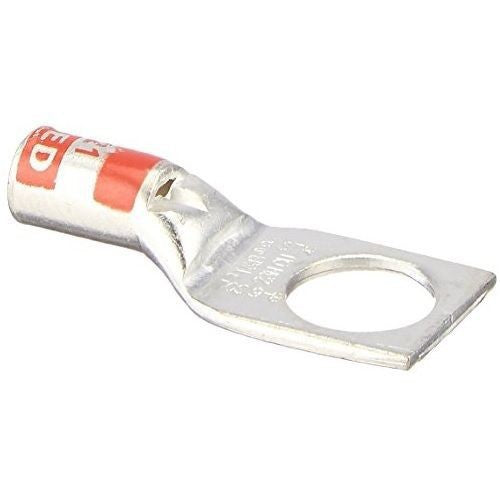

Color-Keyed 54930BE copper one-hole lug 35KV 8 AWG 1/4 inch bolt size

Product Description

The COLOR-KEYED 54930BE is a copper one-hole lug with a long barrel and blind end, designed for a maximum of 35KV. It accommodates wire size 8 AWG and has a 1/4 inch bolt size. The lug is tin plated and features a die code of 21 with a red die color code. It is UL and CSA approved.

• Accommodates wire size 8 AWG
• Features a die code of 21
• Maximum voltage of 35KV

Product Highlights

The COLOR-KEYED 54930BE one-hole lug is ideal for creating reliable electrical connections in various applications. Its durable construction and precise design ensure optimal performance.

Product Information

Standard Information

• Brand: COLOR-KEYED
• Manufacturer Part Number: 54930BE
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: 54930BE
• Manufacturer: ABB - Installation Products
• Brand: Color-Keyed
• Country of Origin: Mexico
• Made in USA: No
• Cable Size: 8 AWG
• Material: Copper
• Number of Holes: 1
• Standard: UL E9809
• UPC: 786210898254
• GTIN: 00786210898254
• Item Type: Long Barrel
• Stud Size: 1/4 in
• Voltage Rating: 35 kV
• Conductor Material: Copper
• Conductor Size: 8 AWG (Code), 14.9 KCMIL (Flex), 37/24 (Flex)
• Barrel Type: Long, Straight
• Pad Size: 0.65 Inch L x 0.44 Inch W x 0.08 Inch Thk
• Die Index: 21
• Overall Length: 1.65 Inch
• Approval: UL, CSA
• Includes: Blind End Inspection Hole
• RoHS: RoHS3 Compliant
• REACH: REACH 247 Compliant
• TSCA: TSCA Section 6(h) Compliant
• ETIM: EC001051 Tube cable lug for copper conductors
• Connecting angle: 180° (horizontal)
• Slender flange model: N
• Insulated: N
• With sight-hole: N
• Surface protection: Tinned
• Number of mounting holes: 1
• AWG size: 8
• Series: 54900
• Tongue Size: 0.65 in L x 0.42 in W x 0.08 in THK
• Tongue Style: Straight
• Type: 1-Hole
• Application: Used to provide a high degree of reliability in electrical wiring
• Standard & Approvals: UL 486A, UL 467, CSA C22.2 No. 65, CSA C22.2 No. 04, RoHS Compliant
• Barrel Size: 0.26 in Dia
• Barrel Style: Blind End/Long/Straight
• Conductor Type: Copper
• Die Code: 21
• Mounting Hole Size: 0.281 in
