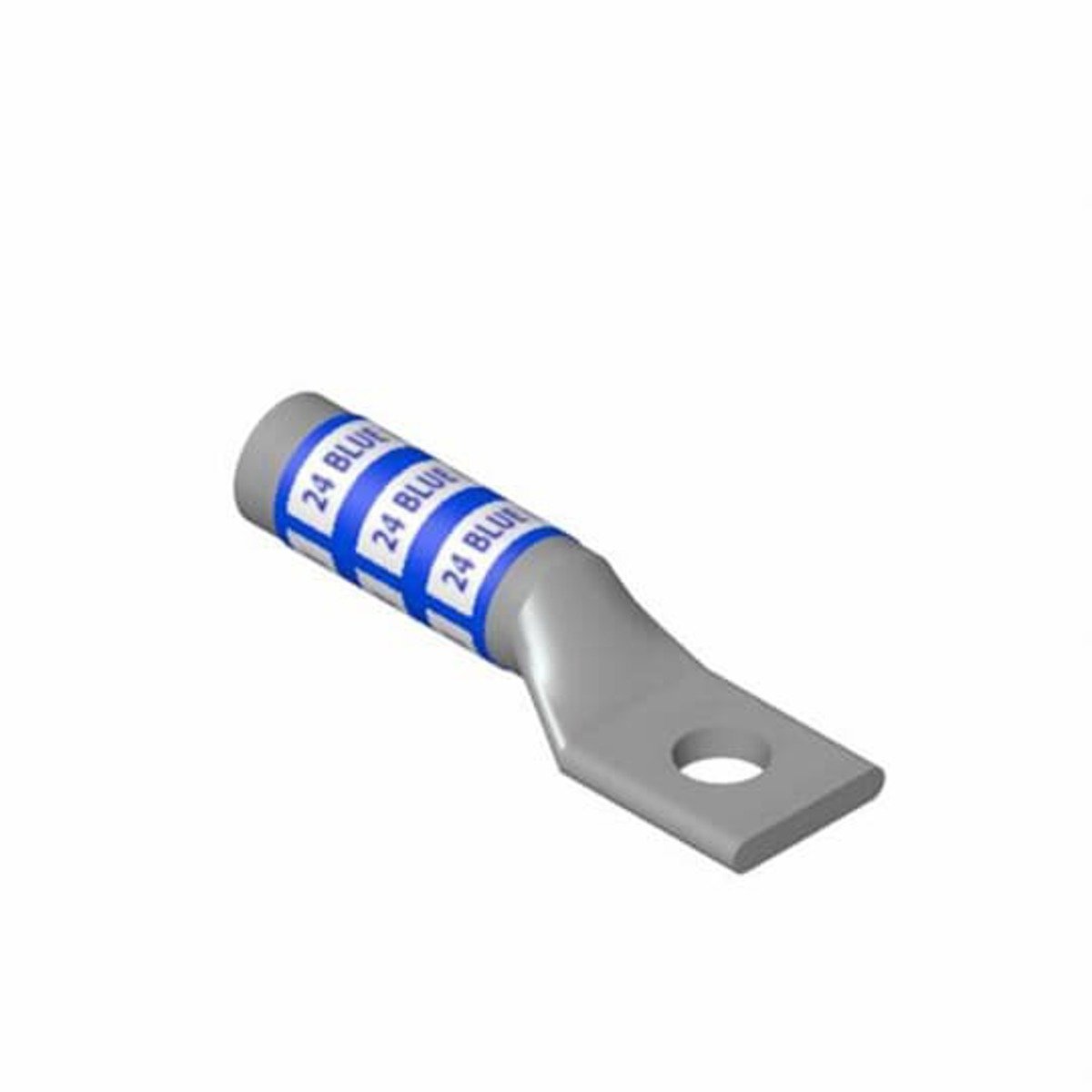

Color-Keyed 54918BE Copper One-Hole Lug, Long Barrel, Max 35kV, Wire Size 500 kcmil, 1/2 Inch Bolt Size

Product Description

The Color-Keyed Copper One-Hole Lug has the MPN 54918BE. This lug features a long barrel with a blind end, making it suitable for high voltage applications up to thirty-five kilovolts. It is designed to accommodate wire sizes of five hundred kcmil and has a half inch bolt size. The tin plating provides corrosion resistance for reliable connections, enhancing durability.

• Voltage Rating: Max 35 kV
• Wire Size: Rated for 500 kcmil
• Material: Constructed from copper

Product Highlights

This one-hole lug excels in electrical applications needing strong, reliable connections. Its long barrel design allows for efficient wire termination.

Product Information

Standard Information

• Catalog Number: 54918BE
• Manufacturer: ABB - Installation Products

Technical Specifications

• Country of Origin: Mexico
• Cable Size: 500 kcmil
• Color: Brown
• Material: Copper
• Number of Holes: 1
• Standard: UL E9809
• UPC: 786210898216
• GTIN: 00786210898216
• Item Type: Long Barrel
• Stud Size: 1/2 inch
• Voltage Rating: 35 kV
• Cross Reference Products: 3M 31066, ABBInstall 31066, ABBInstall 54918, ABBInstall 54918BE, ABBInstall CTL500L12, ABBInstall L500-48, Anderson VHCL-500-12, Burndy YA34N, CMC CCB50050, HublPower VHCL50012
