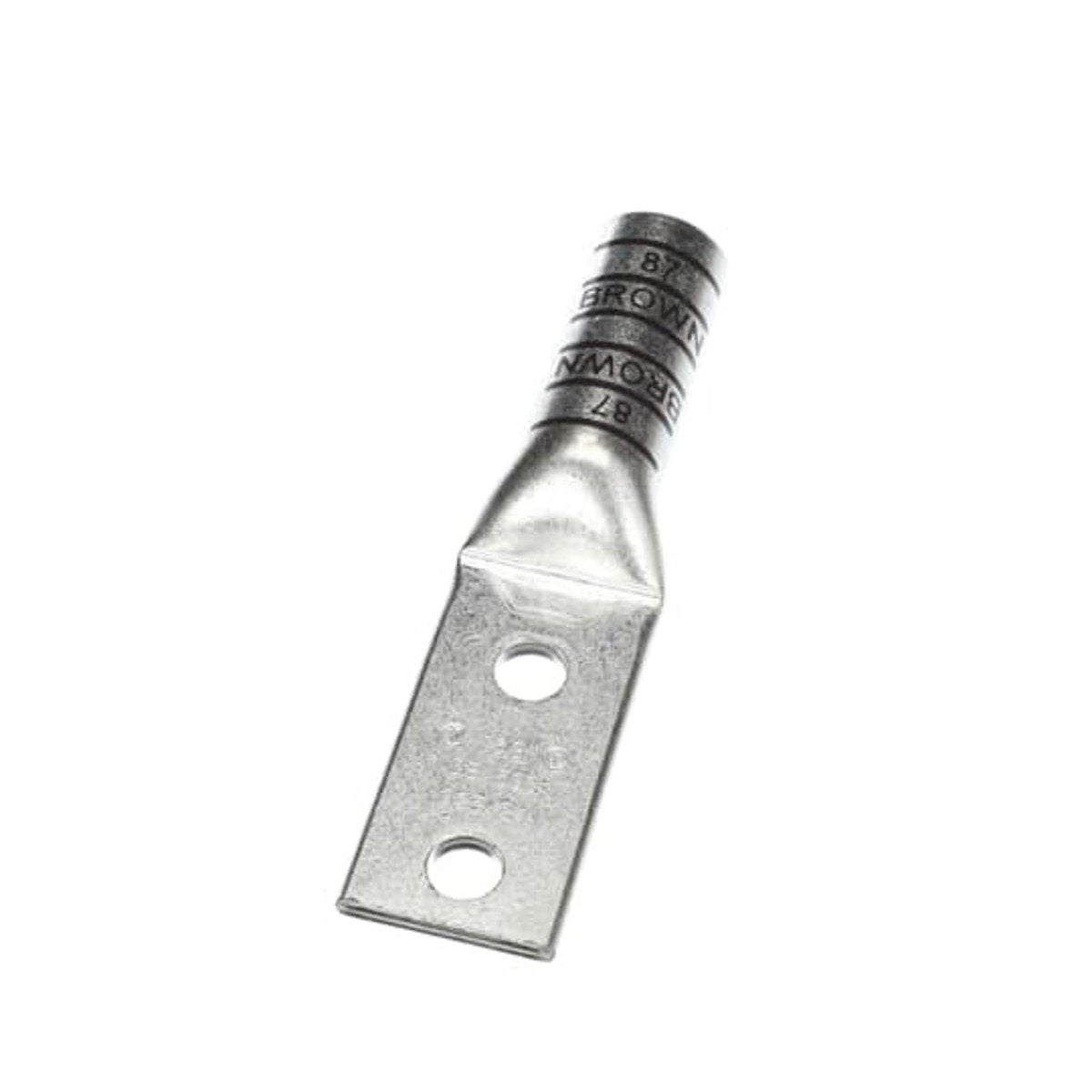

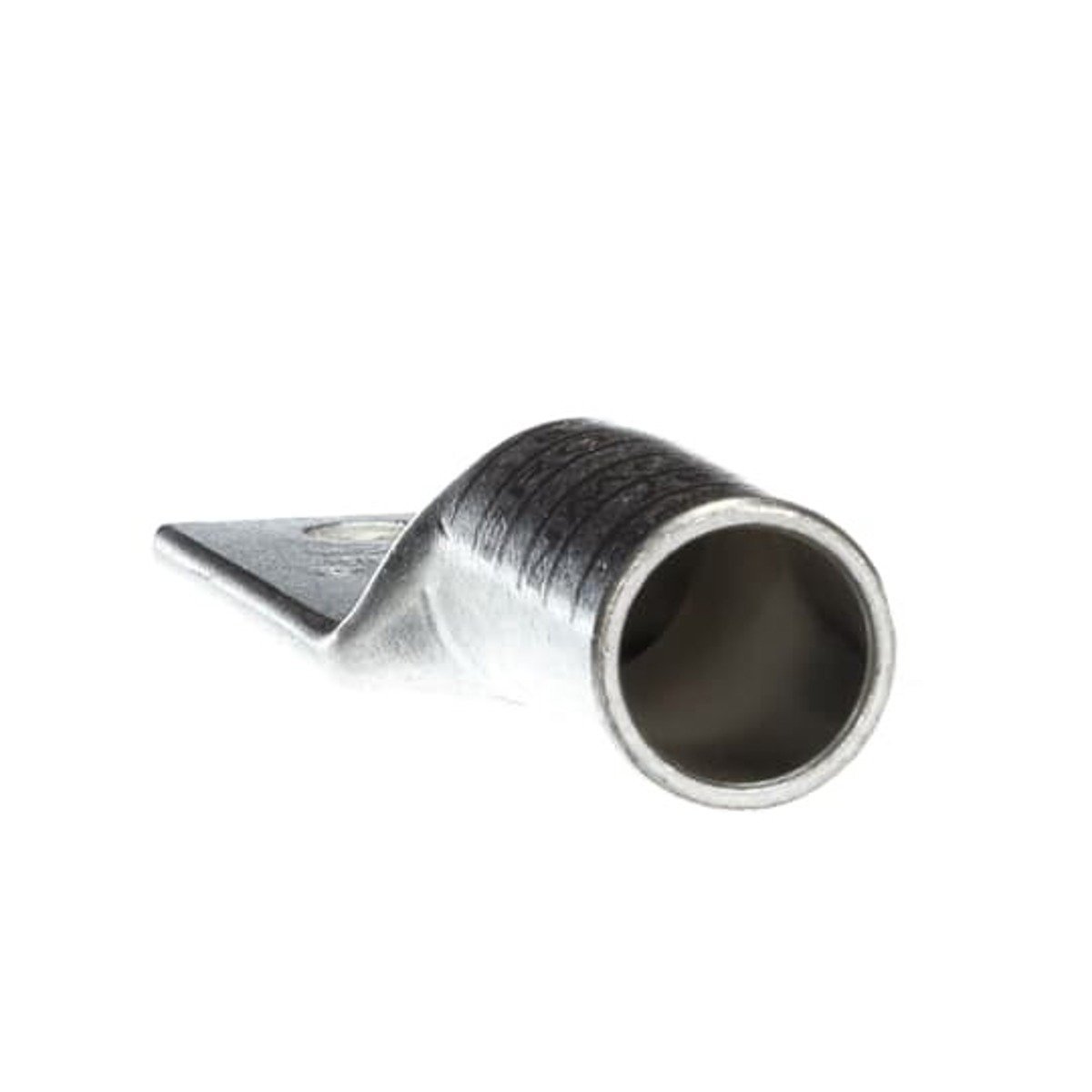

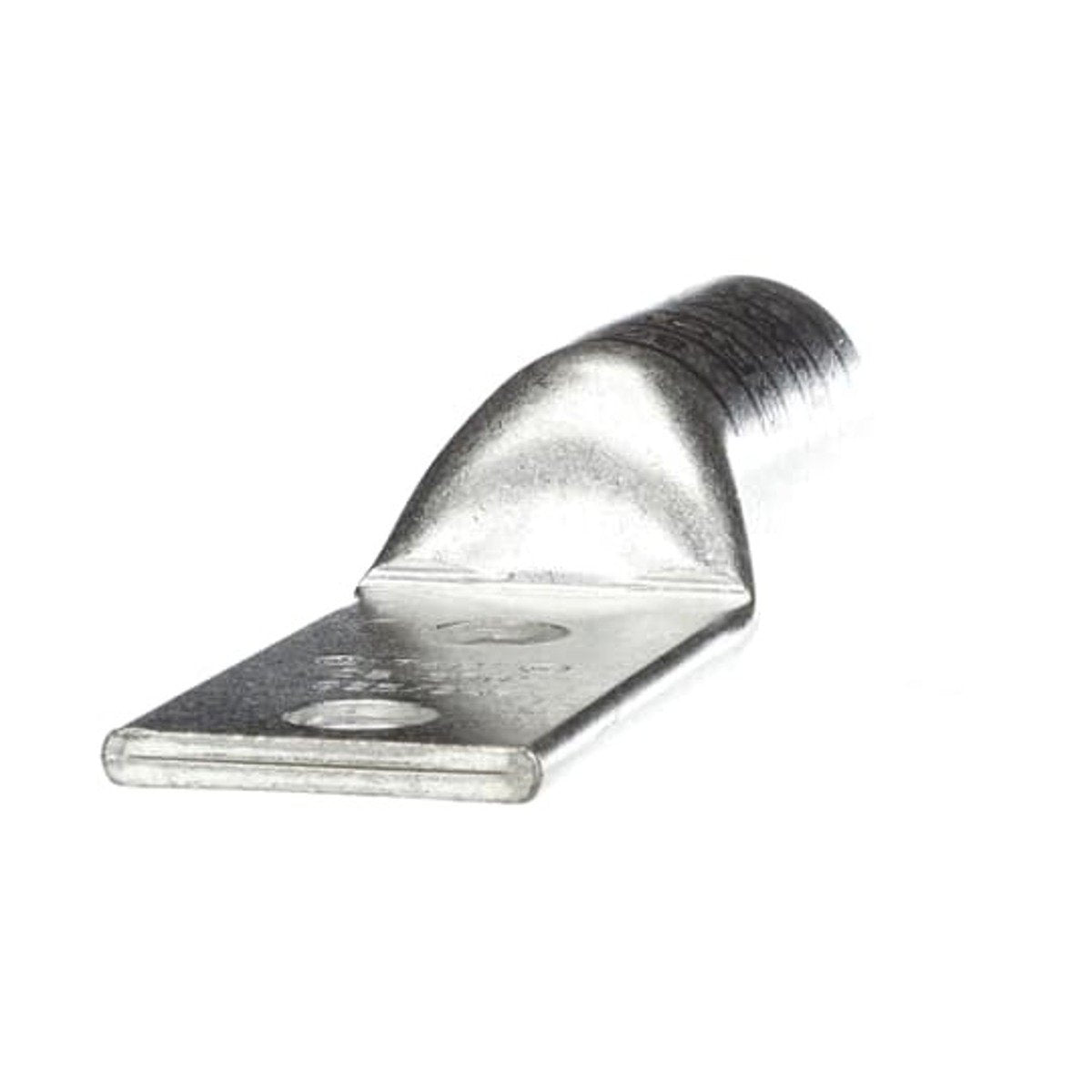

Color-Keyed 54876BE Compression Lug, 500 kcmil, 2-Hole, 1/2 Inch Stud, Replacement MPN 54876BE

Product Description

The Color-Keyed brand offers the 54876BE Compression Lug. This product is a 2-Hole Non-Insulated Compression Lug designed for a conductor size of five hundred kcmil. It has a die code of eighty-seven and is suitable for a half-inch stud. This compression lug provides a reliable connection in electrical applications.

• Two-hole design for secure mounting.
• Compatible with five hundred kcmil copper conductors.
• Utilizes a color-coded system for accurate installation.

Product Highlights

This compression lug is made from high-quality copper and features a tin-plated finish. It is designed for voltage ratings up to thirty-five kilovolts, ensuring durability and performance in demanding environments.

Product Information

Standard Information

• Brand: Color-Keyed
• Manufacturer: ABB - Installation Products

Technical Specifications

• Type: 2-Hole Non-Insulated
• Conductor Size: 500 kcmil
• Die Code: 87
• Stud Size: 1/2 in
• Voltage Rating: 35 kV
• Barrel Size: 1.1 in diameter
• Overall Length: 6 in
• Tongue Size: 3 in L x 1.61 in W x 0.22 in THK
• Material: Copper
• Color: Brown
• Mounting Hole Size: 0.531 in
• Specifications: 1-3/4 in stud hole spacing, tin plated
