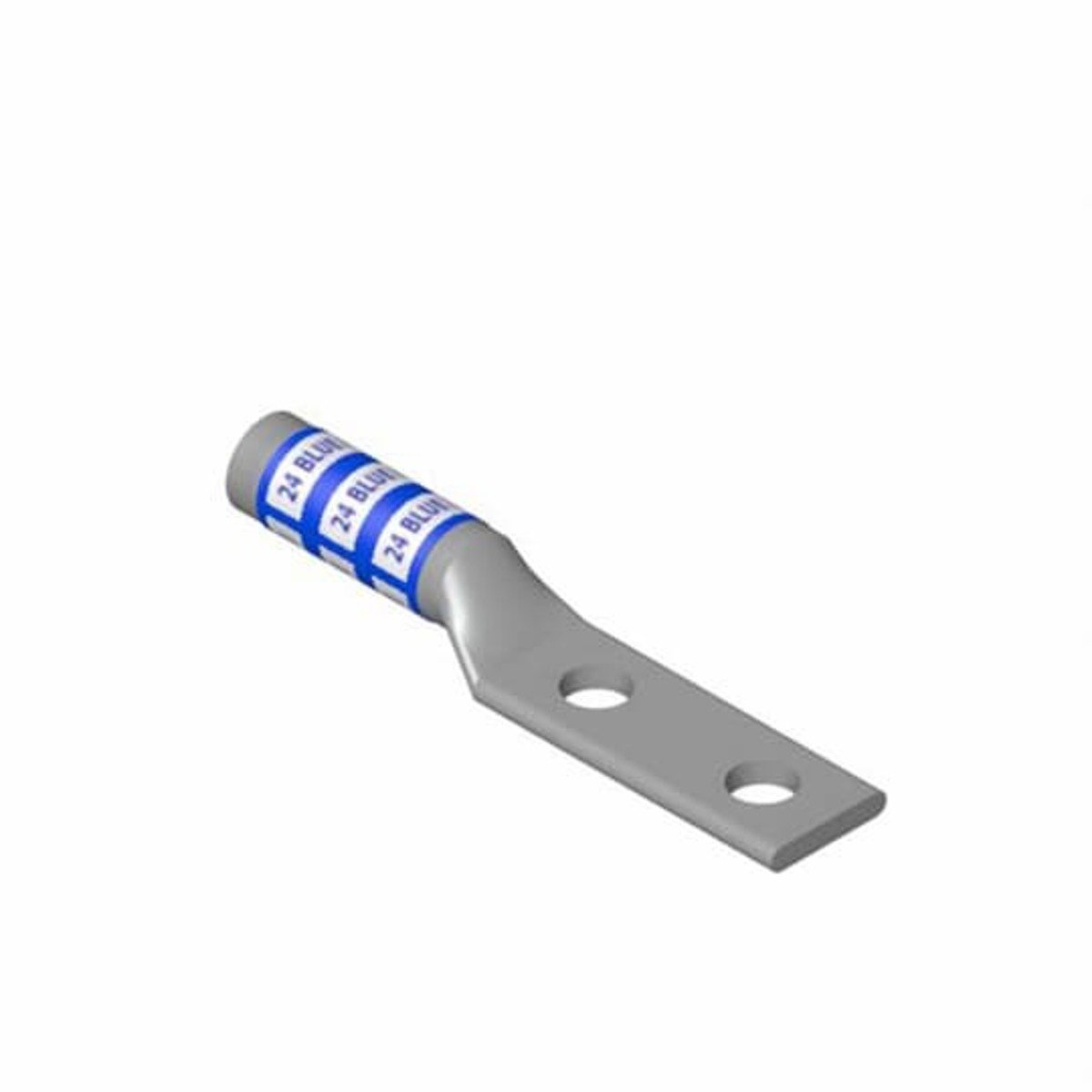

Color-Keyed 54870BE LUG COMPRESSION 300 KCMIL COPPER 66 1/2 IN

Product Description

The Color-Keyed 54870BE is a compression lug designed for use with 300 kcmil copper conductors. This product is suitable for heavy-duty applications and features a 2-hole non-insulated design. The lug is compatible with a variety of compression tools, ensuring a secure and reliable connection.

• Features a color-coded system for easy tool and die matching
• Made of high conductivity copper with a tin-plated finish
• Voltage rating of 35 kV for robust electrical performance

Product Highlights

Ideal for electrical connections requiring strong and durable lugs.

Product Information

Standard Information

• Brand: Color-Keyed
• Manufacturer: ABB - Installation Products

Technical Specifications

• Type: 2-Hole Non-Insulated
• Conductor Size: 300 kcmil
• Stud Size: 1/2 in
• Die Code: 66
• Overall Length: 5.23 in
• Barrel Diameter: 0.85 in
• Tongue Size: 3 in L x 1.25 in W x 0.15 in THK
• Voltage Rating: 35 kV
• Material: Copper
• Color: White
• Mounting Hole Size: 0.531 in
• Country of Origin: Mexico
