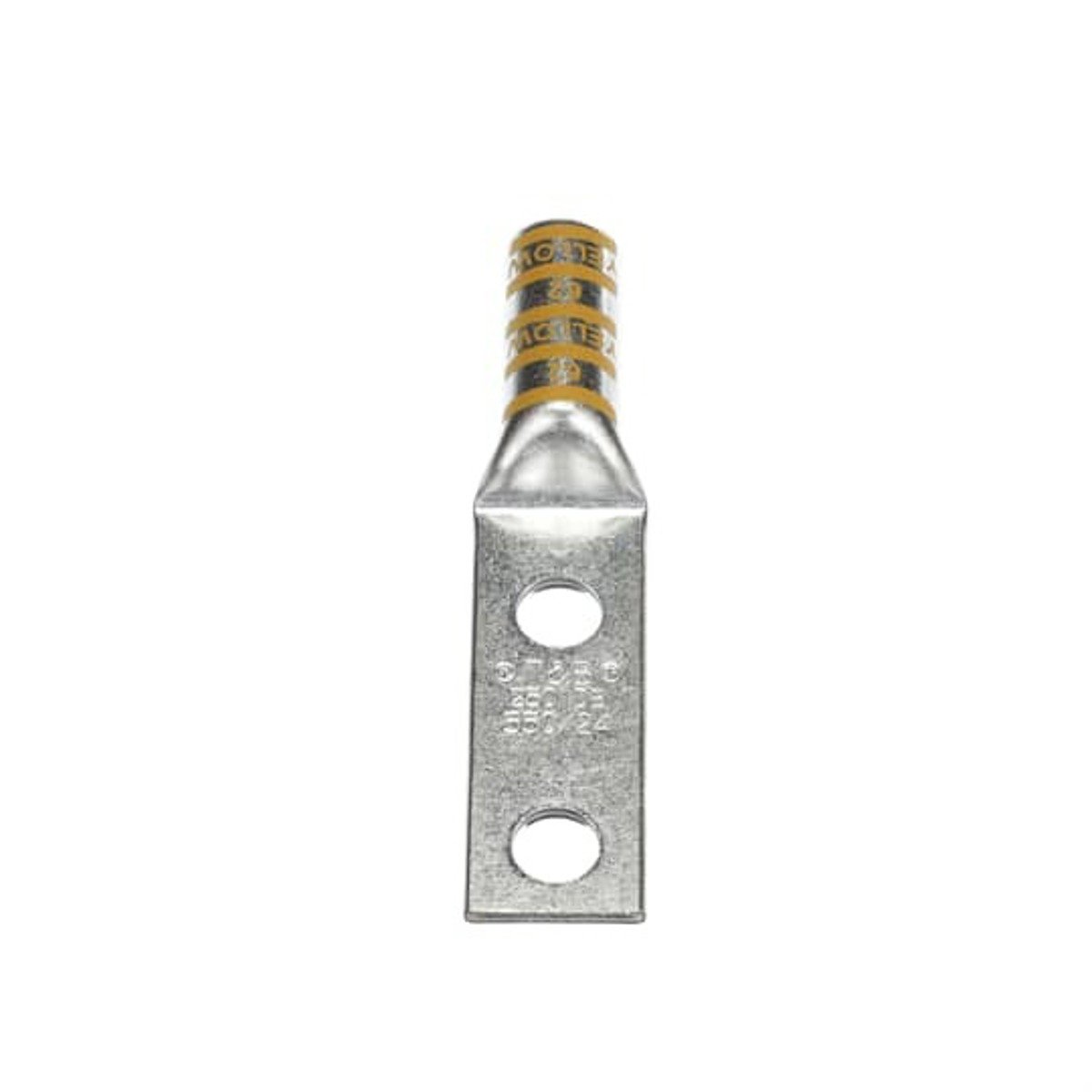

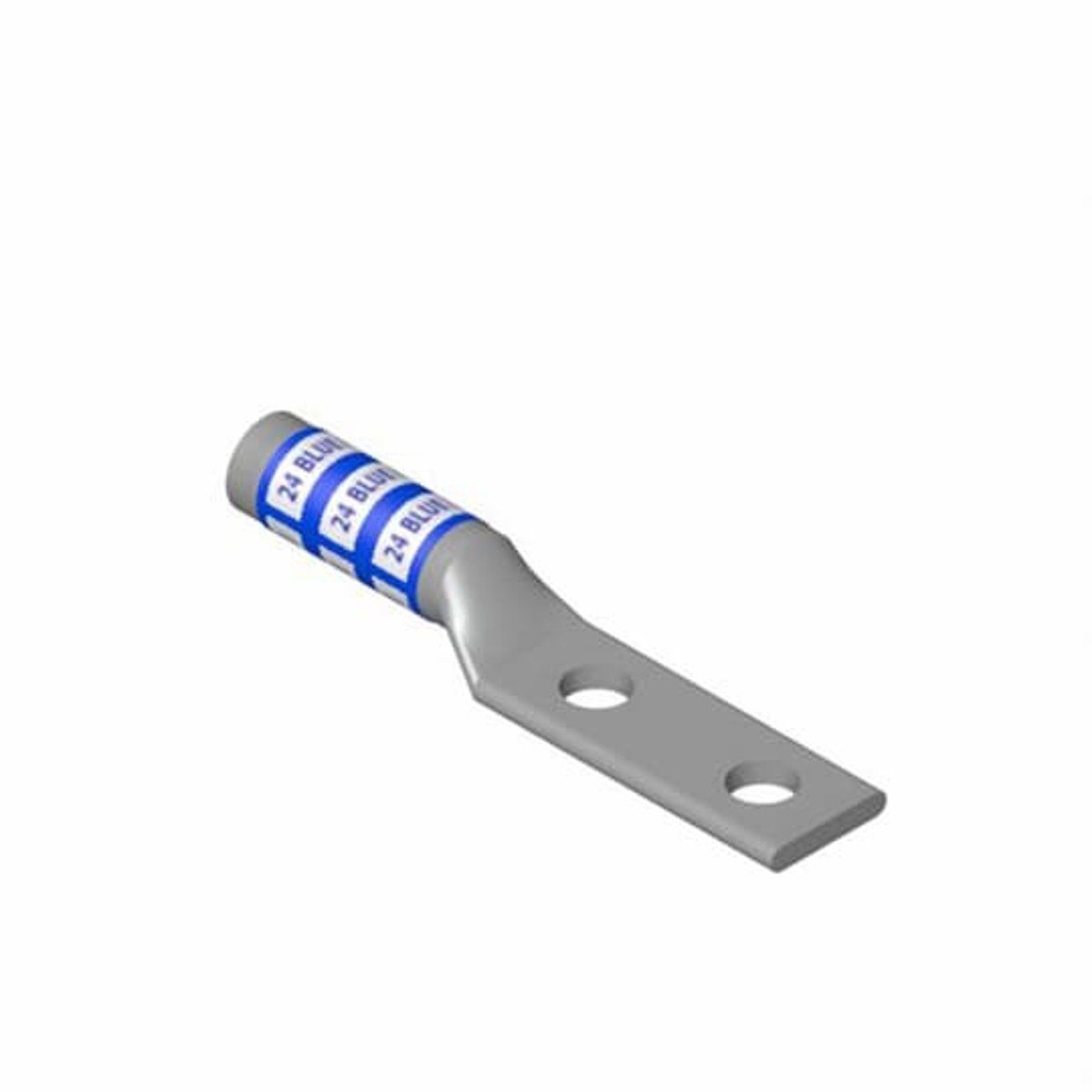

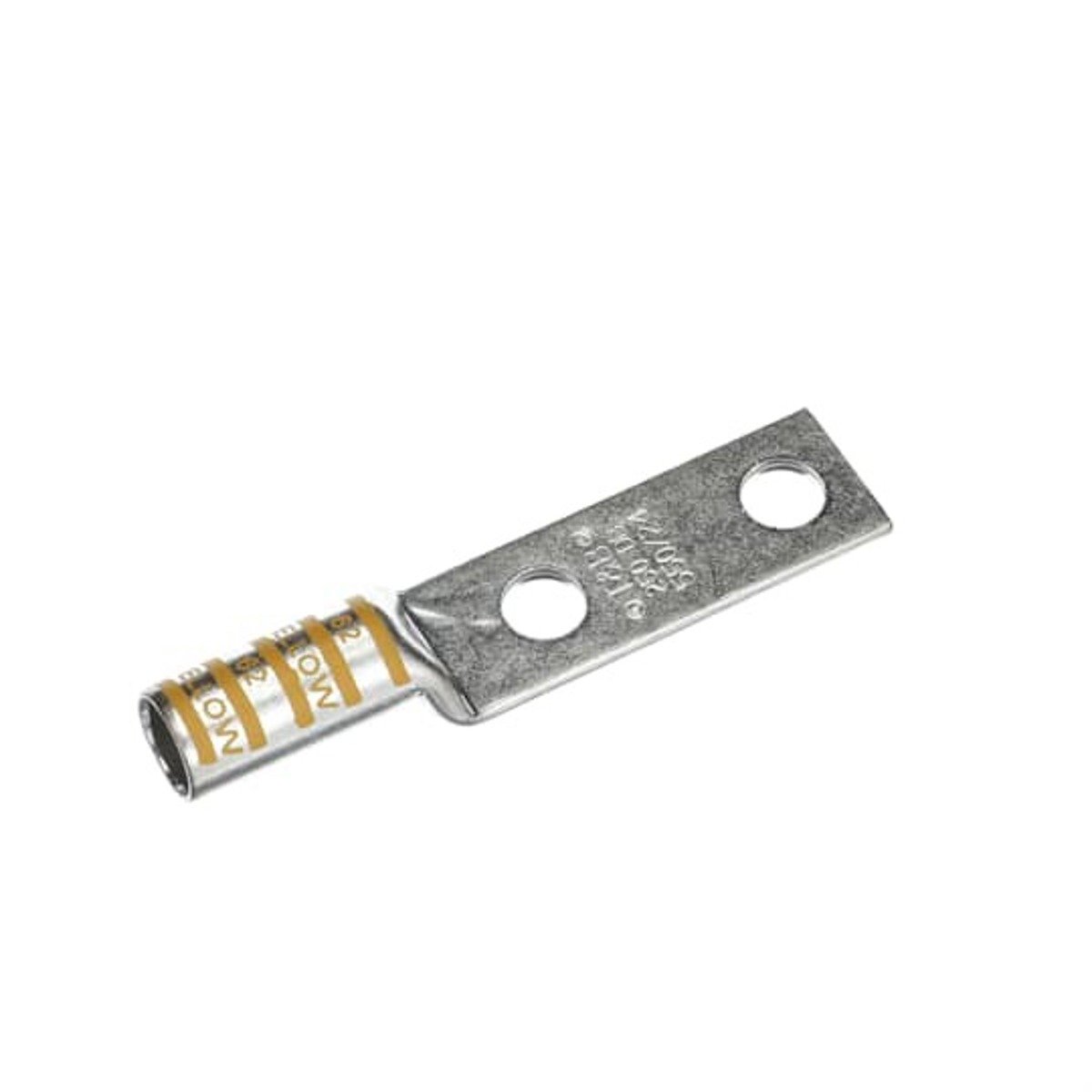

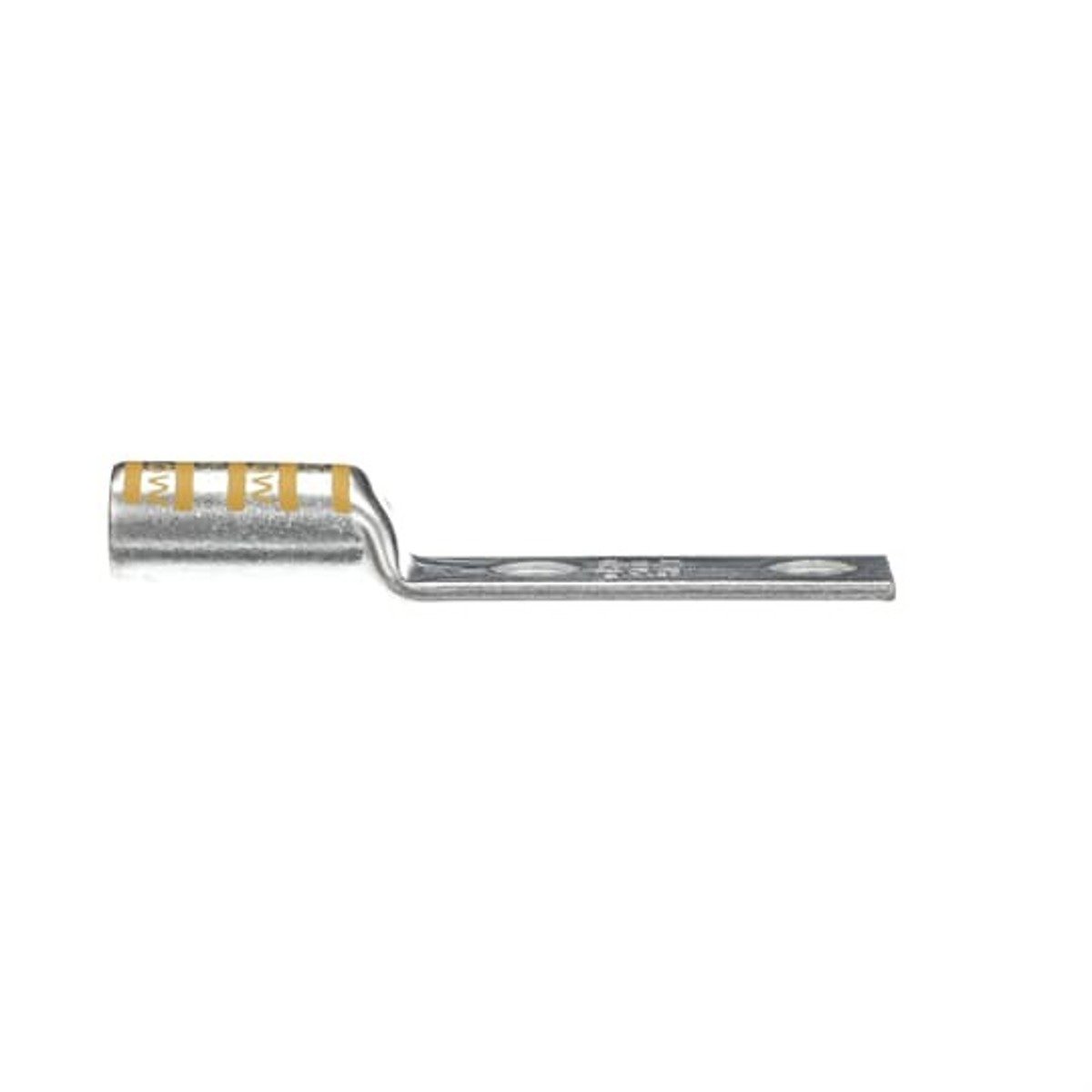

Color-Keyed 54868BE Compression Lug 250 kcmil 2-Hole 1/2 Inch Stud

Product Description

The Color-Keyed 54868BE compression lug is a reliable solution for connecting copper conductors. This compression lug features a 2-hole design suitable for a wire size of 250 kcmil. It is made of high conductivity wrought copper and is tin plated for enhanced durability. This product is designed for use in electrical applications where secure connections are necessary.

• Two-hole, non-insulated design for secure connections
• Compatible with a 1/2 inch stud
• Die code: 62, rated for 35 kV

Product Highlights

This product ensures a proper crimp onto the conductor by using a color-coded system.

Product Information

Standard Information

• Brand: Color-Keyed
• Manufacturer: ABB - Installation Products

Technical Specifications

• Conductor Type: Copper
• Conductor Size: 250 kcmil
• Voltage Rating: 35 kV
• Stud Size: 1/2 inch
• Hole Spacing: 1-3/4 inch
• Barrel Diameter: 0.77 inch
• Overall Length: 4.92 inch
• Material: Copper, Tin Plated
• Series: 54800
