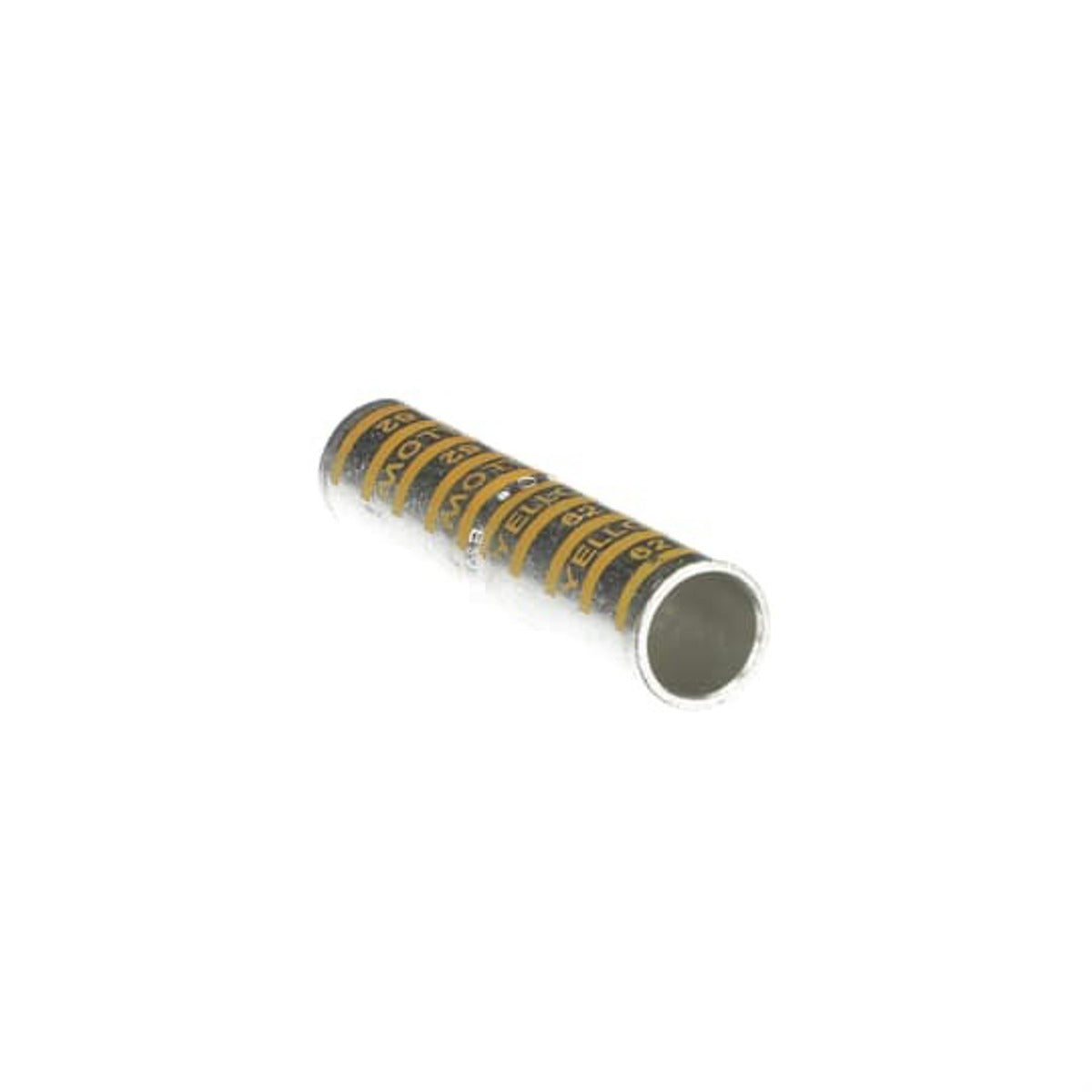

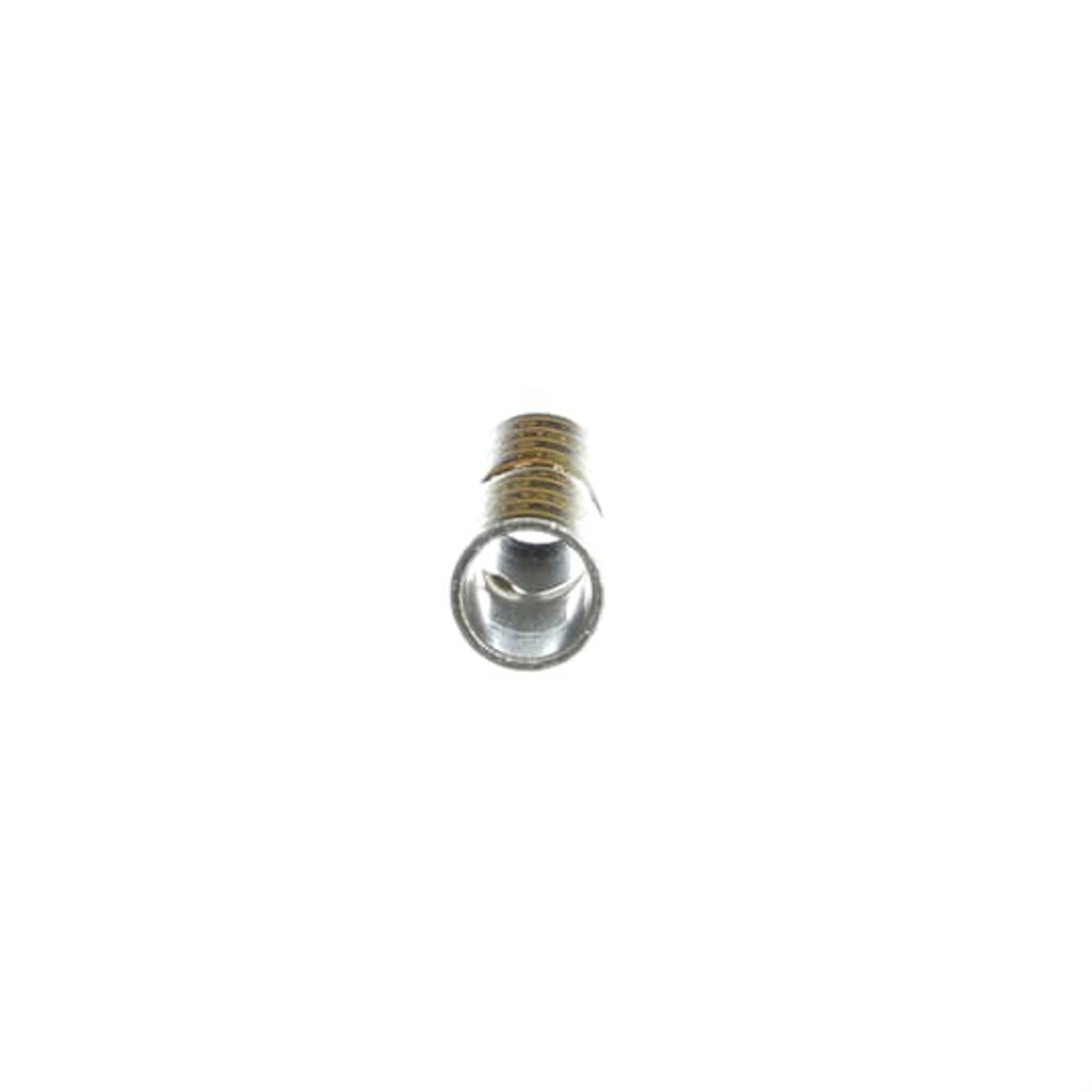

Color-Keyed 54813 Connector Splice 250 kcmil Copper 3.38 inches

Product Description

The Color-Keyed 54813 connector splice is designed for use with 250 kcmil copper conductors. This product features a 2-way long barrel design that provides reliable performance for various electrical applications. The connector has a die code of 62 and is compatible with specific crimping tools for optimum installation. It is suitable for applications rated up to 600 VAC and is recommended for use in systems that may require up to 35 kV.

• 2-way connection ensures low resistance and high pullout values.
• Color coded for easy matching with the correct die and tool.
• Tin-plated copper construction enhances conductivity.

Product Highlights

The Color-Keyed connector utilizes a color-coding system for efficient installation and reliability. This connector supports a wide array of applications in electrical setups where durability and performance are critical.

Product Information

Standard Information

• Manufacturer: ABB - Installation Products
• Brand: Color-Keyed

Technical Specifications

• Catalog Number: 54813
• Conductor Size: 250 kcmil
• Conductor Type: Copper
• Die Code: 62
• Length: 3.38 inches
• Voltage Rating: 600 VAC
• Special Features: Two-way connectors provide high pullout values and are easy to insulate.
• Color Code: Yellow
• Outside Diameter: 0.79 inches
