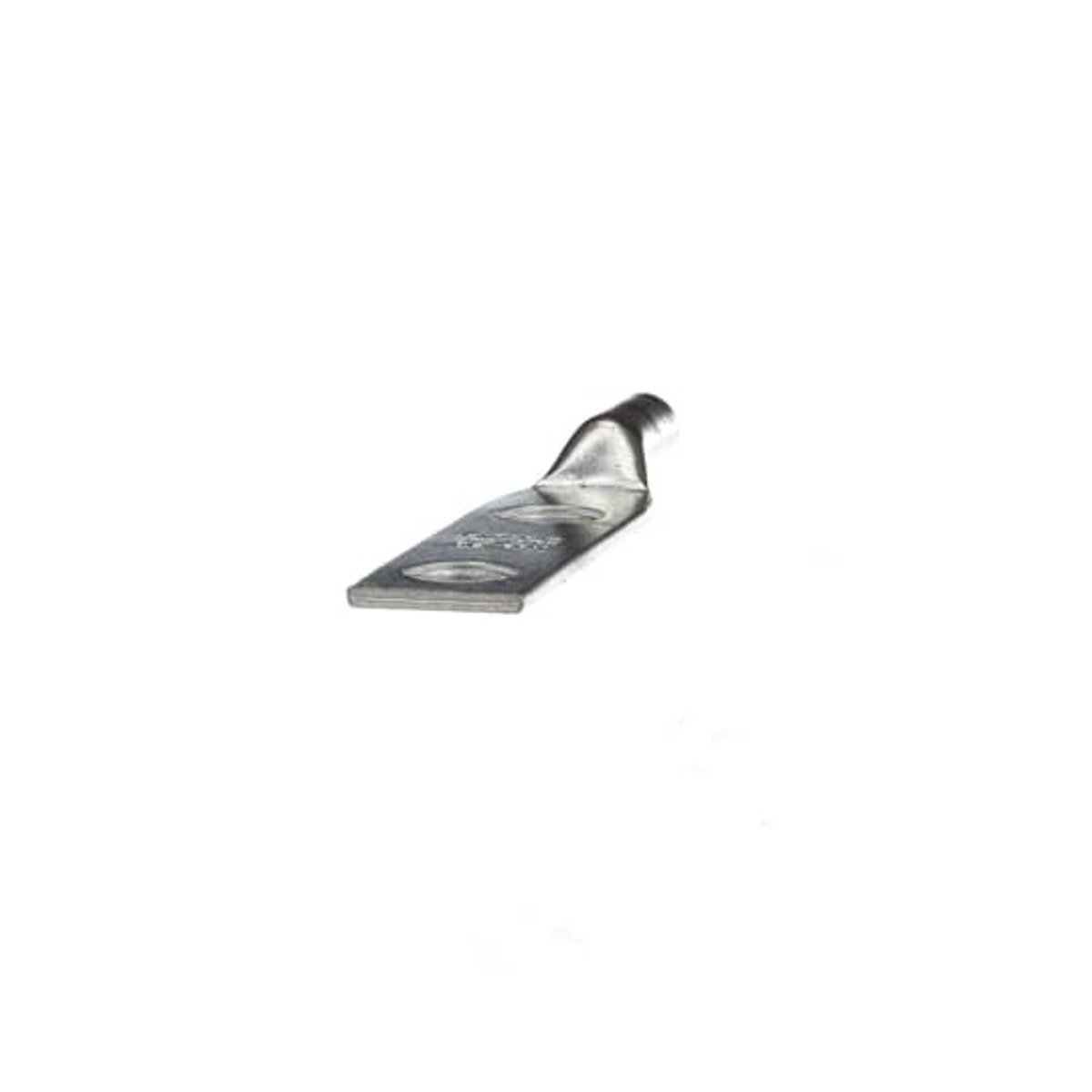

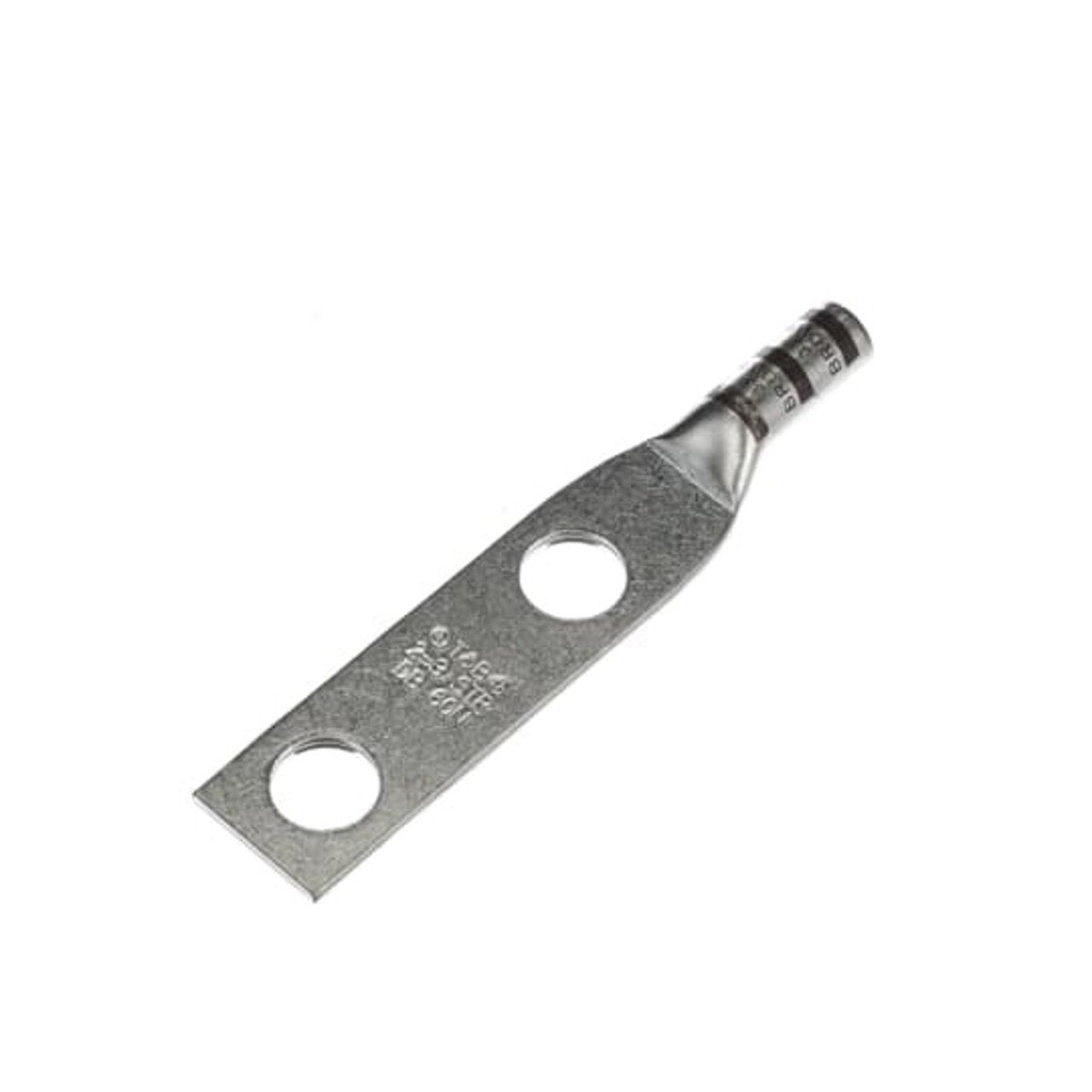

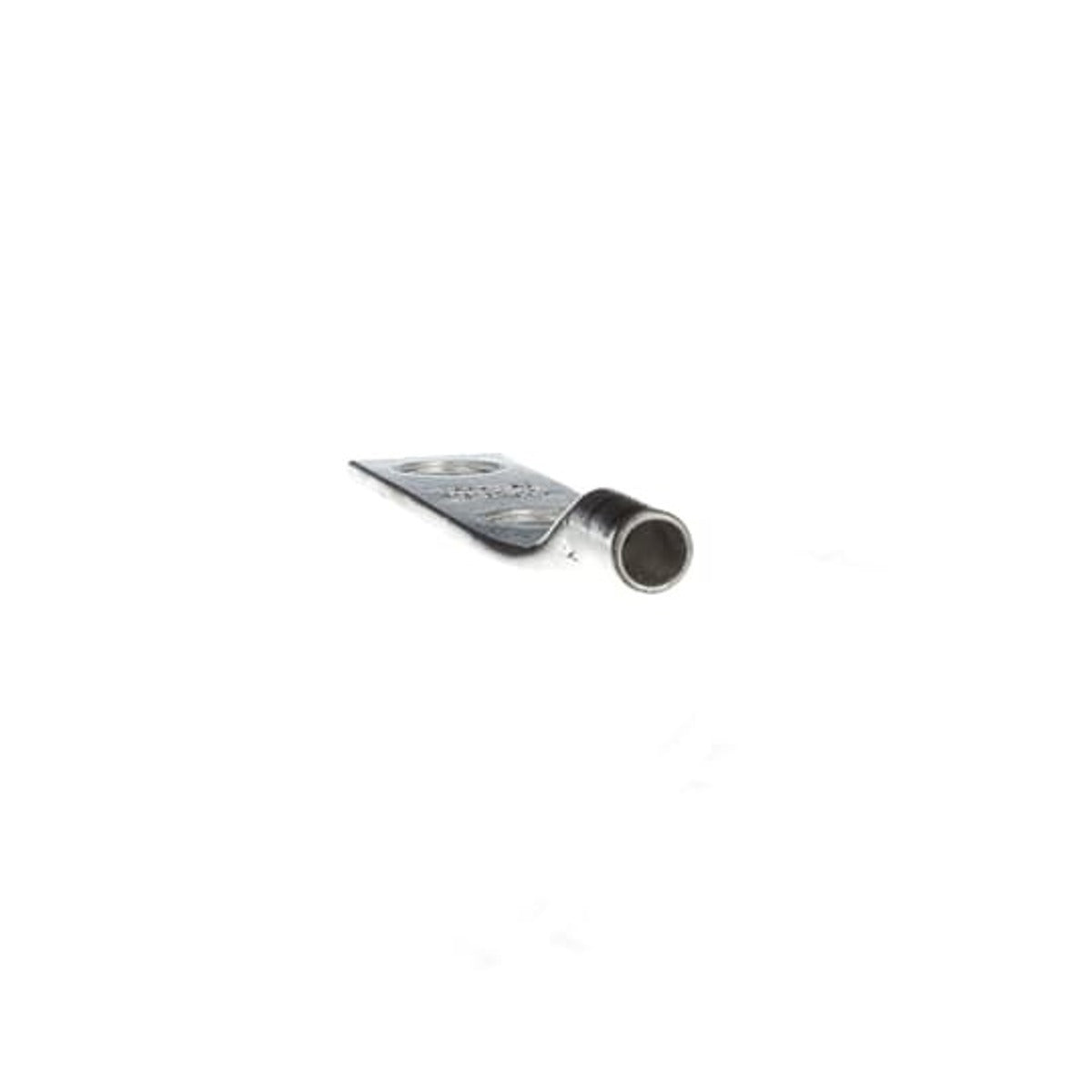

Color-Keyed 54811BE LUG COMPRESSION 2AWG COPPER 33 1/2IN BR

Product Description

The Color-Keyed 54811BE is a lug compression connector designed for use with 2 AWG copper conductors. It features a two-hole non-insulated design that provides reliable electrical connections. This lug is suitable for applications requiring up to 35 kV voltage ratings.

• Constructed from high conductivity wrought copper.
• Designed with a .5 inch center of hole to tongue end.
• Features a tin plated finish for corrosion resistance.

Product Highlights

The Color-Keyed compression system ensures a precise crimp onto conductors, optimized compatibility with the proper tools and die. This product is widely used in electrical installations where reliability and efficiency are essential.

Product Information

Standard Information

• Brand: Color-Keyed
• Manufacturer: ABB - Installation Products

Technical Specifications

• Type: 2-Hole Non-Insulated
• Material: Copper
• Color: Brown
• Voltage Rating: 35 kV
• Conductor Size: 2 AWG
• Stud Size: 1/2 in
• Overall Length: 4.28 in
• Tongue Size: 3 in L x 0.88 in W x 0.11 in THK
