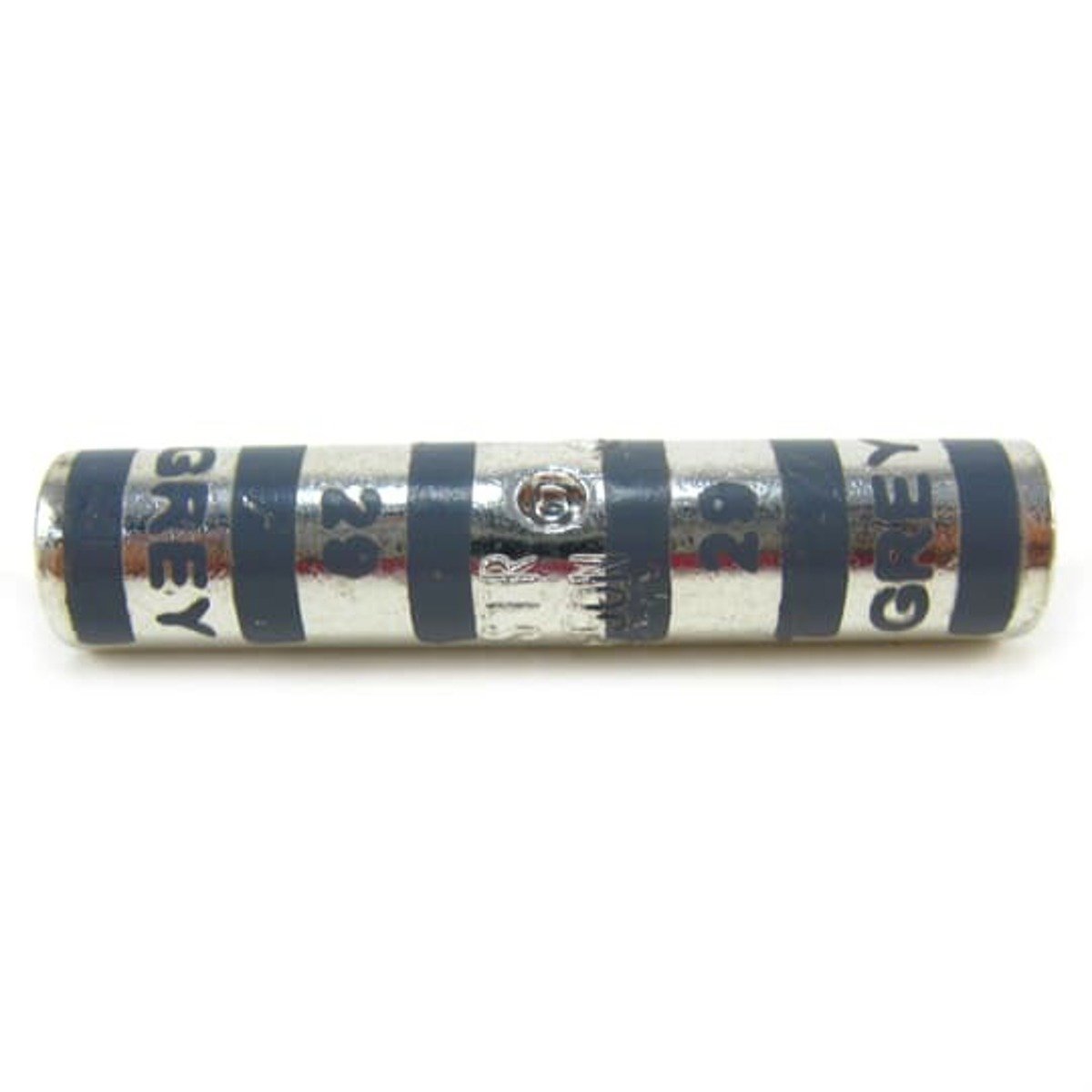

Color-Keyed 54806 Connector Splice 4 AWG Copper 1-3/4 Inches

Product Description

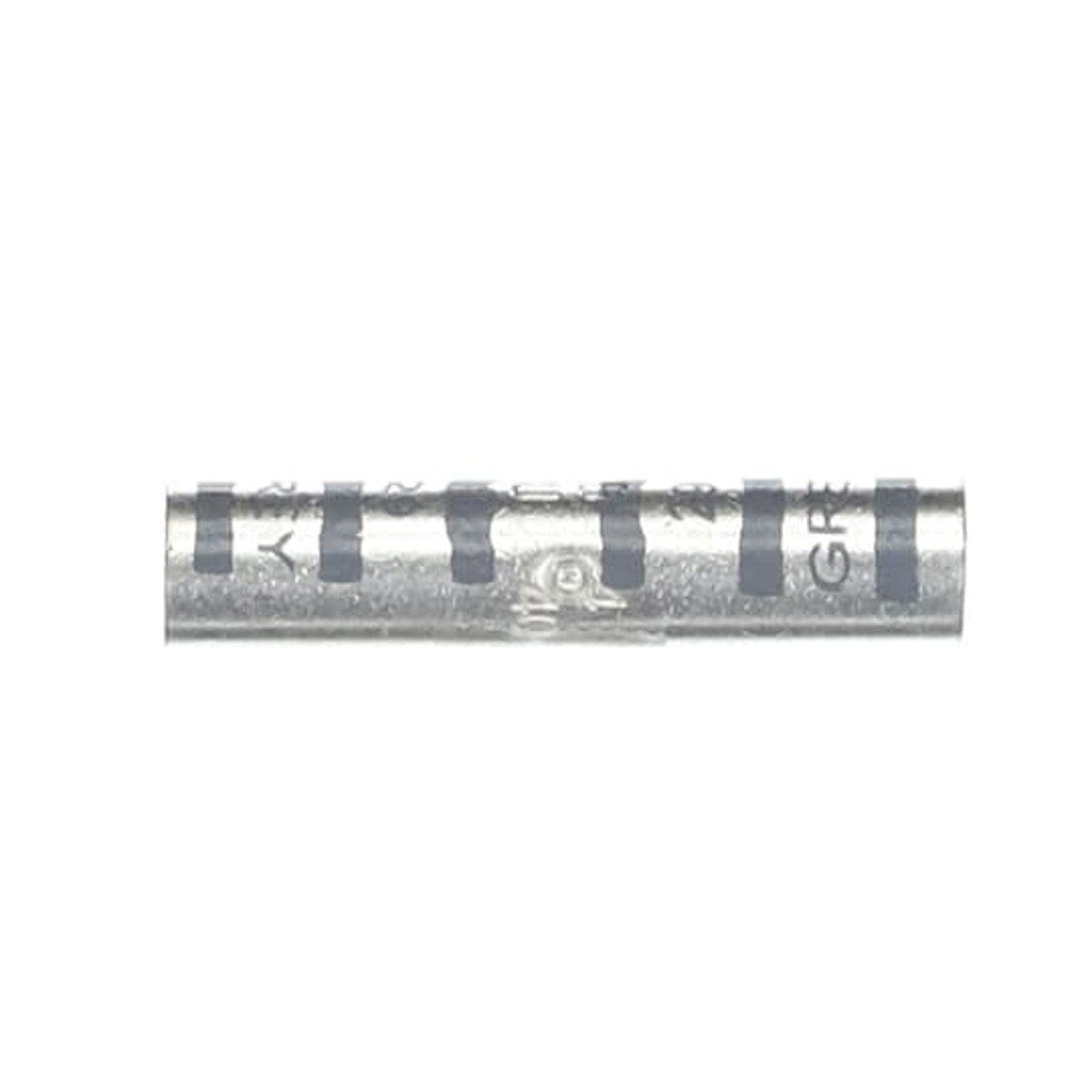

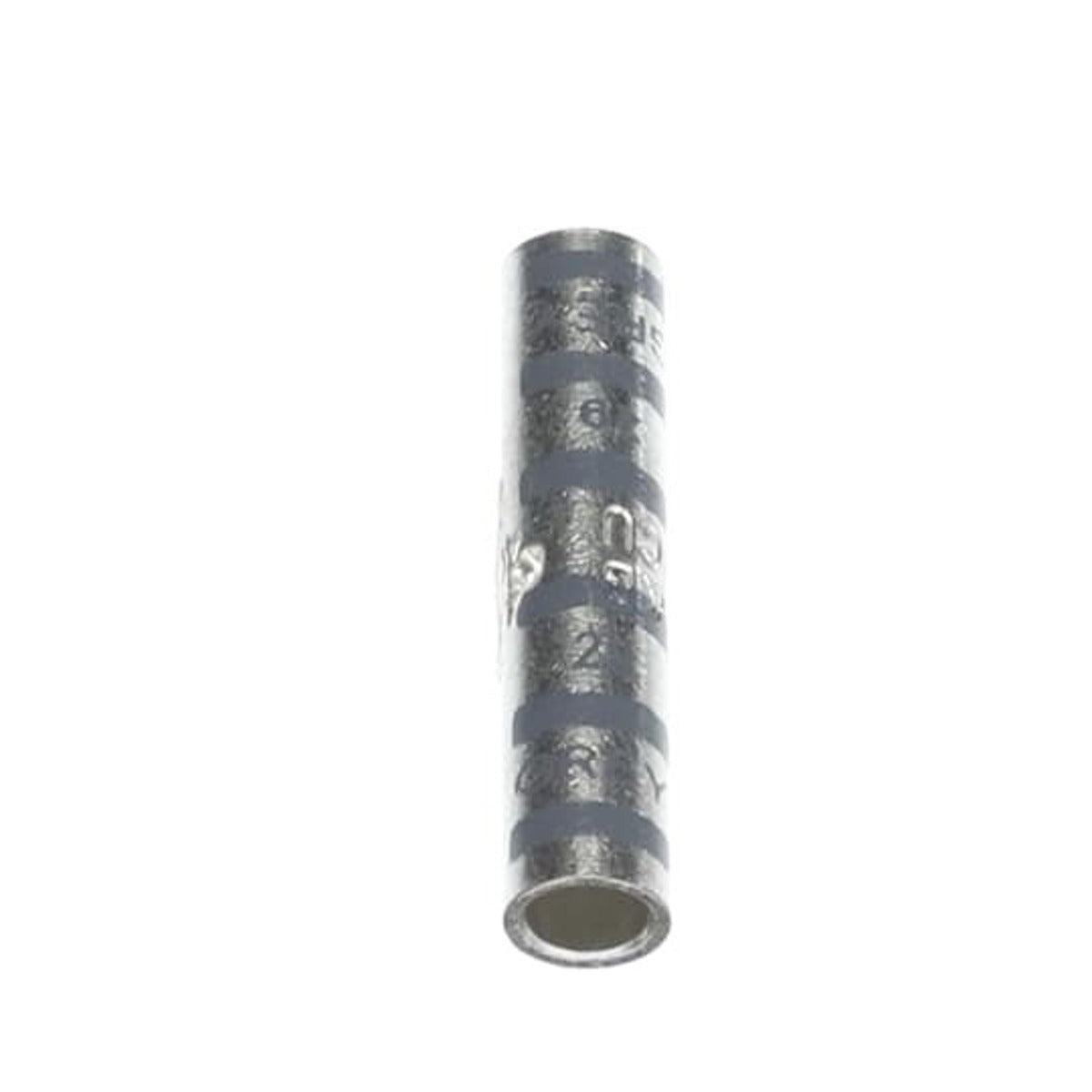

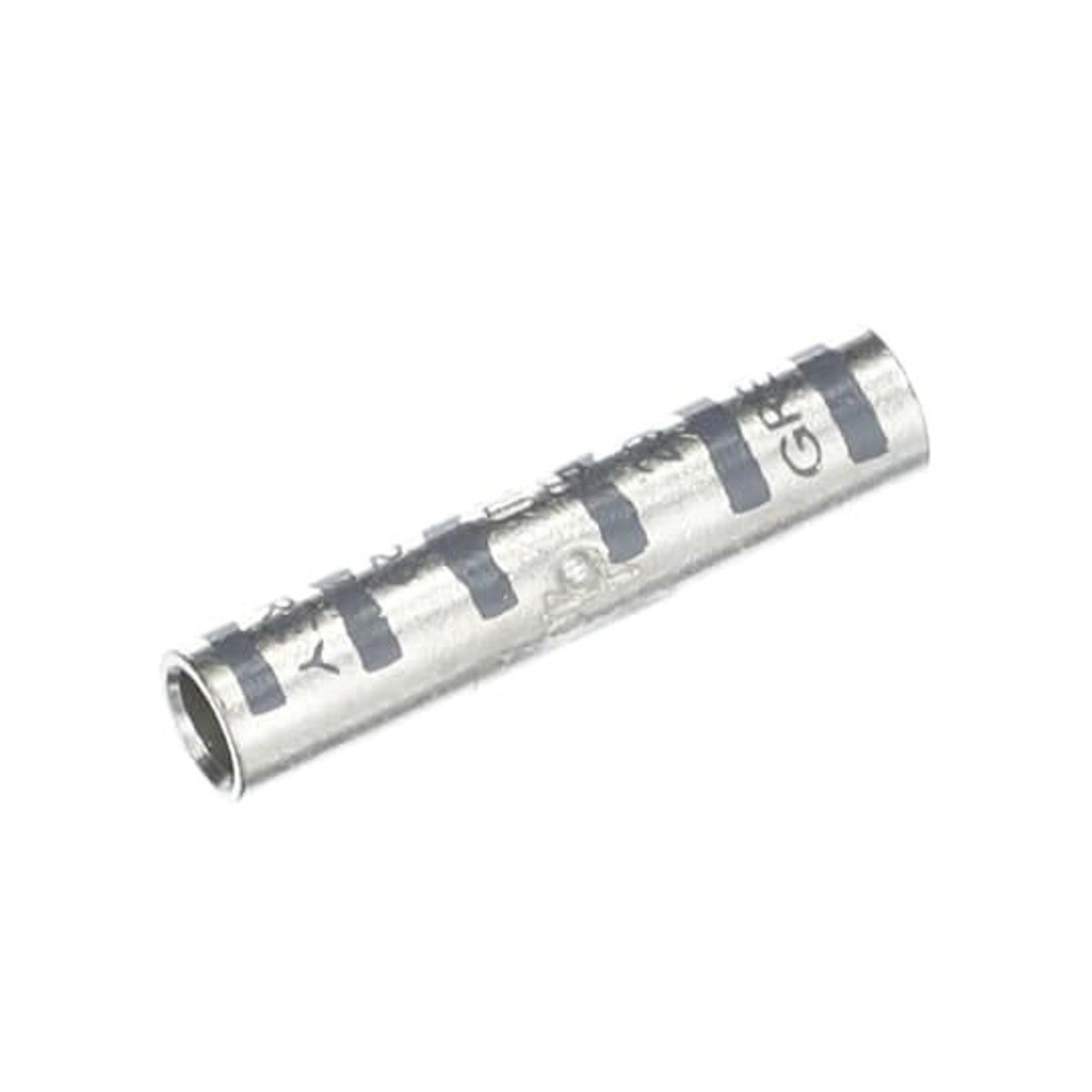

The Color-Keyed 54806 Connector is a two-way long barrel splice designed for use with 4 AWG copper conductors. It features a die code of 29 and measures one and three-quarters inches in length. This splice is designed for reliable electrical connections in various applications.

• Rated for voltage levels up to 600 VAC and 35 kV
• Color-coded for easy identification of the correct connector and tool
• Constructed with a tin-plated copper material for durability and conductivity

Product Highlights

This splice connector provides high pullout values and is easy to insulate, ensuring a low-resistance connection.

Product Information

Standard Information

• Brand: Color-Keyed
• Manufacturer: ABB - Installation Products

Technical Specifications

• Catalog Number: 54806
• Conductor Size: 4 AWG
• Length: 1-3/4 inches
• Die Code: 29
• Color Code: Gray
• Voltage Rating: 600 VAC
• Outside Diameter: 0.39 inches
• Application: Certified for applications up to 35 kV
