Color-Keyed 54510 Connector Splice Standard Barrel 2/0 AWG Copper Replacement MPN

Product Description

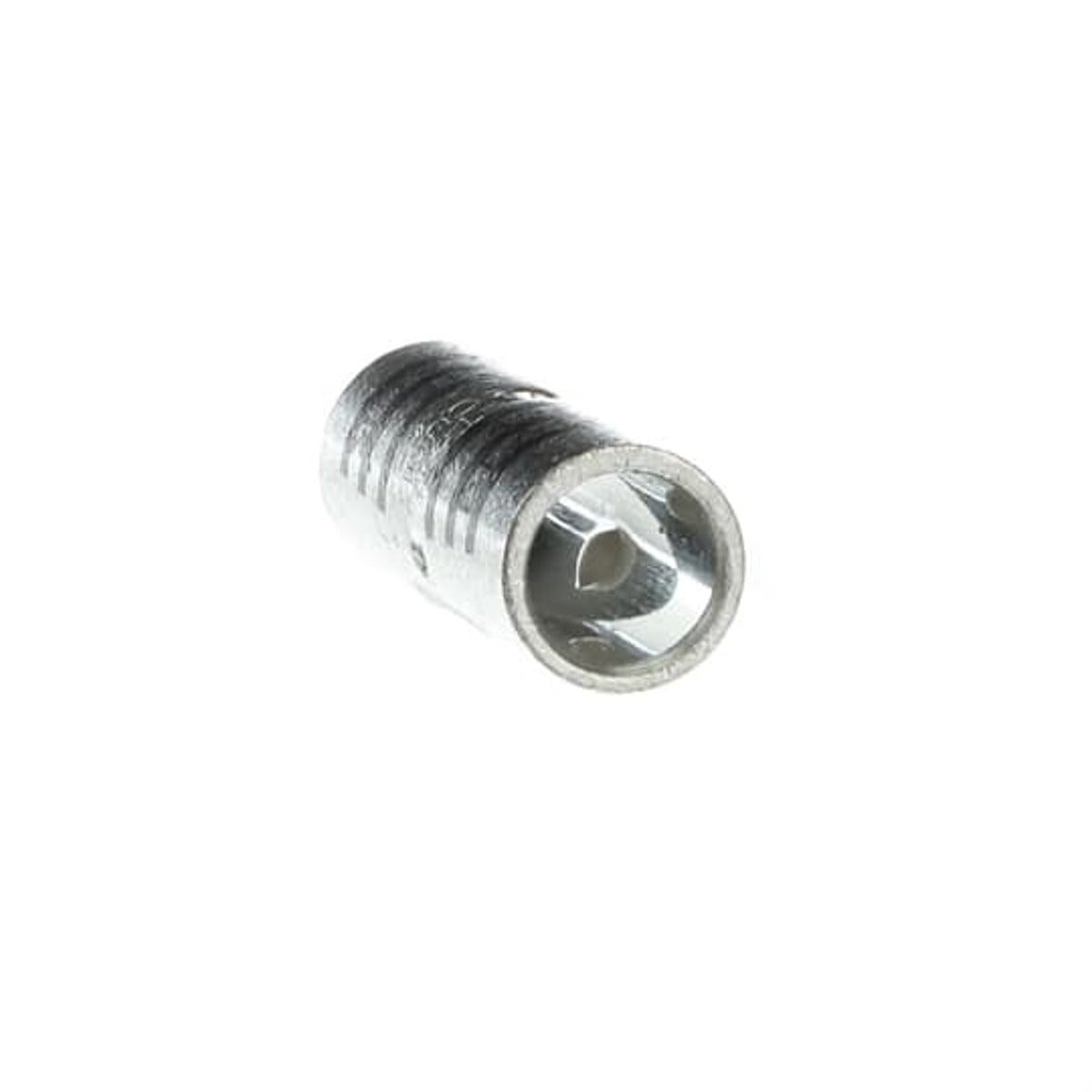

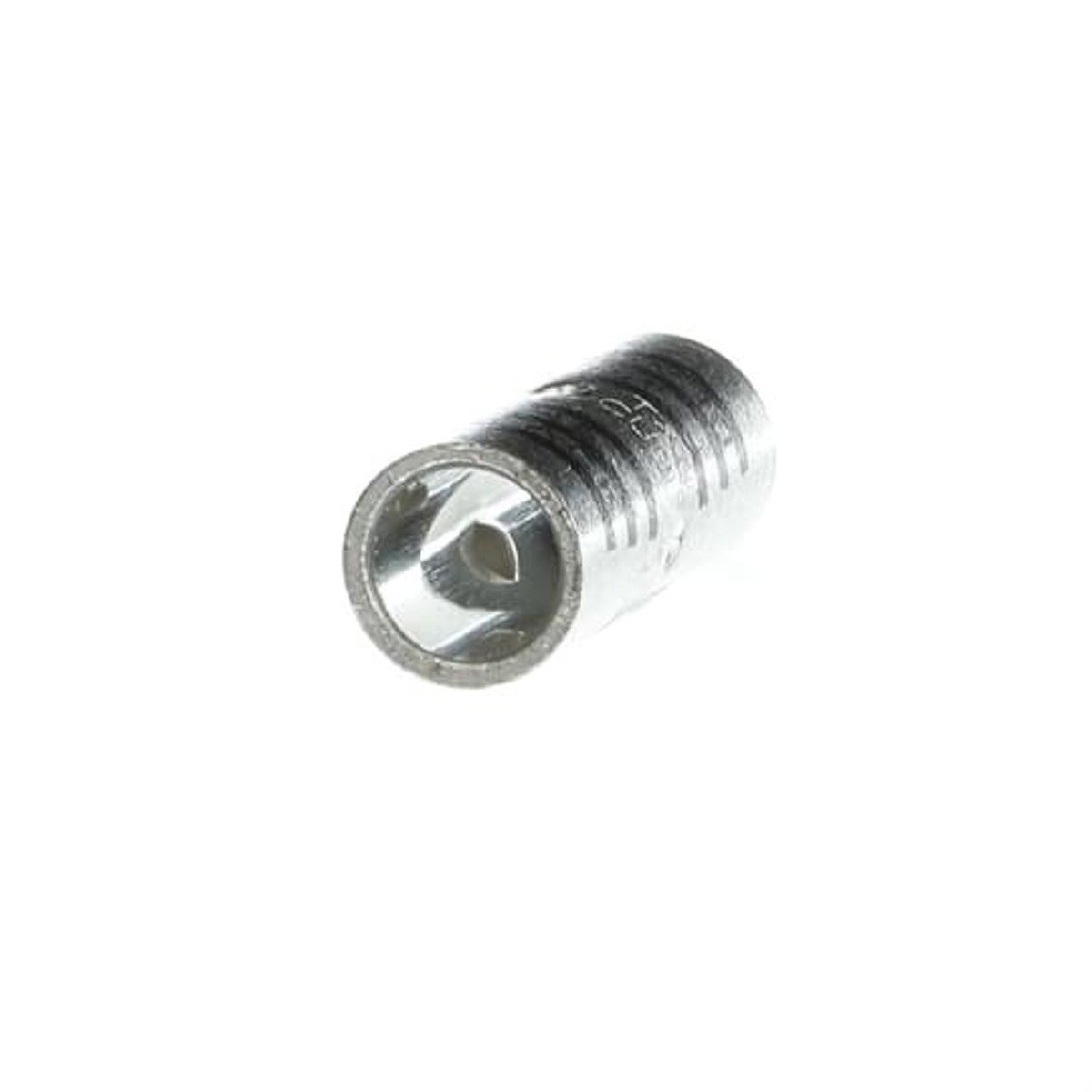

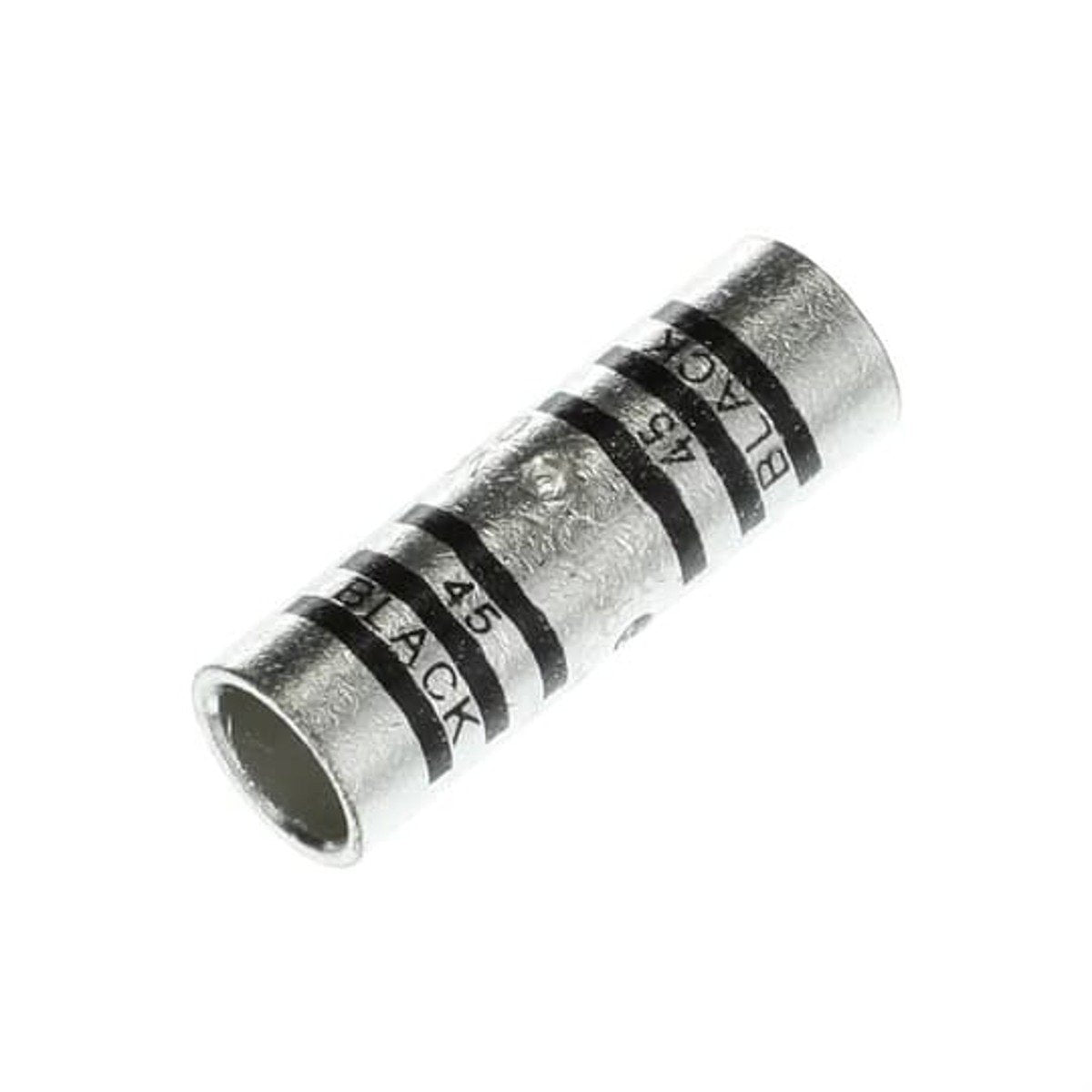

The Color-Keyed 54510 is a two-way standard barrel splice connector. This connector is designed for use with 2/0 AWG copper conductors. It has a die code of 45 and a length of one and three-fourth inches. The connector is suitable for applications requiring a secure and low-resistance connection.

• Connector offers high pullout values and easy insulation.
• Color-coded for precise matching of installing die and connector.
• Rated for a maximum voltage of thirty-five kilovolts.

Product Highlights

The Color-Keyed compression system matches connectors with the right tools and dies, ensuring effective crimping for reliable performance in electrical applications.

Product Information

Standard Information

• Catalog Number: 54510
• Manufacturer: ABB - Installation Products

Technical Specifications

• Die Code: 45
• Color Code: Black
• Material: Copper
• Voltage Rating: 600 VAC
• Outside Diameter: 0.57 inches
• Length: 1.75 inches
• Conductor Size: 2/0 AWG
• Special Features: High pullout values, low-resistance connection
