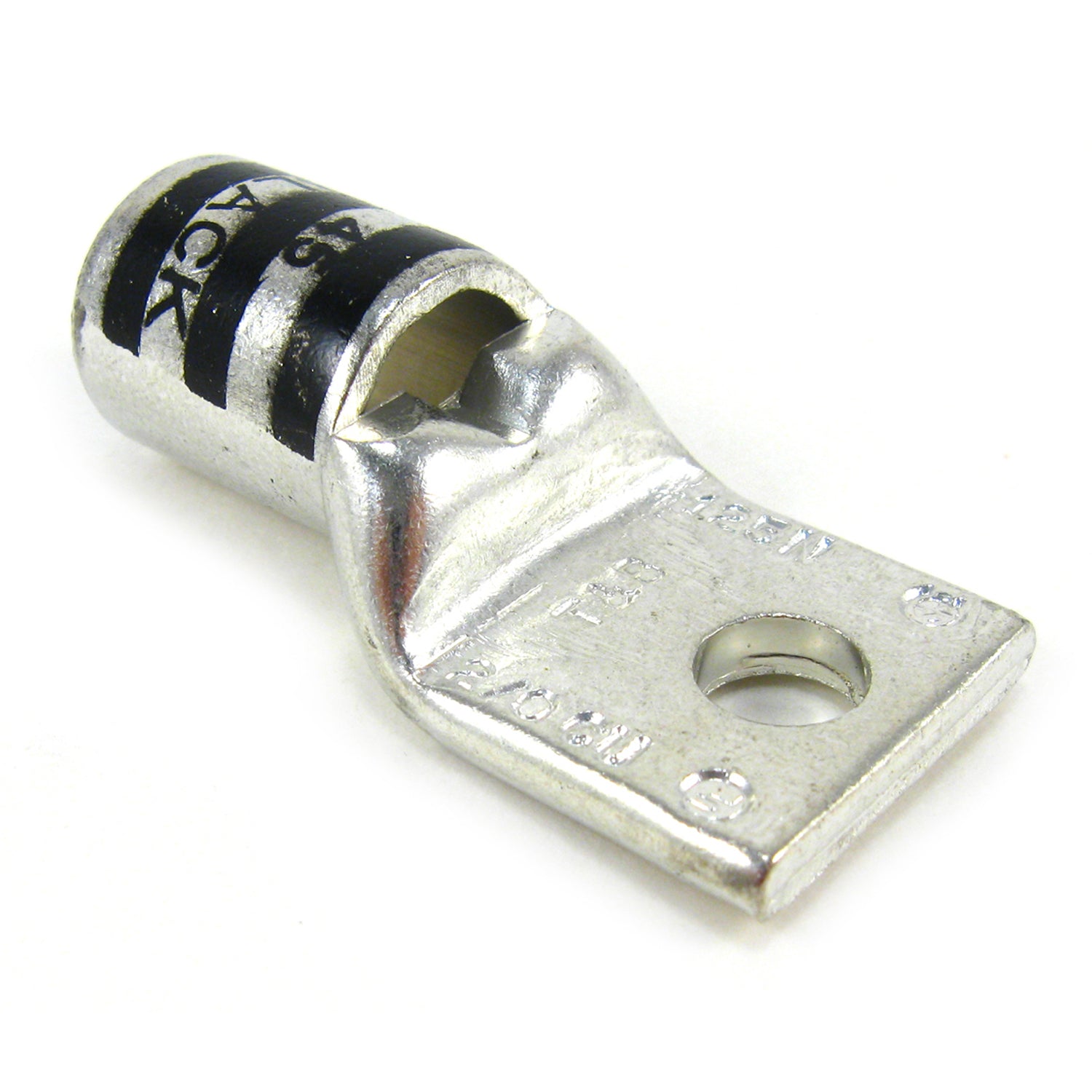

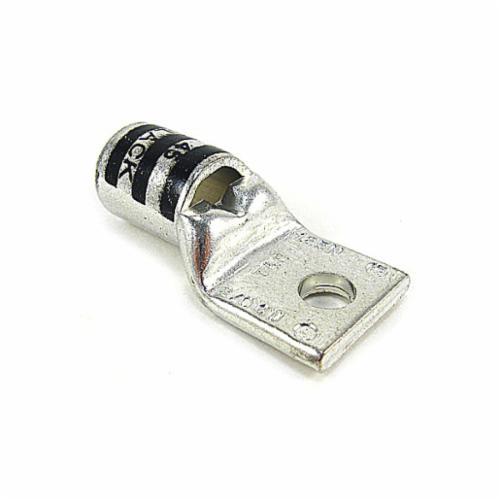

Color-Keyed 54158 Compression Lug, 1-Hole, 2/0 AWG, 45 Die Code, 5/16 Inch Stud

Product Description

Color-Keyed Compression Lug with MPN 54158 is designed for reliable electrical connections. This compression lug ensures a secure connection for 2/0 AWG copper conductors and is engineered for 35 kV ratings. It has a single hole for mounting and includes a peep hole for easy inspection. The design allows for a proper crimp using the right connector, tool, and die.

• Peep hole for fast inspection.
• High conductivity copper construction.
• Tin plated for optimal performance.

Product Highlights

This lug supports a voltage rating of thirty-five kilovolts and requires a stud size of five-sixteenth inches.

Product Information

Standard Information

• Brand: Color-Keyed
• Manufacturer: ABB - Installation Products

Technical Specifications

• Catalog Number: 54158
• Conductor Size: 2/0 AWG
• Die Code: 45
• Stud Size: 5/16 in
• Barrel Size: 0.57 in Dia
• Overall Length: 1.88 in
• Voltage Rating: 35 kV
• Material: Copper
• Color: Black
