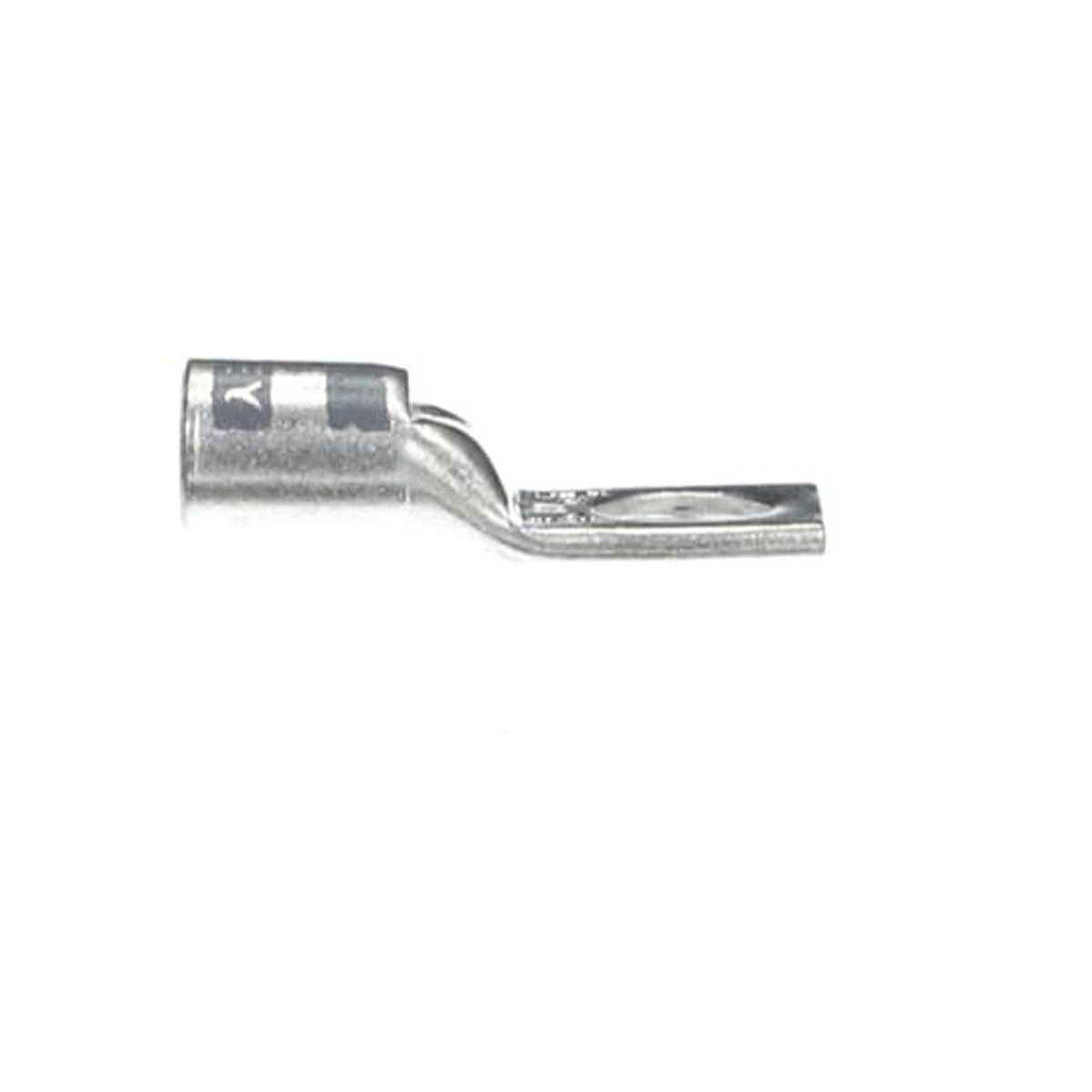

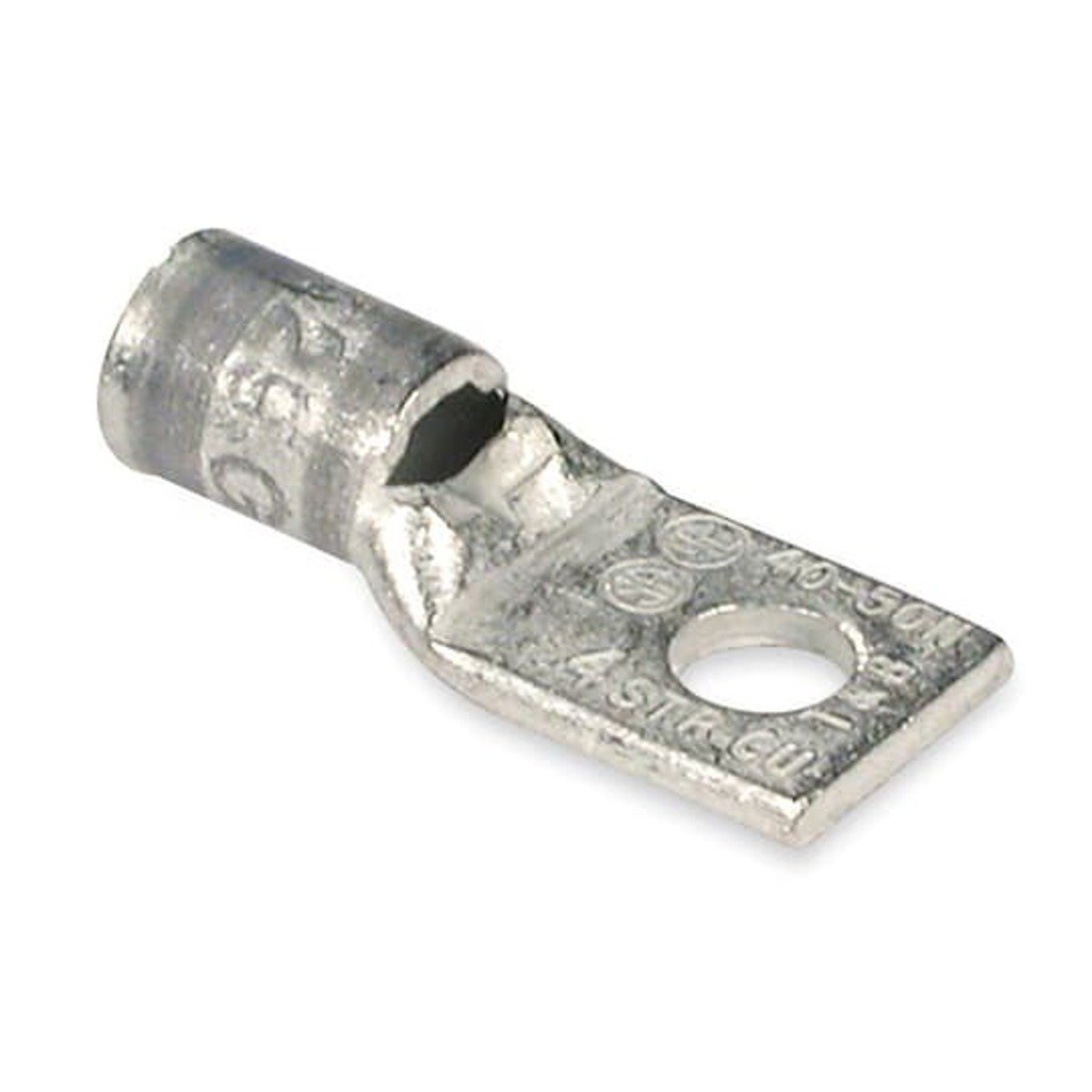

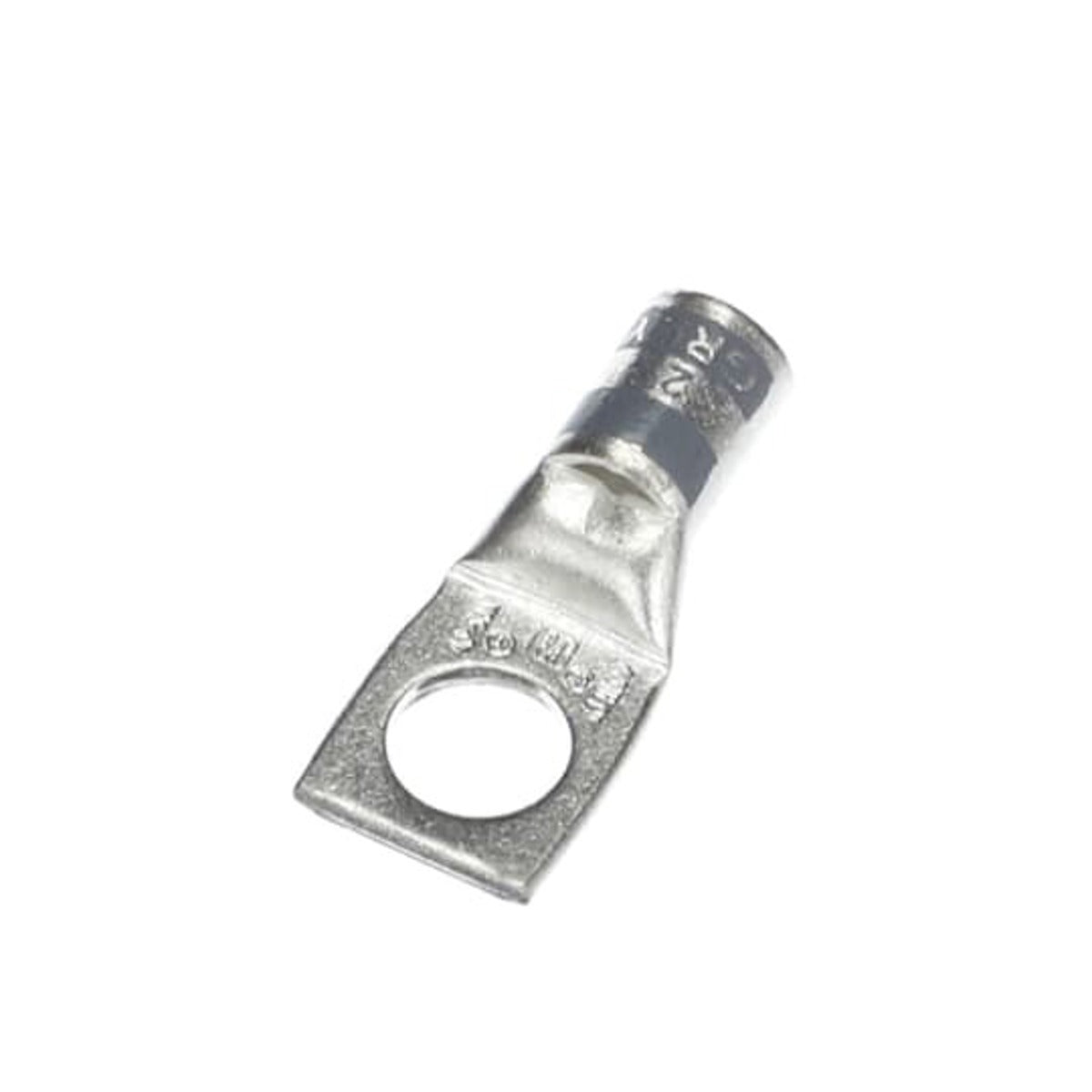

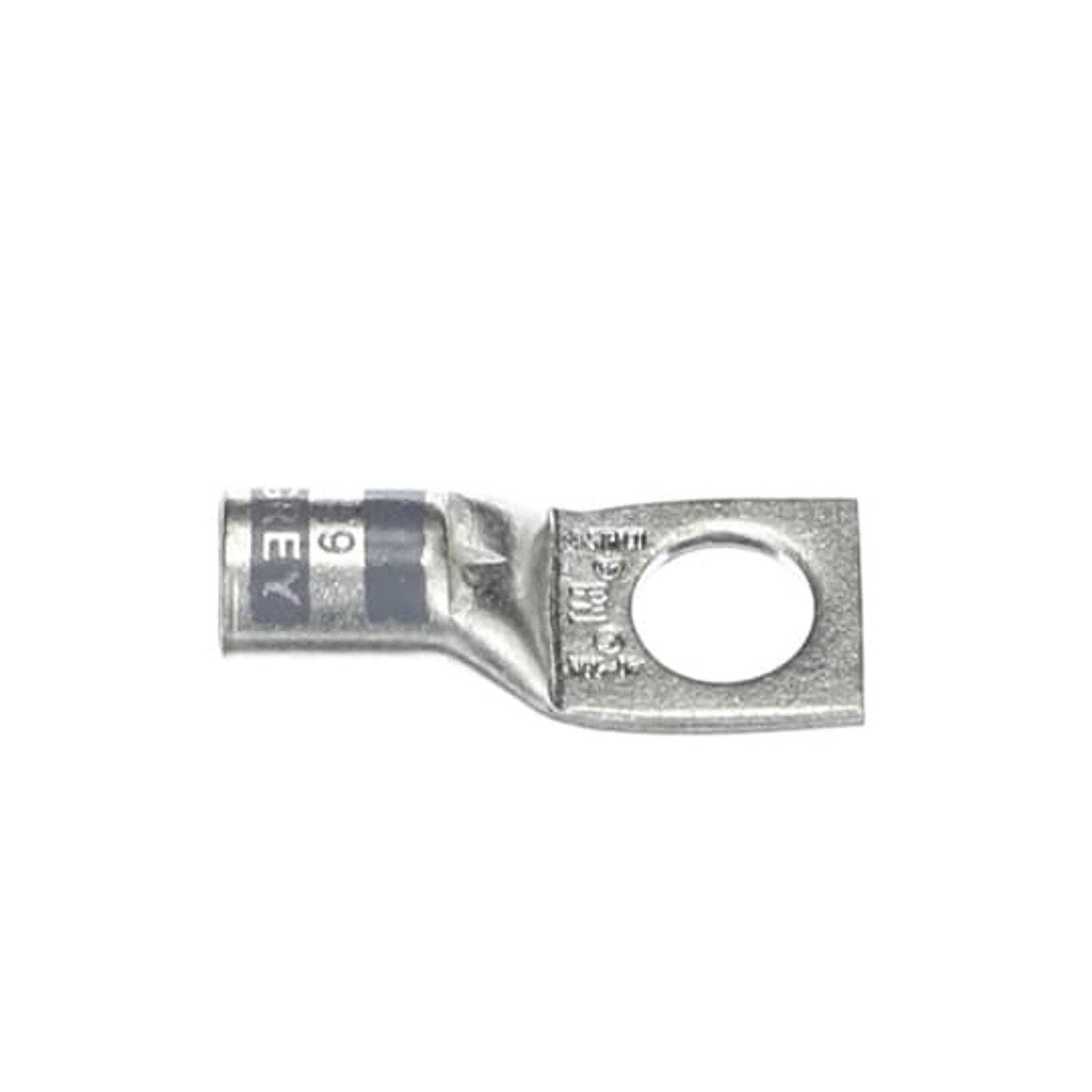

Color-Keyed 54140 Compression Lug, 1-Hole, 4 AWG, 35 kV, 3/8 Inch Stud

Product Description

The Color-Keyed Compression Lug, MPN 54140, is designed for electrical connections. This 1-hole, non-insulated compression lug is suitable for 4 AWG copper conductors. It features a die code of 29 and is compatible with a 3/8-inch stud. The connection is enhanced by a unique color-coded system that allows for precise crimping with corresponding tools.

• Compatibility with 4 AWG copper conductors
• Rated for use up to 35 kV
• Standard barrel design with a single mounting hole

Product Highlights

The Color-Keyed compression system aids in achieving reliable electrical connections by ensuring the right lug is matched with the right tool.

Product Information

Standard Information

• Brand: Color-Keyed
• Manufacturer: ABB - Installation Products

Technical Specifications

• MPN: 54140
• Conductor Size: 4 AWG
• Stud Size: 3/8 in
• Voltage Rating: 35 kV
• Overall Length: 1.42 in
• Barrel Diameter: 0.37 in
• Tongue Dimensions: 0.66 in L x 0.61 in W x 0.07 in THK
• Mounting Hole Size: 0.406 in
• Color: Gray
• Material: Copper
• Certification: UL E9809
