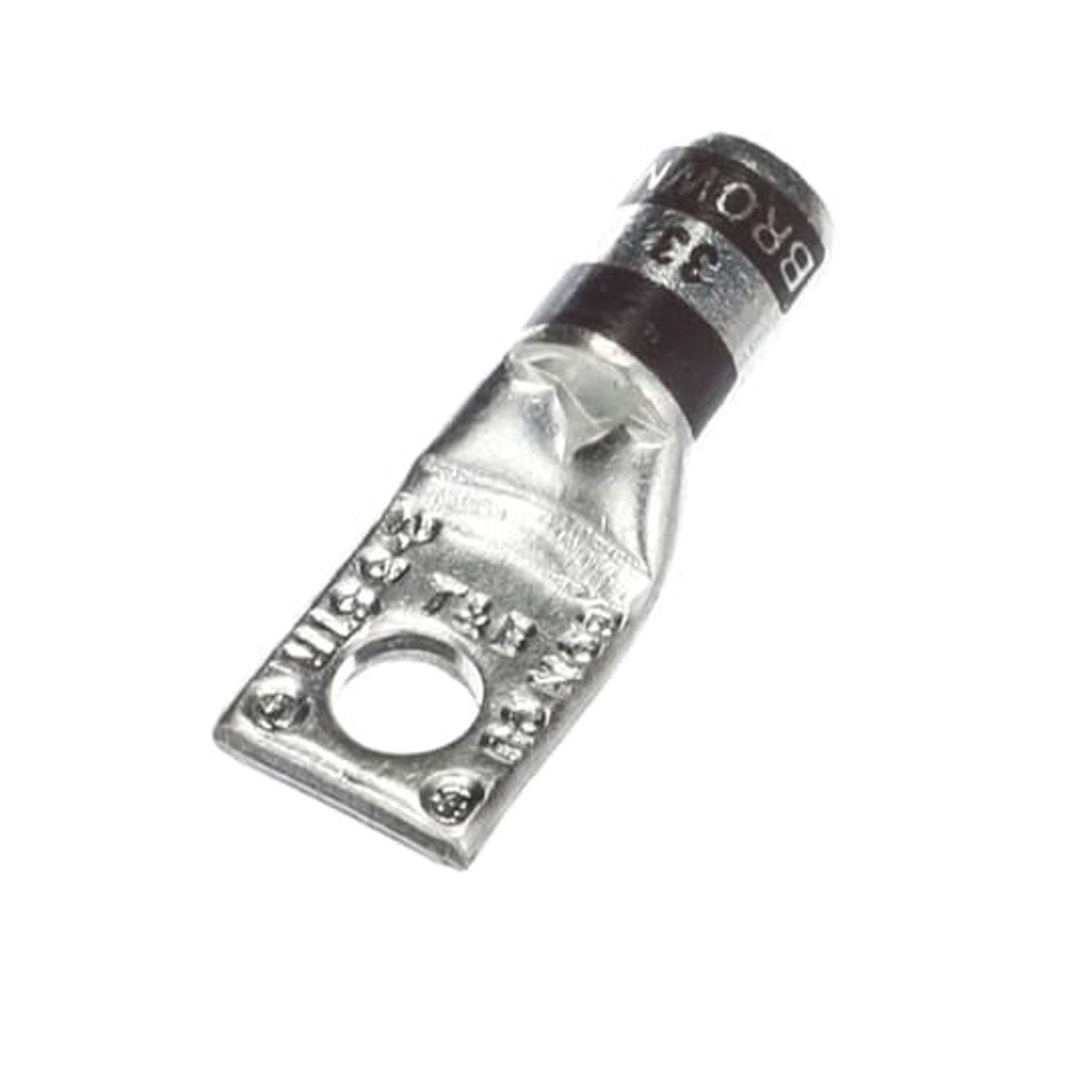

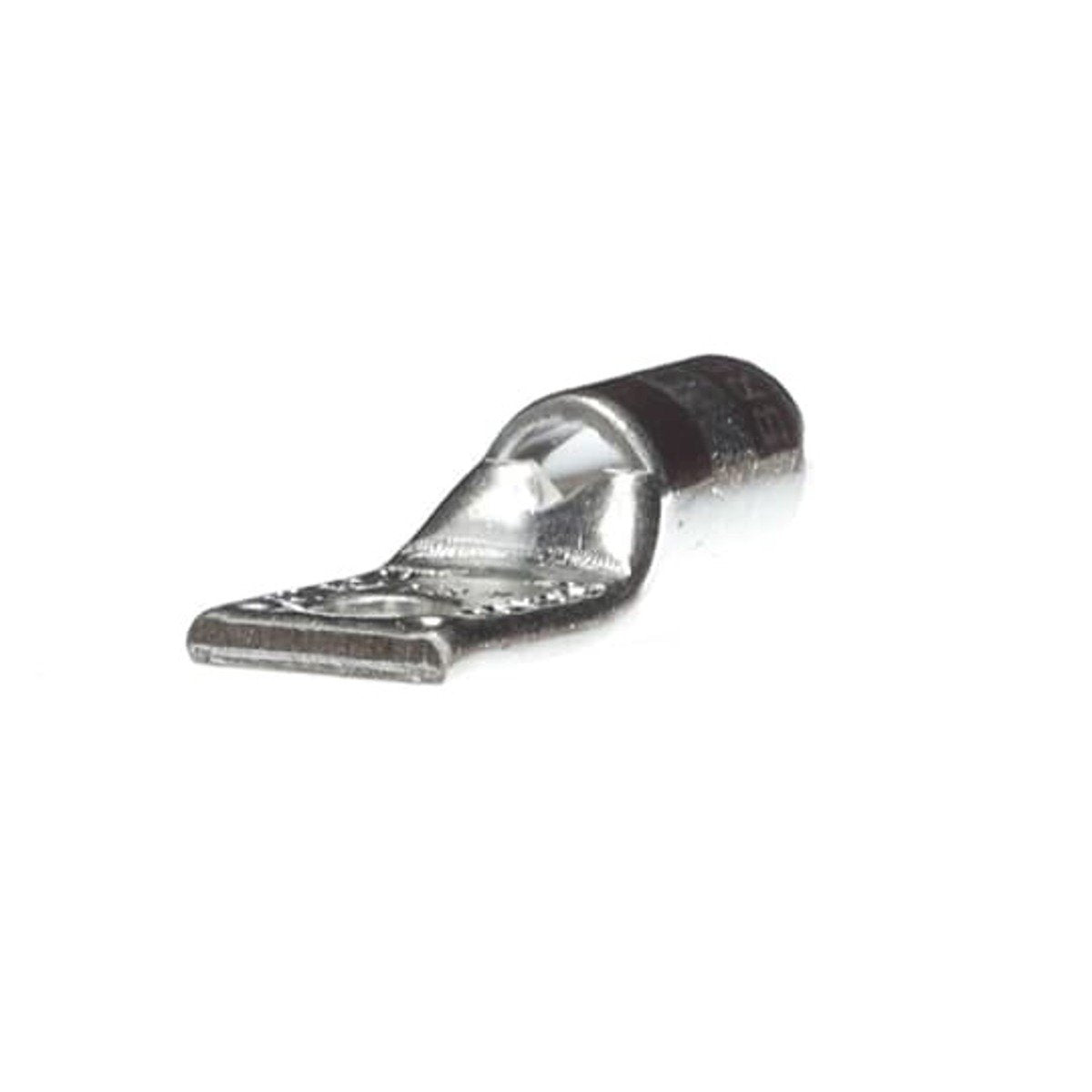

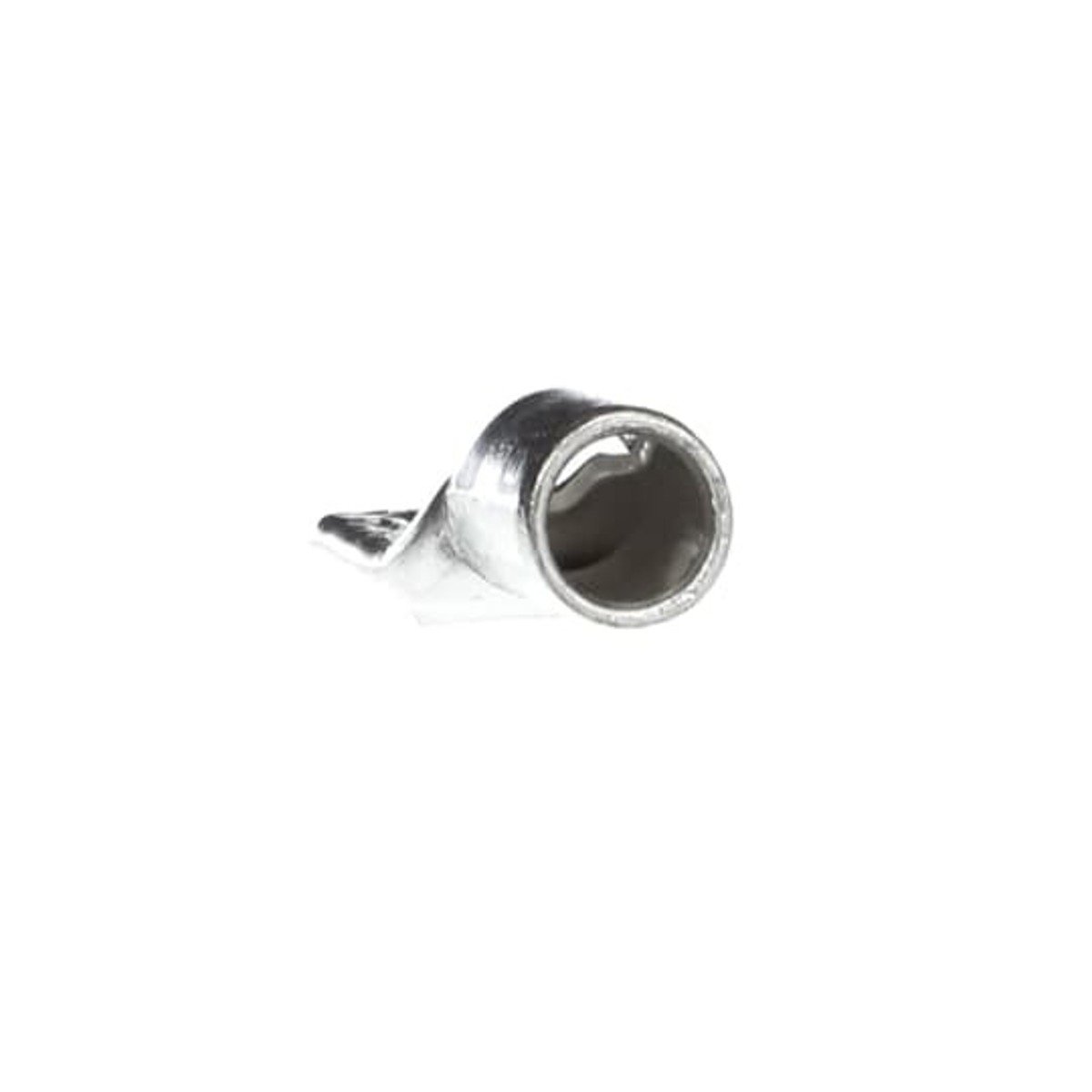

COLOR-KEYED 54107 Copper One-Hole Lug Standard Barrel Peep Hole Max 35kV Wire Size #2 AWG 1/4 Inch Bolt Size

Product Description

The COLOR-KEYED 54107 Copper One-Hole Lug is a standard barrel connector designed to accommodate wire sizes up to two American Wire Gauge (AWG) and rated for a maximum voltage of thirty-five kilovolts (35kV). This lug features a peep hole which allows for visual inspection of the wire connection. The lug is tin plated and has a die code of thirty-three with a brown die color code.

• Fits wire sizes up to 2 AWG
• 1/4 inch bolt size
• Meets UL E9809 standards

Product Highlights

This single hole terminal lug provides a reliable connection for various electrical applications. Its sturdy copper construction ensures efficient conductivity, ideal for harsh environments.

Product Information

Standard Information

• Catalog Number: 54107
• Manufacturer: ABB - Installation Products

Technical Specifications

• Country of Origin: Mexico
• Cable Size: 2 AWG
• Color: Brown
• Material: Copper
• Number of Holes: 1
• UPC: 786210541075
• Voltage Rating: 35 kV
• Stud Size: 1/4 in
