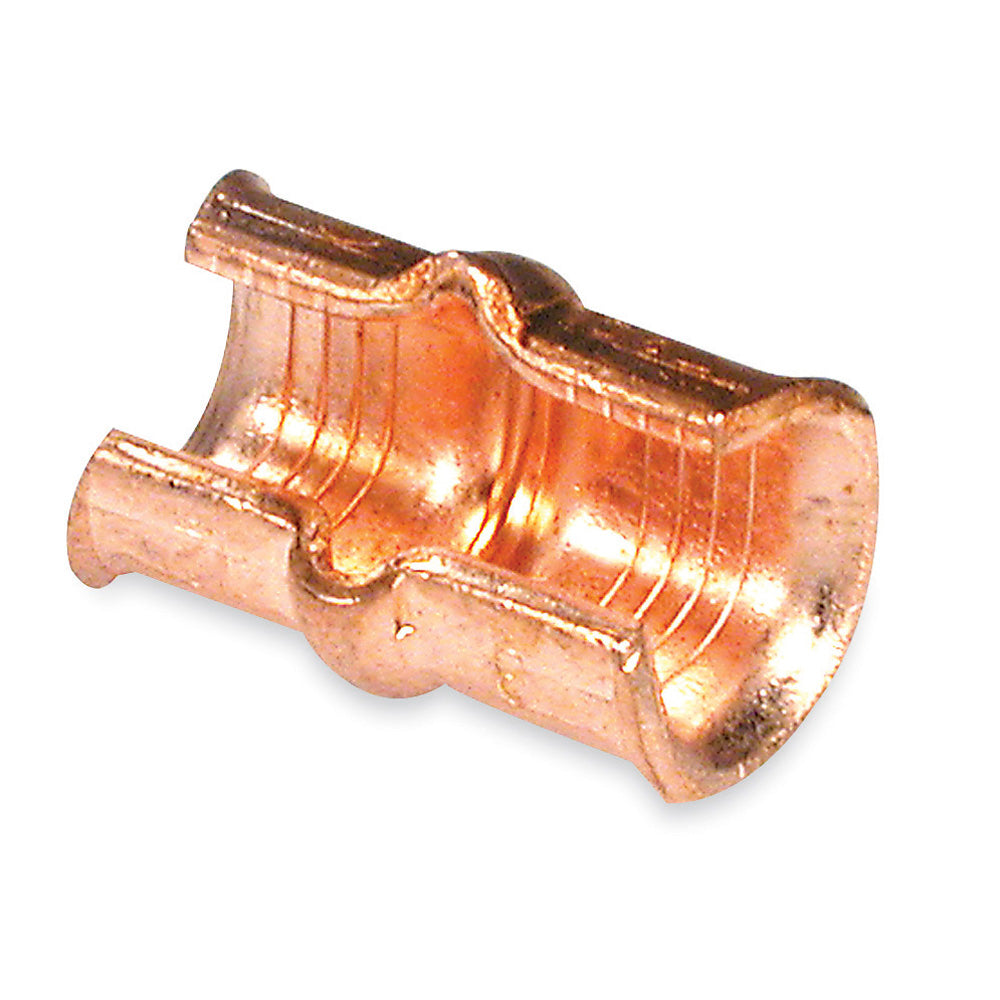

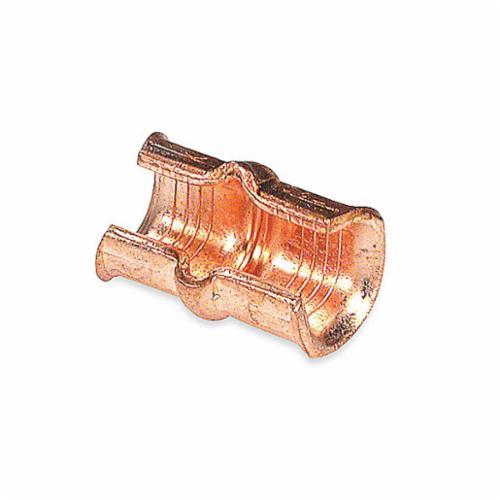

Color-Keyed® 54740 C-Tap Compression Connector Standard 2 to 1/0 AWG Main/Run

Product Description

The Color-Keyed® 54740 compression connector is made by ABB and is designed to provide a secure crimping solution for various conductor sizes. This connector is suitable for use with solid or stranded copper wire and supports main/run sizes from two to one-aught AWG and tap sizes from twelve to two AWG. Its design includes a color-coded system that aligns with compatible tools for effective installation.

• Made for solid and stranded copper conductors.
• Rated for 600 VAC, suitable for diverse applications.
• Compatible with the Blackburn® compression connector line.

Product Highlights

This connector features a robust design ensuring reliable electrical connections.

Product Information

Standard Information

• Brand: Color-Keyed®
• Manufacturer: ABB

Technical Specifications

• Conductor Type: Solid/Stranded Copper
• Dimensions: 1-1/16 inches long x 31/32 inches high
• Finish: Plain
• Specifications: 50 Die Code, Orange
• Type: Standard
• Voltage Rating: 600 VAC
• Shape: C
• Total Taps: 1
• Main/Run Size: 2 to 1/0 AWG
• Tap Size: 12 to 2 AWG
• Material: Copper
