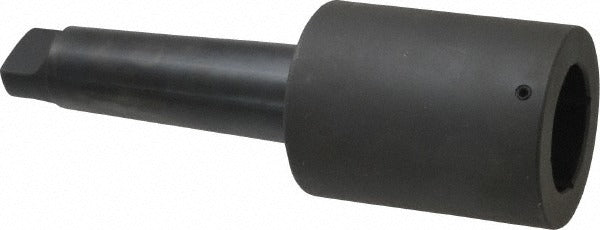

Collis Tool 70509 Standard Tapping Driver MT5 Taper Shank

Product Description

The COLLIS TOOL 70509 is a standard tapping driver designed for use with MT5 taper shank machine tool spindles. It accepts a 2.5-inch tap and provides a tap entry depth of 3.5 inches, making it suitable for deep-hole or production tapping operations. The driver features a 4.625-inch projection and a tap shank diameter of 2.1 inches, with a tap shank square of 1.575 inches. Weighing 11.17 pounds, this is a heavy-duty tooling component installed by machinists and toolroom professionals on milling machines, drill presses, or tapping centers.

This tapping driver is intended for industrial and production machine shop environments where consistent, repeatable tapping performance is required. The MT5 taper shank provides a rigid, self-holding connection to compatible machine spindles. It is well-suited for applications demanding accurate thread formation in metal workpieces using standard tap geometries. Installation and setup are performed by skilled machinists or toolroom technicians as part of a tooling changeover or new setup on compatible equipment.

Key Features

• Accepts 2.5-inch tap for medium-to-large threading operations
• MT5 taper shank provides a secure, self-holding spindle connection
• 3.5-inch tap entry depth supports deeper hole tapping applications
• 4.625-inch projection allows clearance in typical machine setups
• Tap shank square of 1.575 inches for positive drive engagement
• Heavy-duty construction at 11.17 pounds for production-grade use

Compatibility

Designed as an OEM-style tapping driver for machine tool spindles accepting an MT5 Morse taper shank. Confirm spindle taper size and tap shank dimensions before installation.

Installation Notes

Installation is performed by a qualified machinist or toolroom technician. Power down and lock out the machine before mounting or removing the taper shank driver from the spindle. Clean the MT5 taper surfaces on both the driver and the spindle bore before seating to ensure full contact and prevent fretting. Follow the machine manufacturer's procedures for drawbar engagement or drift removal when changing tooling.
