Coleman Cable S1-7966-311P Blower Motor 1/6 Hp 900 Rpm

Product Description

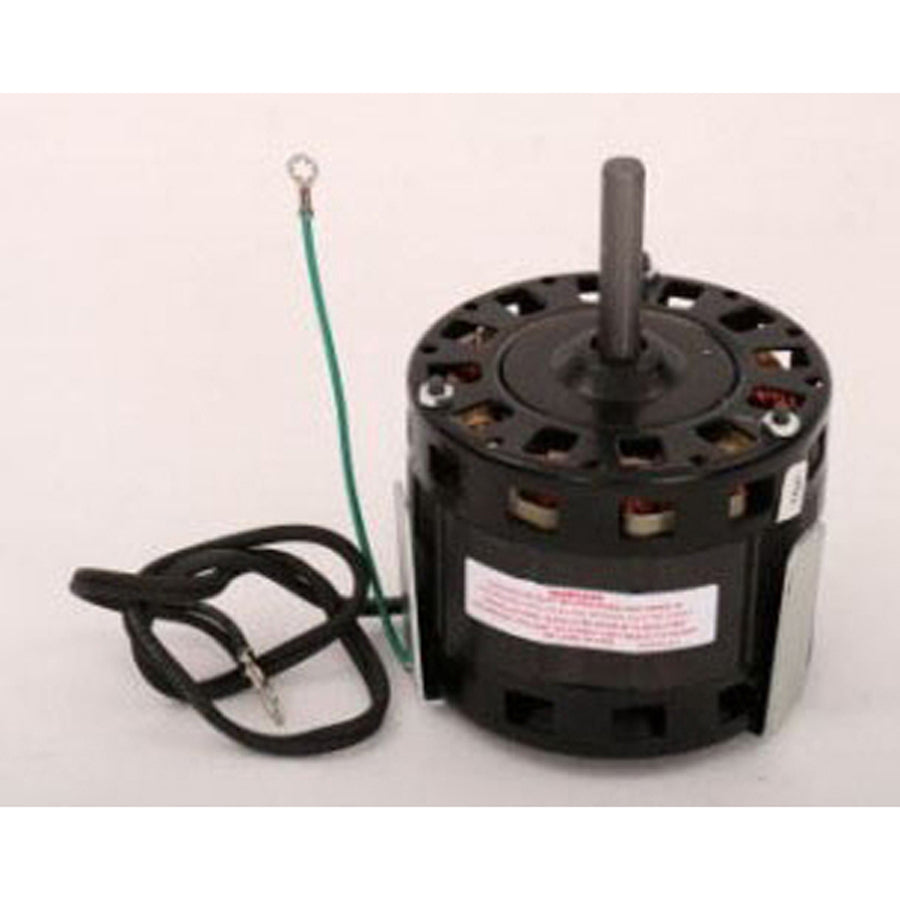

The COLEMAN CABLE S1-7966-311P is a single-phase blower motor designed for gas furnace air-handling applications. Rated at 1/6 horsepower and 900 RPM, this motor operates on 115 volts AC at 60 Hz and delivers consistent single-speed airflow across the heat exchanger and into the duct system. It serves as the drive unit for the blower assembly, moving conditioned air through the supply side of the system. Licensed HVAC technicians handling residential furnace service and blower replacements are the primary installers for this component.

This blower motor is specified for use on 7900 Series gas furnaces. It fits into the blower compartment and connects to the existing blower wheel and motor mount. Single-speed operation keeps wiring and control-board integration straightforward, making it a direct-fit option for technicians servicing equipment in this furnace family. Residential forced-air heating systems in both new installs and service-replacement scenarios are the typical application.

Key Features

• 1/6 HP output suited to residential furnace blower loads
• 900 RPM single-speed operation for consistent airflow delivery
• 115 VAC 60 Hz 1-phase power supply matches standard residential electrical service
• OEM-style replacement designed for 7900 Series gas furnace blower assemblies

Compatibility

Specified for use on 7900 Series gas furnaces.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out power to the furnace at the disconnect switch and breaker before removing the blower assembly or any electrical connections. Verify that the replacement motor shaft diameter, rotation direction, and mounting configuration match the original before securing the motor in the blower housing. Follow all applicable local electrical codes and manufacturer wiring diagrams when reconnecting the motor leads to the control board.

Technical Specifications

• Motor Type: Blower Motor
• Horsepower: 1/6 HP
• Speed: 1-Speed
• RPM: 900
• Voltage: 115 VAC
• Frequency: 60 Hz
• Phase: 1-Phase
• Application: Furnace

Standard Information

• Brand: COLEMAN CABLE
• Manufacturer Part Number: S1-7966-311P
