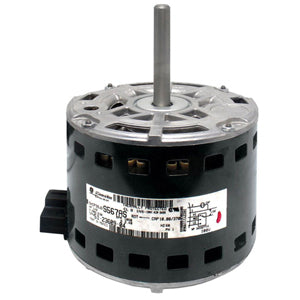

Coleman Cable S1-1468-120P Furnace Blower Motor 1/6 Hp

Product Description

The COLEMAN CABLE S1-1468-120P is a single-phase furnace blower motor rated at 1/6 HP and 230 volts AC, 60 Hz. It draws 3.2 amps and operates at 9000 RPM, providing the airflow needed to distribute conditioned air through residential or light-commercial forced-air furnace systems. Licensed HVAC technicians typically handle the installation, replacing failed or worn blower motors during routine service calls or system overhauls. The motor's 230-volt single-phase configuration is standard in many forced-air heating applications.

This blower motor is intended for furnace installations where a 230 VAC, 60 Hz, single-phase motor is required. It delivers 9000 RPM output suitable for driving squirrel-cage blower assemblies in forced-air heating systems. The 1/6 HP rating places it in a common range for residential furnace blower applications. No compatible model numbers were specified in the product data, so consult the original equipment documentation or motor nameplate to confirm fitment before ordering.

Key Features

• 1/6 HP output for residential and light-commercial furnace blower duty
• 230 VAC, 60 Hz, single-phase operation
• 3.2 amp draw for straightforward circuit sizing
• 9000 RPM speed rating for consistent airflow delivery
• Designed as a blower motor replacement for forced-air furnace systems

Compatibility

Designed as an OEM-style replacement blower motor for forced-air furnace systems requiring a 230 VAC, 60 Hz, single-phase motor rated at 1/6 HP. Verify nameplate specifications and shaft dimensions against the existing motor before installation.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all electrical power to the furnace before removing the existing motor or handling any wiring. Confirm that the replacement motor's shaft diameter, rotation direction, and mounting configuration match the original unit. Follow applicable NEC and local mechanical codes when reconnecting electrical circuits.

Technical Specifications

• Type: Blower Motor
• Application: Furnace
• Voltage: 230 VAC
• Frequency: 60 Hz
• Phase: 1-Phase
• Amperage: 3.2 amps
• Horsepower: 1/6 HP
• Speed: 9000 RPM

Standard Information

• Brand: COLEMAN CABLE
• Manufacturer Part Number: S1-1468-120P
