Coleman Cable 7900-7611 Furnace Lower Door Panel

Product Description

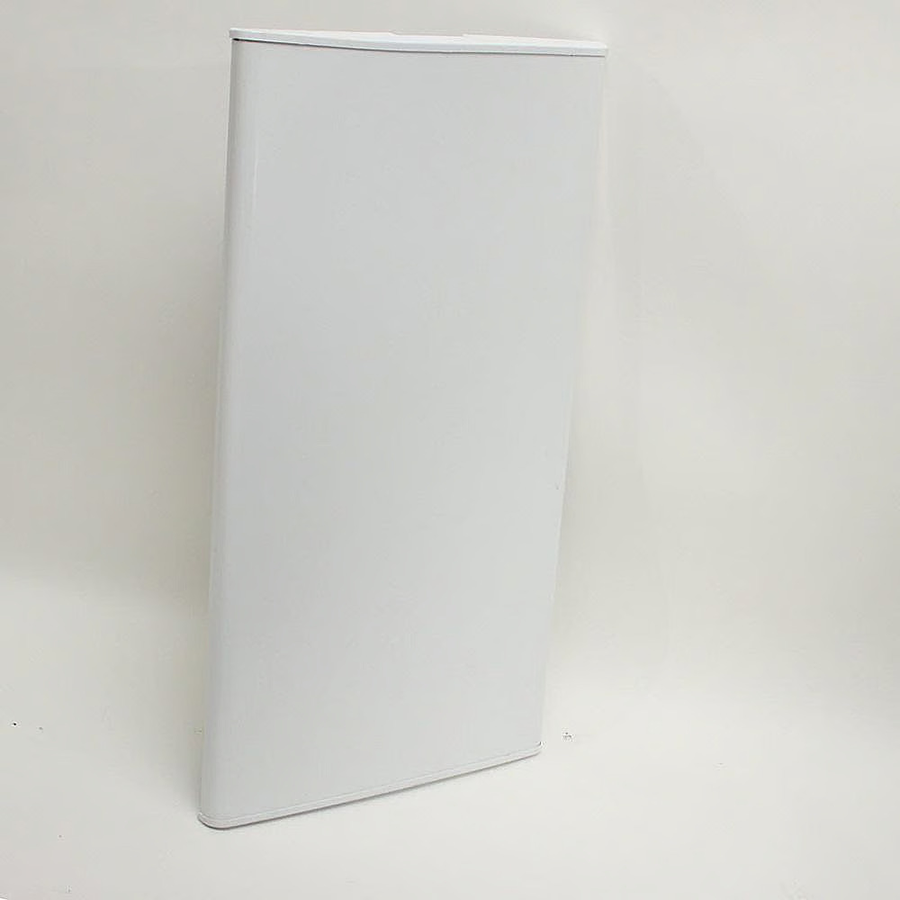

The COLEMAN CABLE 7900-7611 is a white metal lower door panel designed as an OEM replacement for Coleman gas furnaces. This tall lower door panel restores the original enclosure of the furnace cabinet, providing proper access coverage and helping maintain airflow integrity within the unit. Measuring 35.5 inches by 19.5 inches, it ships with two female clips that snap directly onto the furnace frame for a secure, tool-minimal installation. HVAC technicians and service contractors working on Coleman residential gas furnaces will find this a direct drop-in replacement for the original factory door.

This door panel is specifically designed for use with Coleman gas furnaces in residential applications. Compatible furnace model families include the DGAA, DGAH, DGPA, and DGPH series. It serves as a direct replacement when the original lower door panel is damaged, missing, or compromised. The metal construction and factory clip system ensure proper fitment without modification.

Key Features

• White metal construction for durability and factory-matched appearance
• Tall lower door format fits standard Coleman gas furnace cabinet openings
• Dimensions of 35.5 inches by 19.5 inches match OEM specifications
• Includes 2 female clips for tool-free snap-on attachment to furnace frame
• Direct OEM-style replacement for part number 373-19801-740

Compatibility

Compatible with Coleman DGAA, DGAH, DGPA, and DGPH series gas furnaces. Replaces OEM part numbers 373-19801-740 and 37319801740.

Installation Notes

Installation should be performed by a qualified HVAC technician. Before replacing the door panel, shut off the furnace and set the thermostat to the off position. Align the two female clips with the corresponding mounting points on the furnace cabinet and press firmly until the panel snaps securely into place. Confirm the door sits flush and the cabinet is fully closed before restoring power or gas supply to the unit.

Technical Specifications

• Color: White
• Material: Metal
• Width: 19.5 inches
• Height: 35.5 inches
• Included Hardware: 2 female snap clips

Standard Information

• Brand: COLEMAN CABLE
• Manufacturer Part Number: 7900-7611
