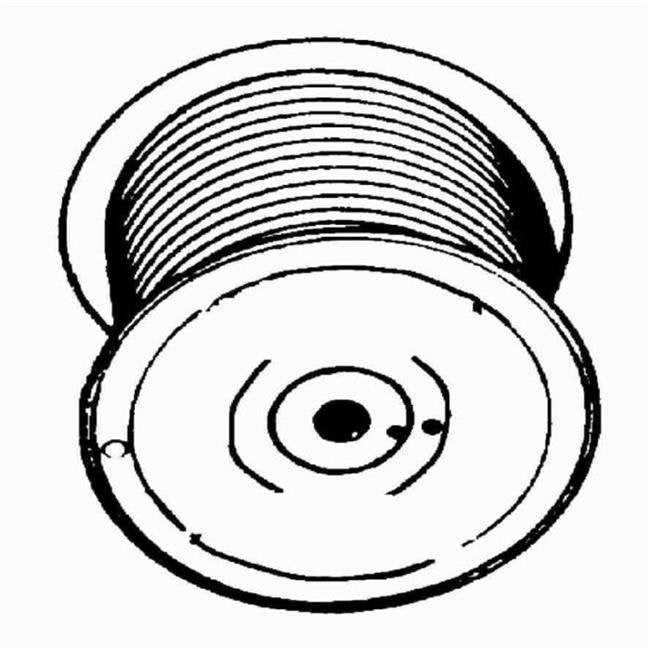

Coleman Cable 55308 18/8 thermostat cable 150V (250 ft)

Product Description

The Coleman Cable 55308 is an 18/8 thermostat cable supplied on a 250 ft spool with 18 AWG conductors and a 150 V rating. It features a PVC jacket and polypropylene conductor insulation with an outside diameter of 0.202 in and an operating range of -20 to +60 �C. Conductors are solid bare copper and the cable suits thermostat and low-voltage control wiring applications.

• 18 AWG, 8 conductors (18/8) with solid bare copper conductors
• 250 ft length, 150 V rating, outside diameter 0.202 in
• PVC jacket, polypropylene conductor insulation, operating temperature -20 to +60 �C

Product Highlights

Thermostat and low-voltage control wiring for thermostats, HVAC controls, remote control circuits, doorbells and alarm systems.

Product Information

Standard Information

• Brand: COLEMAN CABLE
• Manufacturer Part Number: 55308
• Country of Origin: United States

Technical Specifications

• Brand: COLEMAN CABLE
• Manufacturer Part Number: 55308
• Alternate Part Number: 553080407
• Wire Gauge: 18 AWG
• Wire Description: 18/8 thermostat cable
• Number of Conductors: 8
• Conductor Material: Solid bare copper
• Conductor Insulation Material: Polypropylene
• Conductor Insulation Colors: Blue, Green, Red, White, Yellow
• Voltage Rating: 150 V
• Length: 250 ft
• Outside Diameter: 0.202 in
• Jacket Material: PVC
• Jacket Color: Brown
• Operating Temperature Range: -20 to +60 �C
• Min Operating Temperature: -20 �C
• Max Operating Temperature: +60 �C
• Certifications / Rating: CL2
• Item Weight: 12.75 Pounds
