COLD CONTROL ASSEMBLY 120/240VAC 25 FLA 252108 for Duke 252108

Product Description

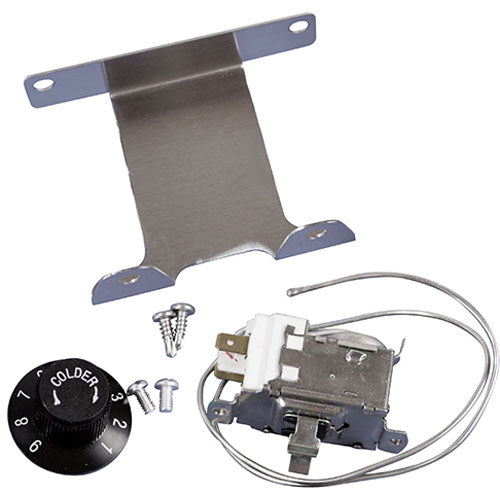

This item for Duke with MPN 252108 is a cold control assembly designed for effective temperature regulation. It includes a mounting bracket, knob, and screws for easy installation. This control operates at 120/240VAC with a current rating of twenty-five FLA.

• Includes a mounting bracket, knob, and screws
• Temperature control with a capillary of twenty-four
• Compatible with Duke refrigerated back bar model RUF-48

Product Highlights

This assembly is essential for maintaining optimal temperatures in refrigeration applications.

Product Information

Standard Information

• Product Notes: Cold control with mounting bracket, knob, and screws
• Hazardous: False

Technical Specifications

• Dim Weight: 0.25422
• Weight: 0.31
• Length: 6.5 inches
• Width: 4 inches
• Height: 2 inches
• Knob Diameter: 1.5 inches
• 2 Each 1/4 Tab Terminal
• 2 Each Slot Head Machine Screws: 8-32 x 5/16
• Mounting Bracket Size: 3.75 x 3 inches OD
• Mounting Centers for Control: 2.1875 inches
• Mounting Centers for Sheet Metal Screws: 3.25 inches
• 2 Each Phillips Head Sheet Metal Screws: #8 x 0.5 inches
