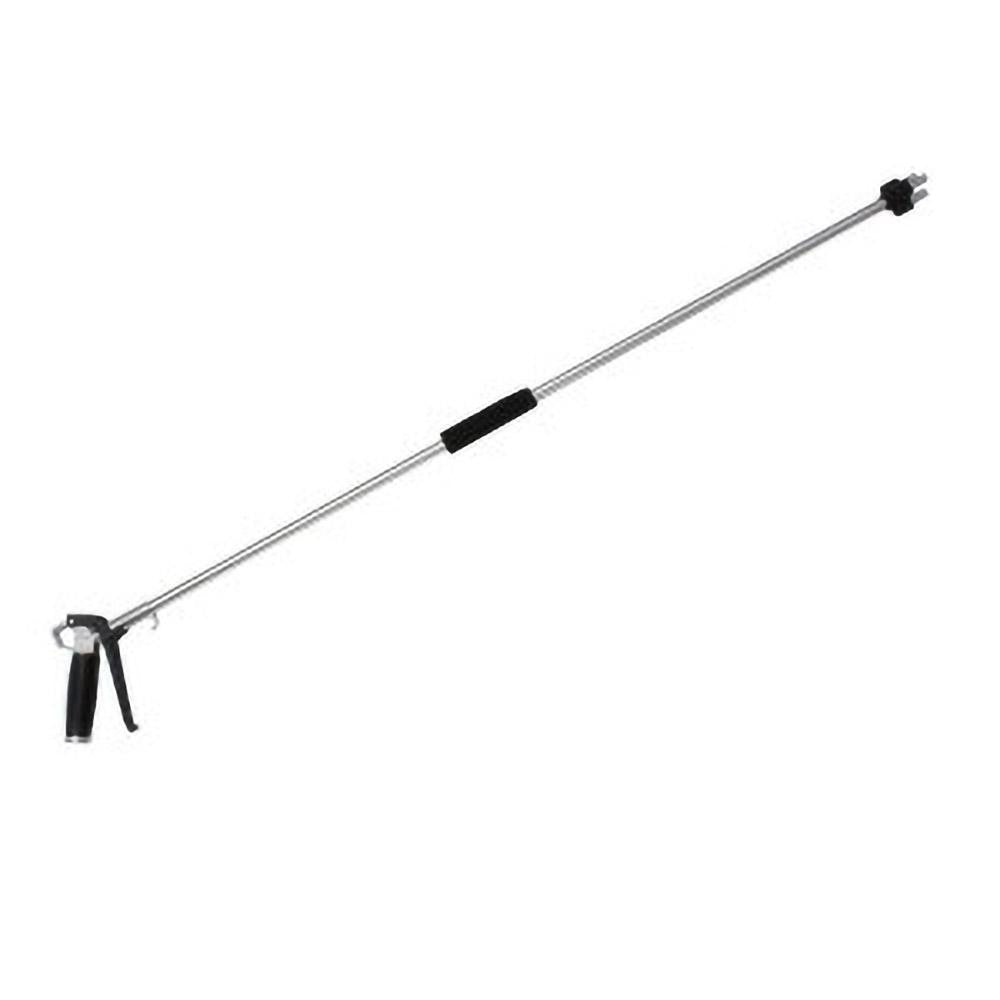

Coilhose Pneumatics TYP3836-53 Air Blow Gun 36 Inch

Product Description

The COILHOSE PNEUMATICS TYP3836-53 is a pistol-grip air blow gun built for high-volume compressed air work in industrial and trade environments. It uses a high flow multi-jet nozzle machined from aluminum, matched to an aluminum body, and is rated at 51 SCFM for demanding blowoff and cleaning tasks. The 36-inch tube keeps the operator's hand away from the work surface. An integral variable trigger allows controlled, proportional airflow rather than fixed on/off output. The inlet is 3/8 NPT for direct connection to standard shop air drops. Pneumatic technicians, maintenance mechanics, and shop personnel are the primary users.

This blow gun suits general industrial maintenance, production line blowoff, part cleaning, and assembly area air service. The 36-inch tube length is appropriate where the operator needs extended reach into machinery, enclosures, or tight work areas. The OSHA-compliant nozzle design limits dead-end pressure to meet federal workplace safety requirements. Operating temperature range spans -40 degrees F to 140 degrees F, making it suitable for most indoor and light outdoor shop environments year-round.

Key Features

• High flow multi-jet nozzle delivers 51 SCFM for fast, effective blowoff
• OSHA-compliant nozzle design meets federal shop air safety standards
• Variable trigger provides stepless control over airflow output
• 36-inch aluminum tube extends operator reach and reduces hand fatigue
• Integral hanging hook for convenient storage at the air drop
• 80 dB decibel rating — lower noise profile compared to standard open-orifice guns

Compatibility

Designed for use with standard 3/8 NPT compressed air supply lines and shop air systems operating within the rated temperature range of -40 degrees F to 140 degrees F.

Installation Notes

Installation is performed by connecting the 3/8 NPT male inlet to a compatible female air fitting or quick-disconnect coupler on the supply line. Depressurize and bleed the air line before making or breaking any connection. Verify supply pressure does not exceed the gun's rated maximum before use. No special tools are required beyond appropriate NPT thread sealant for the inlet connection.
