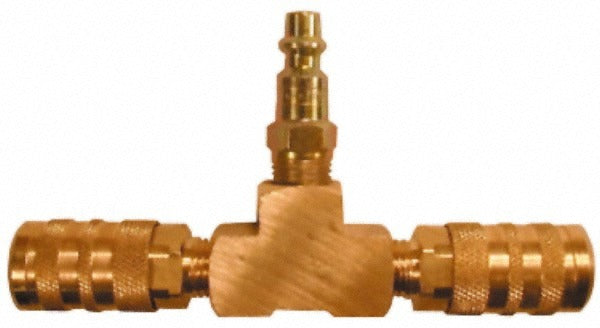

Coilhose Pneumatics T004-15X Pneumatic Manifold

Product Description

The COILHOSE PNEUMATICS T004-15X is a pneumatic manifold designed to split a single compressed air supply line into multiple outlet circuits. It features one 1/4 inch inlet port and two 1/4 inch outlet ports, making it a straightforward solution for distributing shop air to multiple tools or downstream components from a single supply source. The manifold measures 5 inches long, 3/4 inch wide, and 2-5/8 inches high. It weighs 0.54 pounds. This type of fitting is commonly installed by industrial maintenance technicians, pipefitters, and pneumatic systems specialists working on compressed air distribution in shop, production, or service bay environments.

The T004-15X fits into compressed air distribution setups where a single supply line needs to feed two downstream devices simultaneously. Typical applications include tool stations, pneumatic control panels, and light industrial assembly lines. The industrial interchange coupler type ensures broad compatibility with standard pneumatic quick-connect systems found in most shop environments. It is sold individually and is suited for both new installations and replacement service work.

Key Features

• 1 inlet port and 2 outlet ports for splitting a single compressed air supply into two circuits
• 1/4 inch inlet and 1/4 inch outlet port sizing for standard shop air line connections
• Industrial interchange coupler type for broad compatibility with common pneumatic quick-connect fittings
• Compact footprint at 5 inches long, 3/4 inch wide, and 2-5/8 inches high
• Lightweight construction at 0.54 pounds for easy inline installation

Compatibility

Designed as an OEM-style replacement manifold for industrial interchange pneumatic systems using standard 1/4 inch port connections.

Installation Notes

Installation should be performed by a qualified pneumatic technician or pipefitter. Depressurize and lock out the compressed air supply before removing any existing fittings or manifolds. Verify that all thread types and port sizes match the existing supply line and downstream connections before assembly. Apply appropriate thread sealant per the fitting manufacturer guidelines and applicable shop air system standards.
