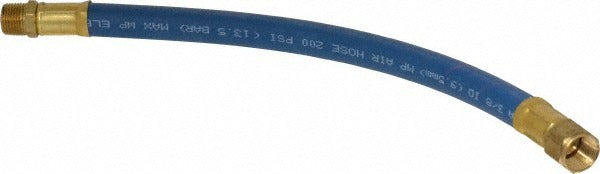

Coilhose Pneumatics RP0612S Lead-in Whip Hose 3/8 in

Product Description

The COILHOSE PNEUMATICS RP0612S is a lead-in whip hose designed to connect a compressed air supply line to a tool or pneumatic device at the point of use. Built from neoprene, this 1-foot hose measures 3/8 inches inside diameter and is rated for a working pressure of 200 psi. It handles temperatures from -40 degrees F to 212 degrees F, making it suitable for demanding shop and field environments. End connections are FNPT x MNPT swivel, allowing the fitting to rotate during installation and reducing hose twist at the tool connection. Pneumatic technicians and mechanical contractors use this type of short hose to improve flexibility and reduce wear on the main air supply line.

Lead-in whip hoses are commonly installed in industrial, automotive, and general shop settings where a short, flexible drop between an air reel or manifold and a pneumatic tool is needed. The 1-foot length is a standard drop for fixed tool stations or hose reel terminations. The neoprene construction resists oil, abrasion, and moderate heat, making it appropriate for production floor and service bay use. The swivel MNPT end reduces kinking and torque transfer to the main hose assembly during tool operation.

Key Features

• 3/8 inch inside diameter for standard pneumatic tool airflow
• 200 psi working pressure rating
• Operating temperature range: -40 degrees F to 212 degrees F
• Neoprene construction resists oil and abrasion
• FNPT x MNPT swivel end connections reduce hose twist
• 1-foot length suited for tool drop and hose reel termination applications

Compatibility

Designed as a standard lead-in whip hose replacement for compressed air systems using 3/8 inch FNPT x MNPT swivel fittings at tool connection points.

Installation Notes

Installation is performed by pneumatic technicians or mechanical contractors familiar with compressed air system fittings. Depressurize the air supply line completely before disconnecting or installing any hose fitting. Apply thread sealant appropriate for pneumatic service to NPT connections and tighten to hand-tight plus the number of turns recommended by the fitting manufacturer. Inspect the swivel joint and hose body for leaks after pressurizing the system.
