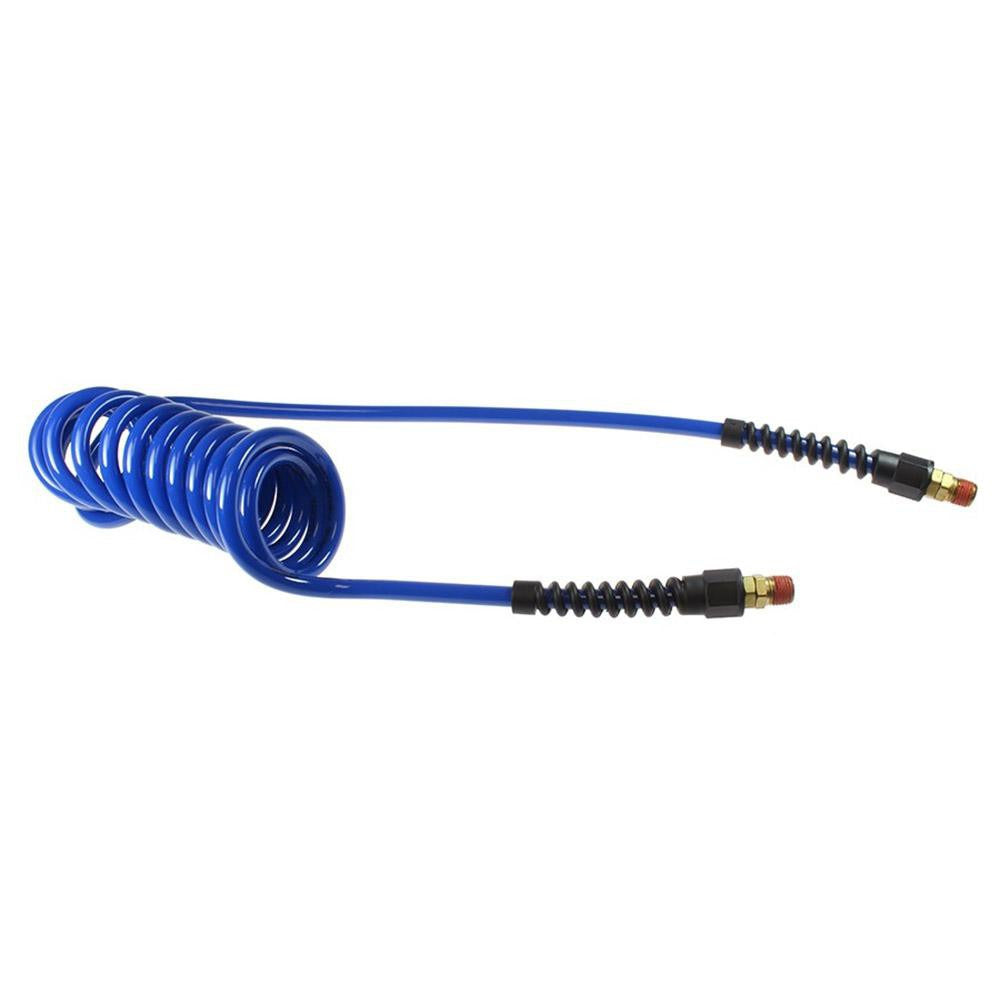

Coilhose Pneumatics PU316-5B-B Coiled Air Hose 5 Ft

Product Description

The COILHOSE PNEUMATICS PU316-5B-B is a coiled self-storing polyurethane air hose designed for use in pneumatic tool and equipment applications. It features a 3/16 inch inside diameter and a 5-foot extended length, with a maximum working pressure rating of 145 psi. Both ends are fitted with 1/4 inch male swivel fittings with strain relief to reduce stress at the connection points and extend service life. The hose is blue in color and constructed from polyurethane, which provides flexibility across a wide temperature range. It is suited for installation by HVAC technicians, pneumatic equipment mechanics, and other trade professionals who require a compact, recoiling hose for stationary or portable air supply setups.

This hose is intended for light-duty to medium-duty pneumatic service in workshop, field service, and equipment maintenance environments. The coiled design keeps the work area clear and reduces trip hazards by retracting when not under tension. The strain relief fittings at each end protect the hose body at the most vulnerable flex points. It is appropriate for residential and commercial service use wherever a short, self-storing air hose with swivel connections is required.

Key Features

• 3/16 inch inside diameter polyurethane hose construction
• 5-foot extended length in a self-storing coiled format
• 145 psi maximum working pressure rating
• 1/4 inch male swivel x male swivel end fittings with strain relief
• Brass fittings for corrosion resistance at connection points
• Operating temperature range from -40 degrees F to 125 degrees F
• Blue color for easy identification in multi-hose setups

Compatibility

Designed as an OEM-style replacement or direct-fit coiled air hose for pneumatic systems using 1/4 inch male swivel connections and requiring a 3/16 inch ID supply line.

Installation Notes

Depressurize the air supply line fully before connecting or disconnecting this hose. Hand-tighten swivel fittings and verify there are no leaks at operating pressure before placing the hose in service. Avoid routing the hose across sharp edges or high-heat surfaces that could degrade the polyurethane jacket. Installation should follow applicable shop safety procedures and any relevant local compressed air system codes.
