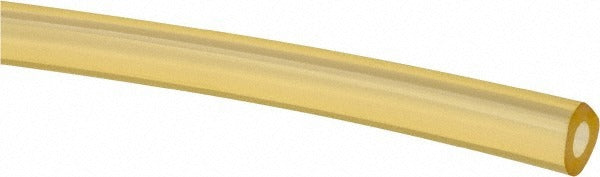

Coilhose Pneumatics PTL0402-1000TY Polyurethane Tube 126 Psi

Product Description

The COILHOSE PNEUMATICS PTL0402-1000TY is a polyurethane pneumatic tubing supplied in a 1,000-foot coil, designed for compressed-air lines, pneumatic control circuits, and fluid-transfer applications in industrial and trade environments. The tube measures 0.125 inches inside diameter and 0.25 inches outside diameter, with a 0.0625-inch wall thickness, and carries a maximum working pressure rating of 126 psi. With a Shore hardness of 85, the polyurethane construction delivers a balance of flexibility and abrasion resistance that holds up in demanding shop and field conditions. This tubing is sold in 1-foot increments with a 25-foot minimum cut length and is typically handled by maintenance technicians, pneumatic system installers, and industrial plumbers.

This tubing is suited for low-pressure pneumatic signal lines, instrument air distribution, automation tooling feeds, and general compressed-air plumbing in residential, commercial, and light industrial settings. The yellow color aids in visual identification of pneumatic lines within multi-line installations. At 0.25 inches OD, it is compatible with standard push-to-connect and compression fittings sized for quarter-inch OD tubing. It is well-suited for routing through tight spaces where rigid pipe is impractical.

Key Features

• 126 psi maximum working pressure suits most plant-air and instrument-air applications
• Polyurethane construction provides flexibility and resistance to abrasion and kinking
• 0.125 inches ID and 0.25 inches OD fit standard quarter-inch OD push-to-connect fittings
• Shore hardness of 85 maintains shape under repeated flexing
• Yellow color supports color-coded pneumatic line identification
• 1,000-foot coil minimizes splices on large installations; sold in 1-foot increments with 25-foot minimum cut

Compatibility

Designed for use with standard push-to-connect and compression fittings sized for 0.25-inch OD pneumatic tubing in compressed-air and instrument-air systems.

Installation Notes

Installation is typically performed by pneumatic system technicians or industrial maintenance personnel. Depressurize and lock out the air supply before cutting or connecting tubing. Use a clean, square cut with a tubing cutter or sharp blade to ensure a leak-free seat in push-to-connect fittings. Verify that system operating pressure does not exceed the 126 psi maximum working pressure rating of this tubing.
