Coilhose Pneumatics PT2503-2500K Polyurethane Tubing

Product Description

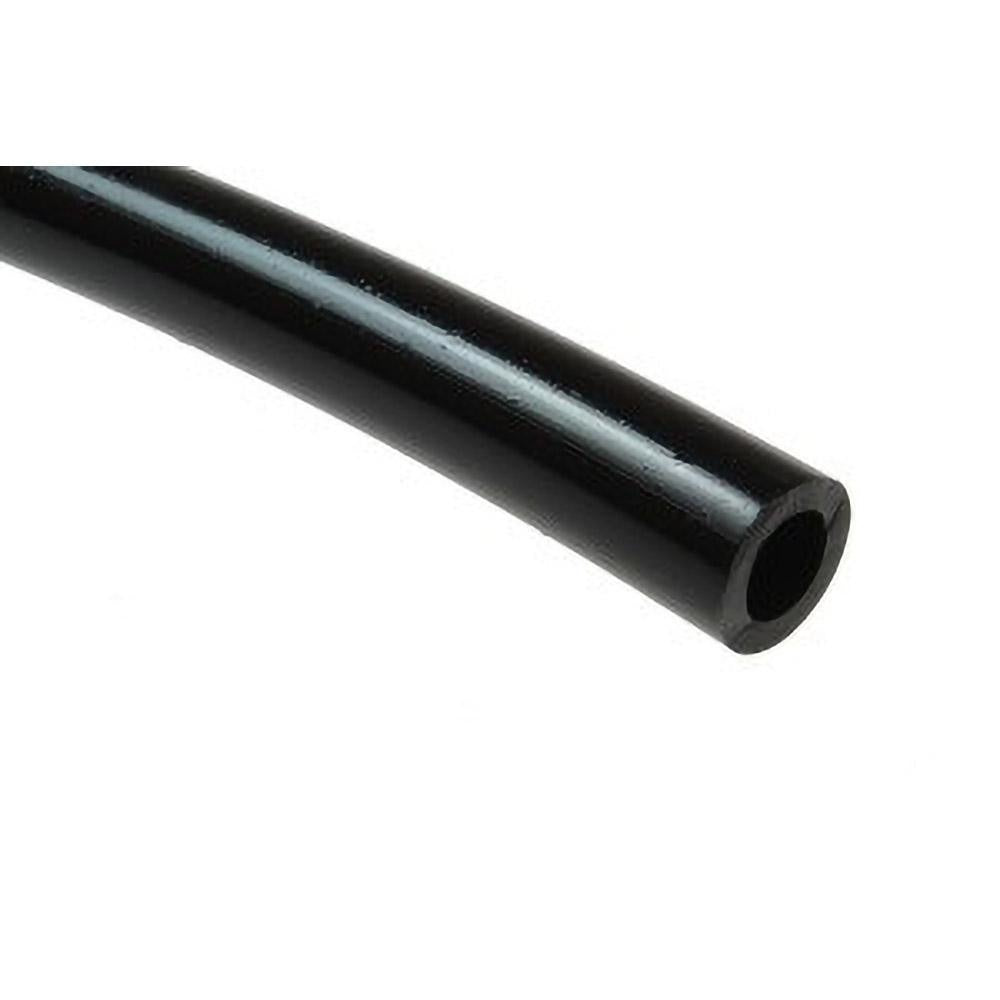

The COILHOSE PNEUMATICS PT2503-2500K is a black polyurethane pneumatic tubing supplied in a 2,500-foot coil and sold in 1-foot increments with a 25-foot minimum cut length. With a 3/32-inch inside diameter and 5/32-inch outside diameter, this tubing has a wall thickness of 1/32 inch. It handles a maximum working pressure of 120 psi and operates across a temperature range of -40 degrees F to 165 degrees F. The flexible construction and Shore 95A hardness make it a dependable choice for compressed-air lines and pneumatic control circuits in industrial and commercial environments. Licensed mechanical and pneumatic technicians are the primary installers.

This tubing is suited for light-duty pneumatic lines in manufacturing, assembly, and automation applications where flexible routing around equipment is required. It is compatible with Coilock push-to-connect fittings and Poly-Tube fittings, making integration into existing pneumatic systems straightforward. The 2,500-foot coil format is well suited for shops and service operations that cut custom lengths for multiple connections on a single job. The tubing is UL94HB compliant, indicating it meets standard flammability requirements for use in industrial environments.

Key Features

• 3/32-inch ID and 5/32-inch OD with a 1/32-inch wall thickness
• 120 psi maximum working pressure
• Operating temperature range of -40 degrees F to 165 degrees F
• Shore 95A hardness with flexible construction for easy routing
• Compatible with Coilock push-to-connect fittings and Poly-Tube fittings
• UL94HB compliant flammability rating
• 2,500-foot coil sold in 1-foot increments with a 25-foot minimum cut length

Compatibility

Designed for use with Coilock push-to-connect fittings and Poly-Tube fittings in pneumatic systems requiring 3/32-inch ID polyurethane tubing.

Installation Notes

Installation should be performed by a qualified pneumatic or mechanical technician familiar with compressed-air system requirements. Before cutting or connecting tubing, depressurize and lock out the air supply to the circuit being serviced. Use a clean, square cut when trimming tubing to ensure a proper seal at push-to-connect fittings. Verify that system operating pressure does not exceed the 120 psi rating of this tubing.
