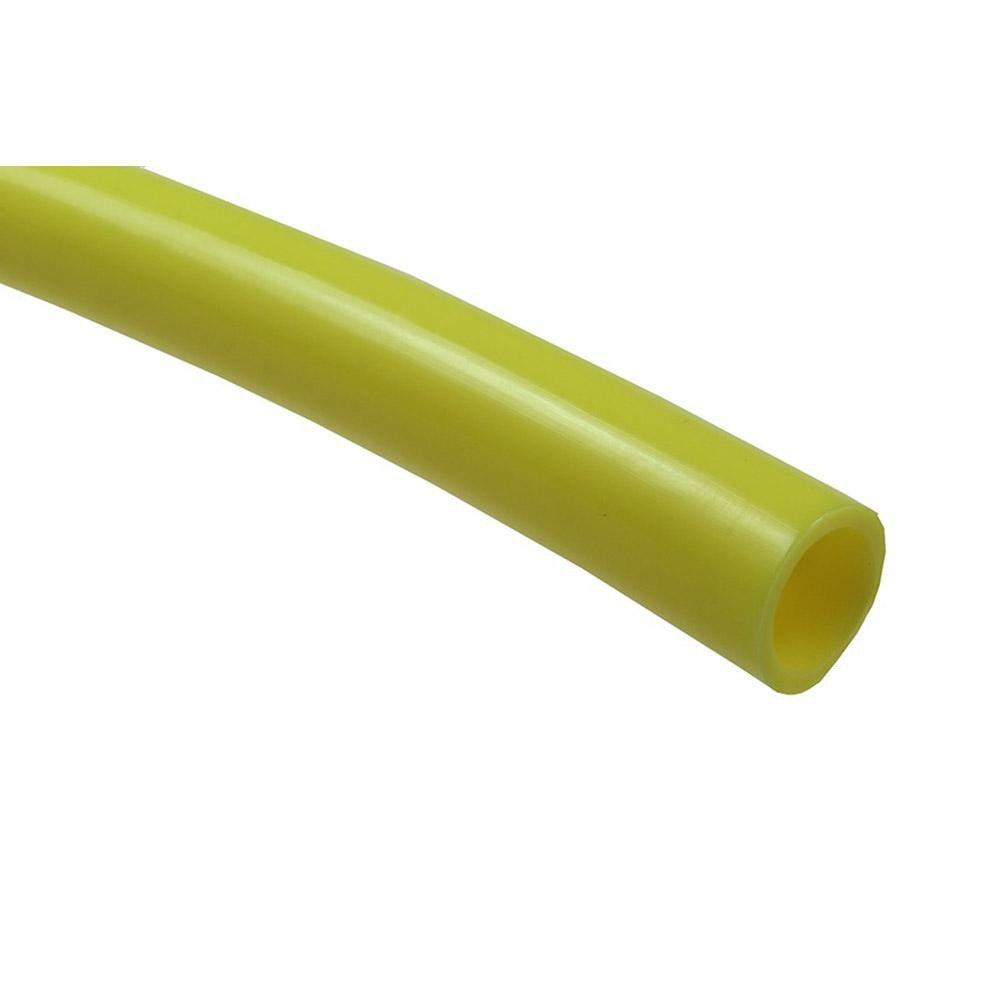

Coilhose Pneumatics PT1220-250Y Polyurethane Tube 120psi

Product Description

The COILHOSE PNEUMATICS PT1220-250Y is a flexible polyurethane pneumatic tube rated for a maximum working pressure of 120 psi and a temperature range of -40 to 165 degrees F. With a 12.00 mm outside diameter, 8.00 mm inside diameter, and a 2.00 mm wall thickness, this tube is built for compressed air distribution and pneumatic control lines in industrial and commercial settings. Shore 95A hardness gives it good kink resistance while maintaining the flexibility expected from polyurethane construction. It is sold in 1-foot increments with a 25-foot minimum cut length from a 250-foot coil.

This tube is suited for use in factories, assembly lines, maintenance shops, and other environments where reliable pneumatic delivery is required. It is compatible with Coilock Push-to-Connect Fittings and Poly-Tube Fittings, making it a straightforward fit into existing pneumatic plumbing systems. The yellow color aids in visual identification on the shop floor or within equipment panels. Typical installers include industrial maintenance technicians and pneumatic system integrators working with compressed air tools and automation equipment.

Key Features

• Flexible polyurethane construction with Shore 95A hardness for kink resistance
• Maximum working pressure of 120 psi
• Operating temperature range of -40 to 165 degrees F
• Outside diameter of 12.00 mm with 8.00 mm inside diameter and 2.00 mm wall thickness
• UL94HB compliant flame rating
• Yellow color for easy identification in pneumatic runs
• Compatible with Coilock Push-to-Connect Fittings and Poly-Tube Fittings

Compatibility

Designed for use with Coilock Push-to-Connect Fittings and Poly-Tube Fittings as stated by the manufacturer. Verify fitting bore diameter and tube OD before installation to ensure a secure push-to-connect seat.

Installation Notes

Shut off and bleed compressed air from the system before cutting or connecting tubing. Use a clean, square cut with a proper tube cutter to ensure a reliable seal in push-to-connect fittings — angled or ragged cuts will cause leaks. Confirm that working pressure and temperature at the installation point do not exceed the rated limits of 120 psi and 165 degrees F. Installation should follow applicable OSHA and compressed air system guidelines for the facility.
