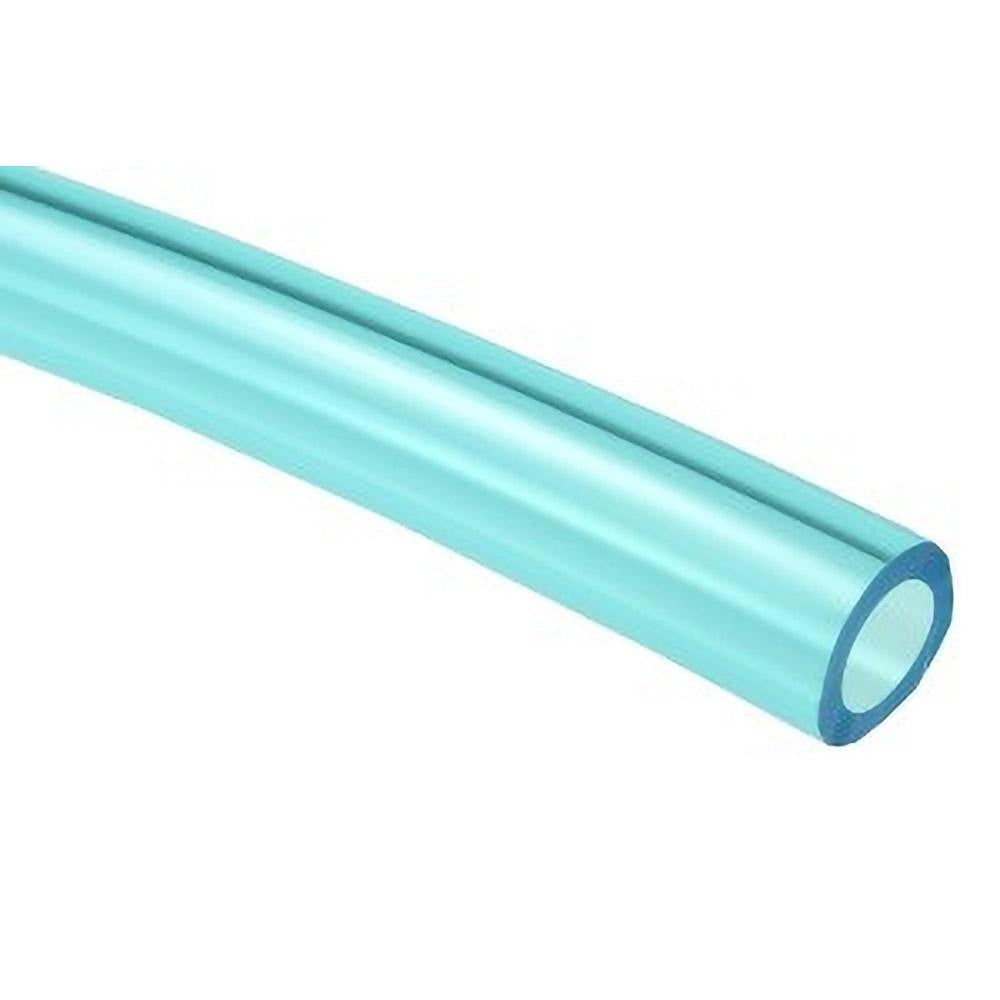

Coilhose Pneumatics PT1220-250TB Polyurethane Tube 120psi

Product Description

The COILHOSE PNEUMATICS PT1220-250TB is a flexible polyurethane pneumatic tubing designed for compressed air and fluid transfer in industrial and trade applications. Rated to 120 psi maximum working pressure and a temperature range of -40 to 165 degrees F, this tubing handles demanding shop-floor and field conditions. With a 12mm outside diameter, 8mm inside diameter, and 2mm wall thickness, it offers a reliable flow path with sufficient structural integrity for push-to-connect fitting systems. It ships in a 250-foot coil and is cut in 1-foot increments with a 25-foot minimum cut length. Licensed trades and industrial maintenance technicians are the primary installers.

This tubing is suited for use in pneumatic control lines, tool supply circuits, and automated equipment where flexibility and kink resistance matter. The Shore 95A hardness rating provides a balance between flexibility and wall rigidity, making it well suited for routing through tight spaces in both residential shop and light commercial environments. It is compatible with Coilock Push-to-Connect Fittings and Poly-Tube Fittings, making it a direct fit for common pneumatic assembly configurations used in manufacturing, fabrication shops, and HVAC equipment rigging setups.

Key Features

• 120 psi maximum working pressure for standard compressed air applications
• Wide temperature range: -40 to 165 degrees F for cold-storage and hot-shop environments
• 12mm OD, 8mm ID, 2mm wall thickness — sized for Coilock and Poly-Tube push-to-connect fittings
• Shore 95A hardness — flexible yet resistant to kinking under routing stress
• UL94HB flame-retardant compliant construction
• Blue color coding for easy circuit identification in multi-line pneumatic systems
• 250-foot coil with 1-foot increment cutting; 25-foot minimum cut length

Compatibility

Designed for use with Coilock Push-to-Connect Fittings and Poly-Tube Fittings. Suitable for pneumatic tubing circuits requiring a 12mm OD polyurethane tube in compressed air or low-pressure fluid transfer service.

Installation Notes

Installation is typically performed by industrial maintenance technicians, pneumatic system assemblers, or licensed trades working on compressed air distribution. Depressurize and lock out the pneumatic circuit before cutting or connecting tubing. Use a clean square cut with a dedicated tube cutter to ensure a proper seal in push-to-connect fittings — angled or ragged cuts will compromise the fitting seal. Route tubing away from sharp edges and heat sources to prevent abrasion or thermal degradation over time.
