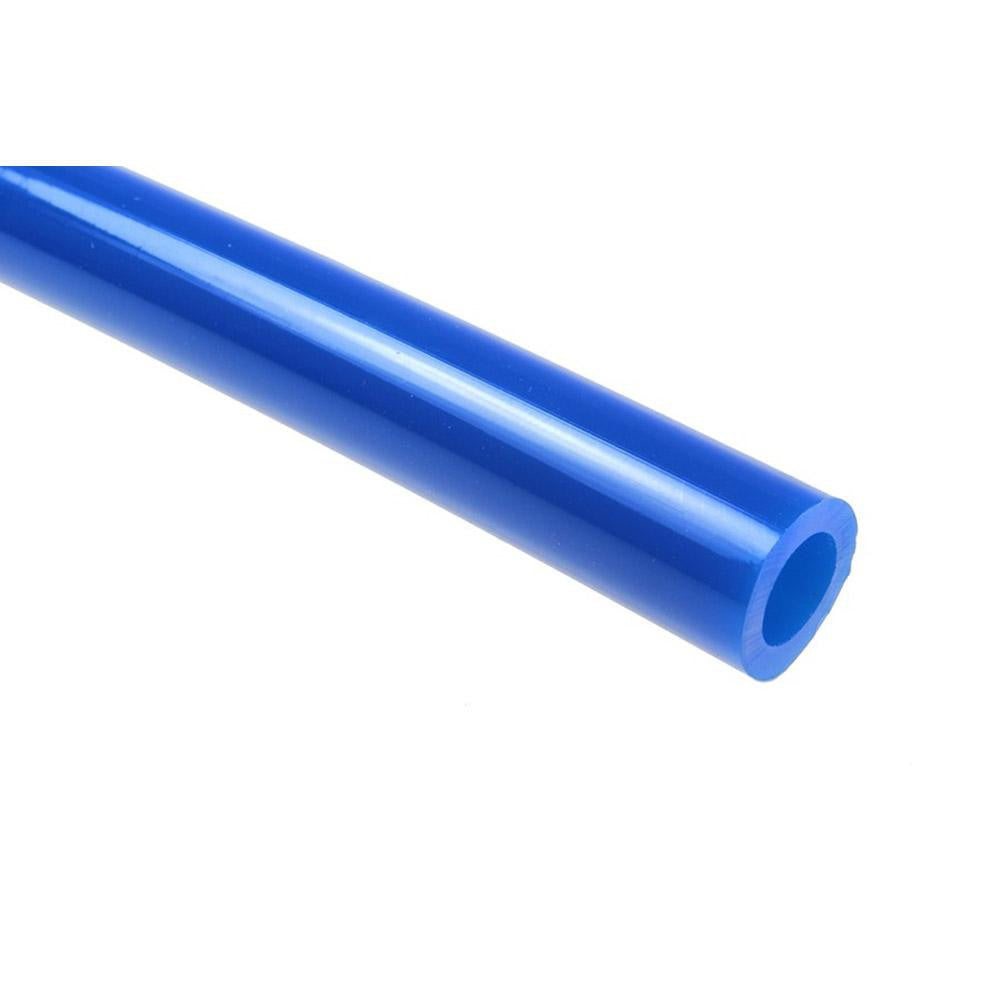

Coilhose Pneumatics PT1220-250B Polyurethane Tube 250ft

Product Description

The COILHOSE PNEUMATICS PT1220-250B is a flexible polyurethane pneumatic tube designed for use in compressed air and fluid transfer applications. It features a 12mm outside diameter, 8mm inside diameter, and 2mm wall thickness, with a maximum working pressure of 120 psi. The tube is rated for temperatures from -40 to 165 degrees F, making it suitable for a wide range of indoor and outdoor service environments. This blue tube is sold in 1-foot increments with a 25-foot minimum cut length from a 250-foot total coil. It is installed by pneumatic technicians, industrial maintenance personnel, and plumbing or mechanical contractors setting up compressed air distribution systems.

This polyurethane tube is suited for light industrial and commercial pneumatic plumbing where flexibility and kink resistance are required. Its Shore 95A hardness provides durability while retaining flexibility in routed installations. It is compatible with Coilock Push-to-Connect Fittings and Poly-Tube Fittings, making it straightforward to integrate into new or existing pneumatic lines. Typical applications include tool drops, air supply runs, and machine air feeds in shop and production environments where a clean, flexible tube solution is needed.

Key Features

• 12mm outside diameter with 8mm inside diameter and 2mm wall thickness
• Maximum working pressure of 120 psi
• Operating temperature range of -40 to 165 degrees F
• Shore 95A hardness for a balance of flexibility and durability
• UL94HB compliant flame-retardant rating
• Compatible with Coilock Push-to-Connect Fittings and Poly-Tube Fittings
• Available in 1-foot cut increments with a 25-foot minimum order quantity

Compatibility

Designed for use with Coilock Push-to-Connect Fittings and Poly-Tube Fittings. Suitable as a flexible pneumatic tube in compressed air systems requiring 12mm OD tubing.

Installation Notes

Installation should be performed by a qualified pneumatic technician or industrial maintenance professional. Depressurize and lock out the compressed air system fully before cutting, connecting, or replacing any tube section. Use a clean, square tube cut to ensure a proper seal at push-to-connect fittings. Avoid sharp bend radii that exceed the tube's flexibility rating to prevent flow restriction or premature wear.
