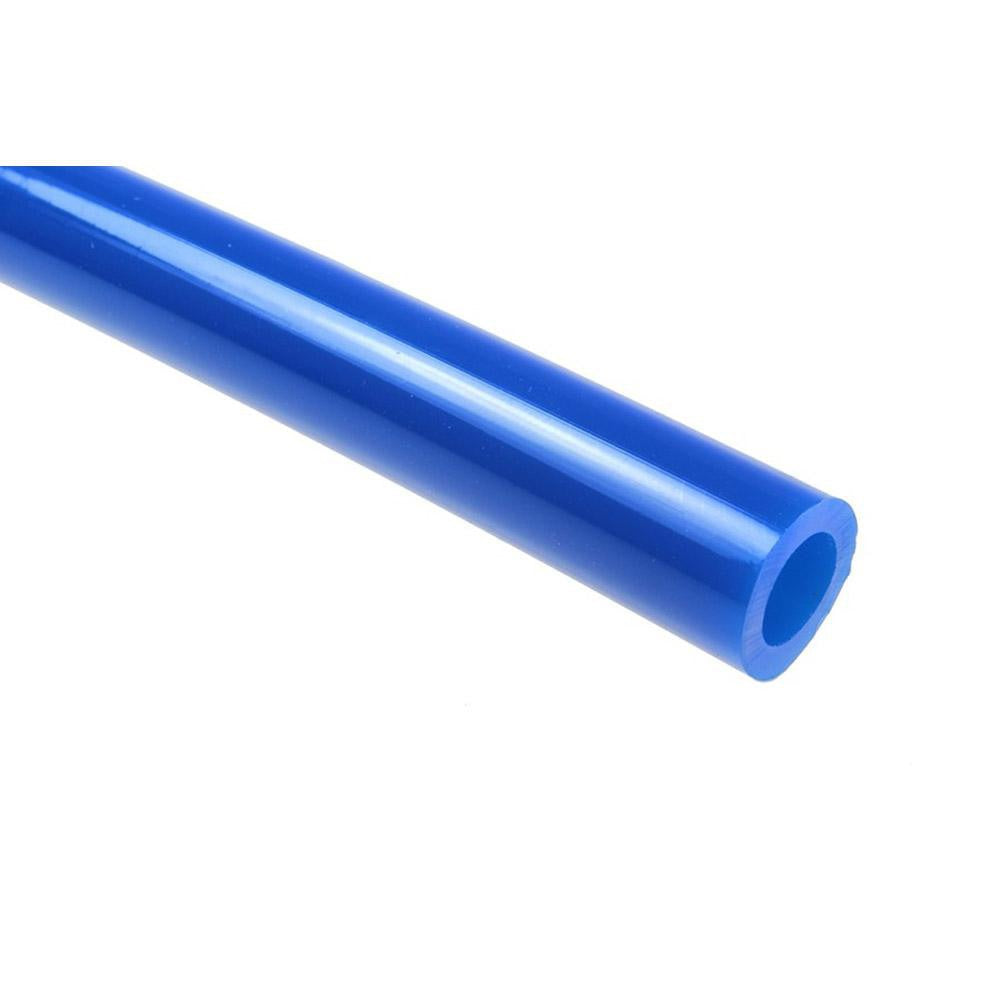

Coilhose Pneumatics PT1017-500B Polyurethane Tube 145 Psi

Product Description

The COILHOSE PNEUMATICS PT1017-500B is a flexible polyurethane pneumatic tube rated for continuous use in compressed air and fluid transfer systems. Constructed from polyurethane with a Shore 95A hardness rating, it handles working pressures up to 145 psi and operates across a temperature range of -40 to 165 degrees F. The tube has a 10.00 mm outside diameter, a 6.50 mm inside diameter, and a 1.75 mm wall thickness. It is sold by the foot in a 500-foot coil with a 25-foot minimum cut length. Licensed contractors and pneumatic system technicians typically specify this tube for both permanent installations and flexible drop lines.

This tube is suited for industrial, commercial, and light manufacturing pneumatic systems where flexibility and kink resistance are required. The blue color aids identification in multi-line installations. Compatible fittings include Coilock Push-to-Connect Fittings and Poly-Tube Fittings. It is appropriate for use in air supply lines, tool drops, and instrumentation tubing runs where a durable, abrasion-resistant flexible tube is specified. The 500-foot coil format is standard for shops and service contractors stocking bulk tubing.

Key Features

• Rated to 145 psi maximum working pressure for compressed air service
• Wide temperature range: -40 to 165 degrees F for demanding environments
• Shore 95A hardness provides flexibility without sacrificing kink resistance
• Blue color for easy line identification in multi-tube installations
• UL94HB flame-spread compliant construction
• Compatible with Coilock Push-to-Connect Fittings and Poly-Tube Fittings

Compatibility

Designed for use with Coilock Push-to-Connect Fittings and Poly-Tube Fittings. Suitable as a general-purpose flexible pneumatic supply tube in compressed air distribution systems.

Installation Notes

Depressurize and lock out the air supply before cutting or connecting this tube. Cut tubing square with a sharp tube cutter or razor blade to ensure a proper seal in push-to-connect fittings. Follow the fitting manufacturer's minimum insertion depth requirements. Verify the system operating pressure does not exceed the 145 psi rating of the tube.
