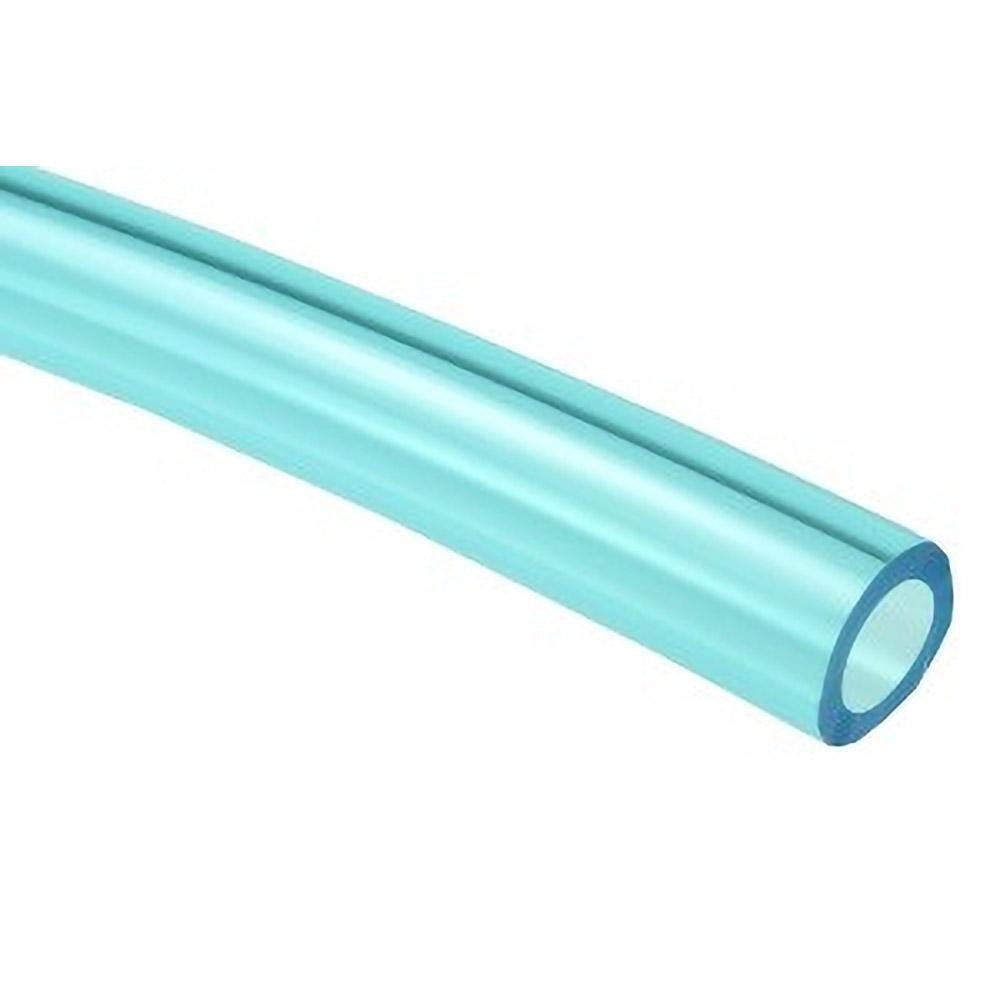

Coilhose Pneumatics PT0815-500TB Polyurethane Tube 145 Psi

Product Description

The COILHOSE PNEUMATICS PT0815-500TB is a flexible polyurethane pneumatic tubing rated for 145 psi maximum working pressure and a temperature range of -40 to 165 degrees F. With an 8 mm outside diameter, 5 mm inside diameter, and 1.5 mm wall thickness, this tubing is manufactured from Shore 95A hardness polyurethane for consistent performance under repeated flexing. It ships as a 500-foot coil and is sold in 1-foot increments with a 25-foot minimum cut length. Licensed HVAC technicians, plumbers, and pneumatic system installers use this tubing in compressed air distribution and fluid transfer applications requiring a lightweight, abrasion-resistant line.

This tubing is suited for light industrial and commercial pneumatic systems where flexibility and pressure resistance are required. Its blue color aids in line identification during installation and service. The 500-foot coil format makes it practical for larger installations or shops that cut to length for multiple runs. It is compatible with Coilock Push-to-Connect Fittings and Poly-Tube Fittings, making integration into existing pneumatic assemblies straightforward without specialized tooling for connections.

Key Features

• 145 psi maximum working pressure for compressed air service
• Operating range of -40 to 165 degrees F for broad environmental suitability
• 8 mm OD, 5 mm ID, 1.5 mm wall thickness — consistent dimensions for push-to-connect fitting engagement
• Shore 95A polyurethane construction resists abrasion and repeated flexing
• UL94HB flame-rating compliance for use in applicable installations
• Blue color coding for easy identification in multi-line pneumatic layouts
• 500-foot coil with 1-foot increment pricing and 25-foot minimum cut length

Compatibility

Designed for use with Coilock Push-to-Connect Fittings and Poly-Tube Fittings. Suitable as a general-purpose polyurethane pneumatic tube in compressed air systems requiring 8 mm OD tubing.

Installation Notes

Installation is typically performed by pneumatic system technicians or pipefitters working on compressed air distribution lines. Depressurize the system completely before cutting or connecting tubing. Use a clean, square cut to ensure a proper seal with push-to-connect fittings. Verify that all fittings and components are rated for the working pressure of the system before pressurizing.
