Coilhose Pneumatics PT0815-500R Polyurethane Tube 145 Psi

Product Description

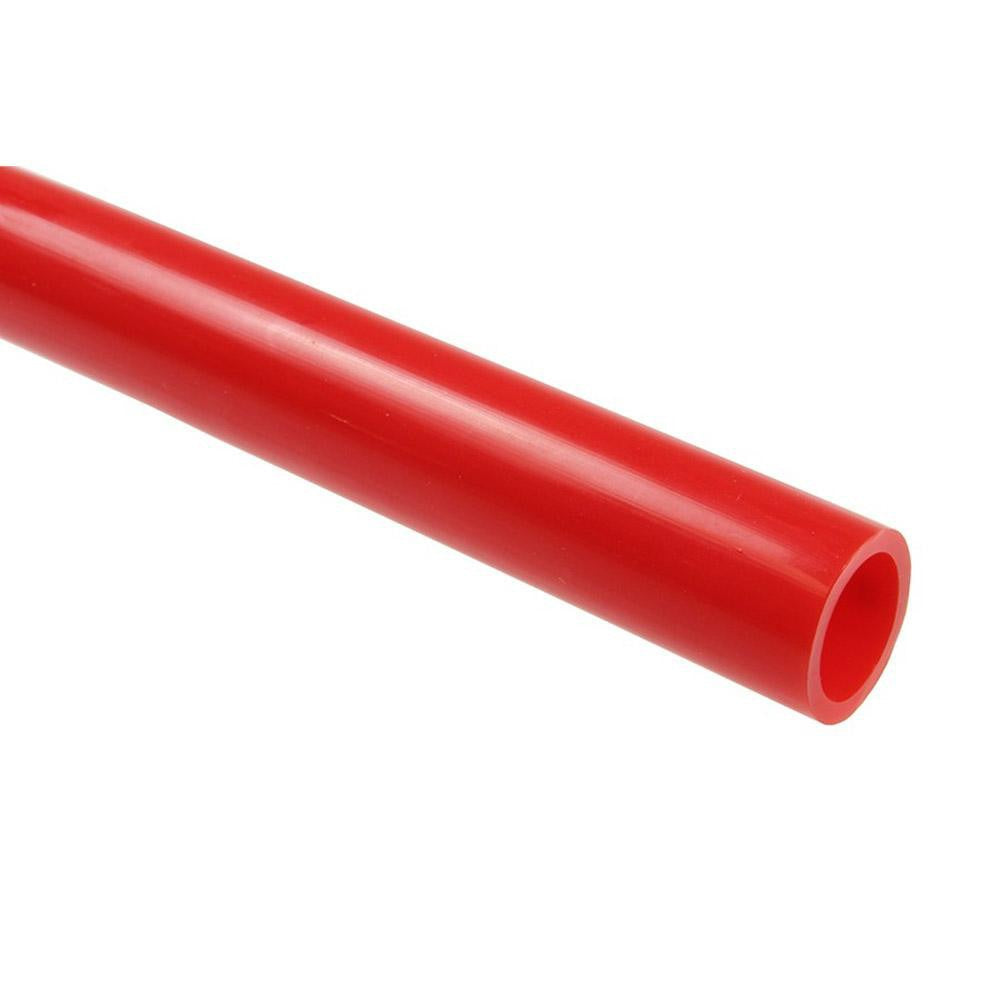

The COILHOSE PNEUMATICS PT0815-500R is a flexible polyurethane pneumatic tube rated for 145 psi maximum working pressure and a temperature range of -40 degrees F to 165 degrees F. It measures 8.00 mm outside diameter with a 5.00 mm inside diameter and a 1.50 mm wall thickness, delivering the balance of flexibility and structural integrity that pneumatic system work demands. The Shore 95A hardness rating gives it resistance to abrasion and kinking while maintaining the bend radius needed for routed installations. Licensed tradespeople and industrial maintenance technicians use this tube in compressed air distribution, automation, and pneumatic tool feed lines.

This tubing is suited for light industrial and commercial pneumatic applications where flexible, lightweight air line is required. It is sold in 500-foot coil form, priced in 1-foot increments with a 25-foot minimum cut length, making it practical for both large installations and targeted repairs. Its red color provides easy circuit identification in multi-line pneumatic panels and equipment. The tube is rated UL94HB compliant, making it appropriate for environments with flame-rating requirements.

Key Features

• 145 psi maximum working pressure for standard compressed air service
• Temperature range of -40 degrees F to 165 degrees F for varied environments
• 8.00 mm OD x 5.00 mm ID x 1.50 mm wall thickness for consistent flow and fit
• Shore 95A hardness provides abrasion resistance and kink resistance
• Red color for easy line identification in multi-circuit installations
• UL94HB compliant flame rating
• Compatible with Coilock Push-to-Connect Fittings and Poly-Tube Fittings

Compatibility

Designed for use with Coilock Push-to-Connect Fittings and Poly-Tube Fittings as specified by the manufacturer.

Installation Notes

Installation should be performed by a qualified pneumatic or industrial maintenance technician. Depressurize and lock out the compressed air system completely before cutting or connecting tubing. Use a clean, perpendicular cut with a proper tube cutter to ensure a leak-free seat in push-to-connect fittings. Avoid routing the tube near sharp edges or heat sources that exceed the rated temperature range.
