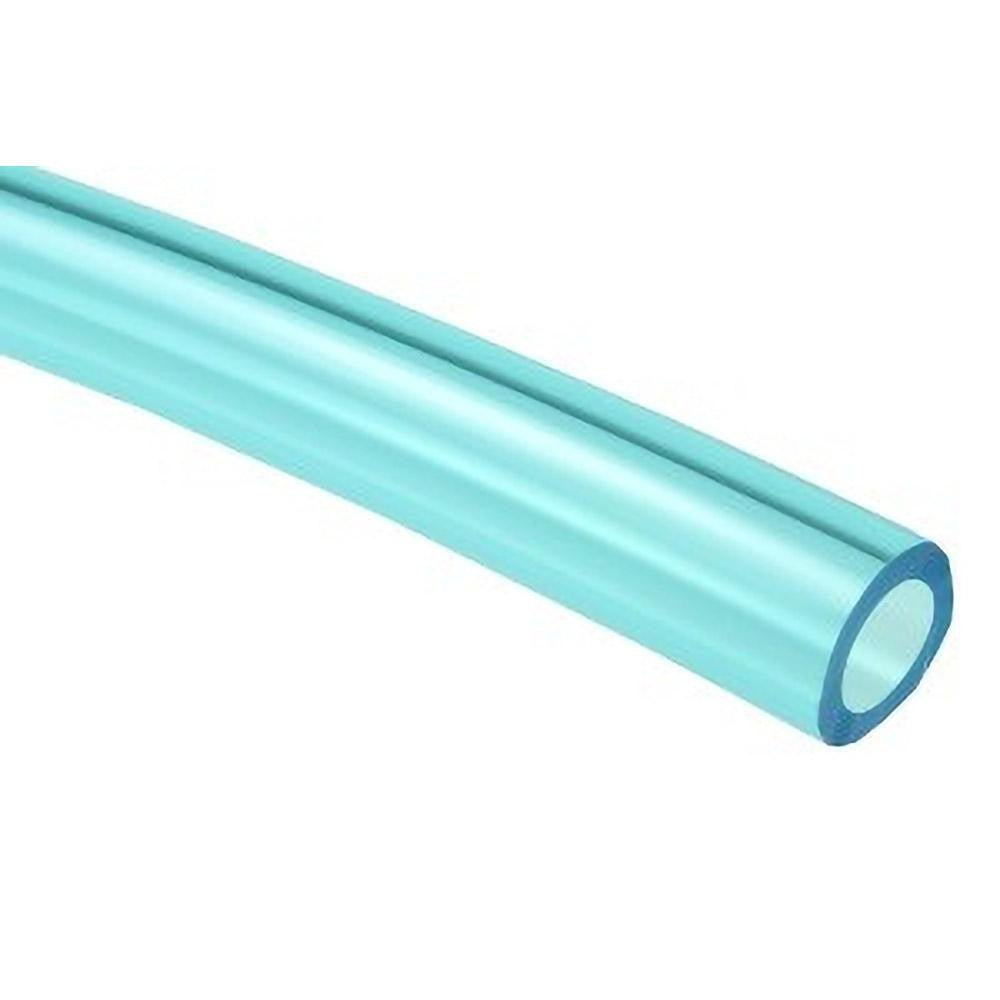

Coilhose Pneumatics PT0809-250TB Polyurethane Tube 250 Ft

Product Description

The COILHOSE PNEUMATICS PT0809-250TB is a flexible polyurethane pneumatic tube designed for compressed air and fluid transfer in industrial and shop environments. It measures 0.32 inches inner diameter by 0.5 inches outer diameter with a 0.09 inch wall thickness. Rated to 133 psi maximum working pressure and tested across a wide temperature range of -40 to 165 degrees F, this tube handles the demands of continuous production use. Hardness is rated at Shore 95A, balancing kink resistance with flexibility. The blue color aids circuit identification in multi-line installations. Licensed plumbers, pipefitters, and pneumatic system technicians are the typical installers.

This tube is suited for residential and light commercial pneumatic systems, automated assembly lines, and general shop air distribution. It is compatible with push-to-connect fittings and is sold in a 250-foot coil, cut in 25-foot minimum increments. Applications include air tool supply lines, pneumatic actuator feed lines, and instrument air circuits where flexible routing is needed around machinery and equipment. The UL94HB flame rating adds suitability for environments with ignition-risk considerations.

Key Features

• Flexible polyurethane construction rated to Shore 95A hardness for kink resistance
• 133 psi maximum working pressure for standard compressed air service
• Wide service temperature range: -40 to 165 degrees F
• 0.32 inch ID by 0.5 inch OD with 0.09 inch wall thickness
• UL94HB compliant flame rating
• Compatible with Coilock push-to-connect fittings and Poly-Tube fittings
• Blue color for easy line identification in multi-circuit installations

Compatibility

Designed for use with Coilock push-to-connect fittings and Poly-Tube fittings. Suitable as a general-purpose flexible pneumatic supply line in compressed air systems requiring 0.5 inch OD tubing.

Installation Notes

Installation should be performed by a qualified pneumatic technician or pipefitter. Depressurize and lock out the air supply before cutting or connecting tubing. Use a sharp, square tube cutter to ensure clean ends for proper push-to-connect seating. Avoid routing near sharp edges or heat sources that could exceed the 165 degrees F temperature rating.
