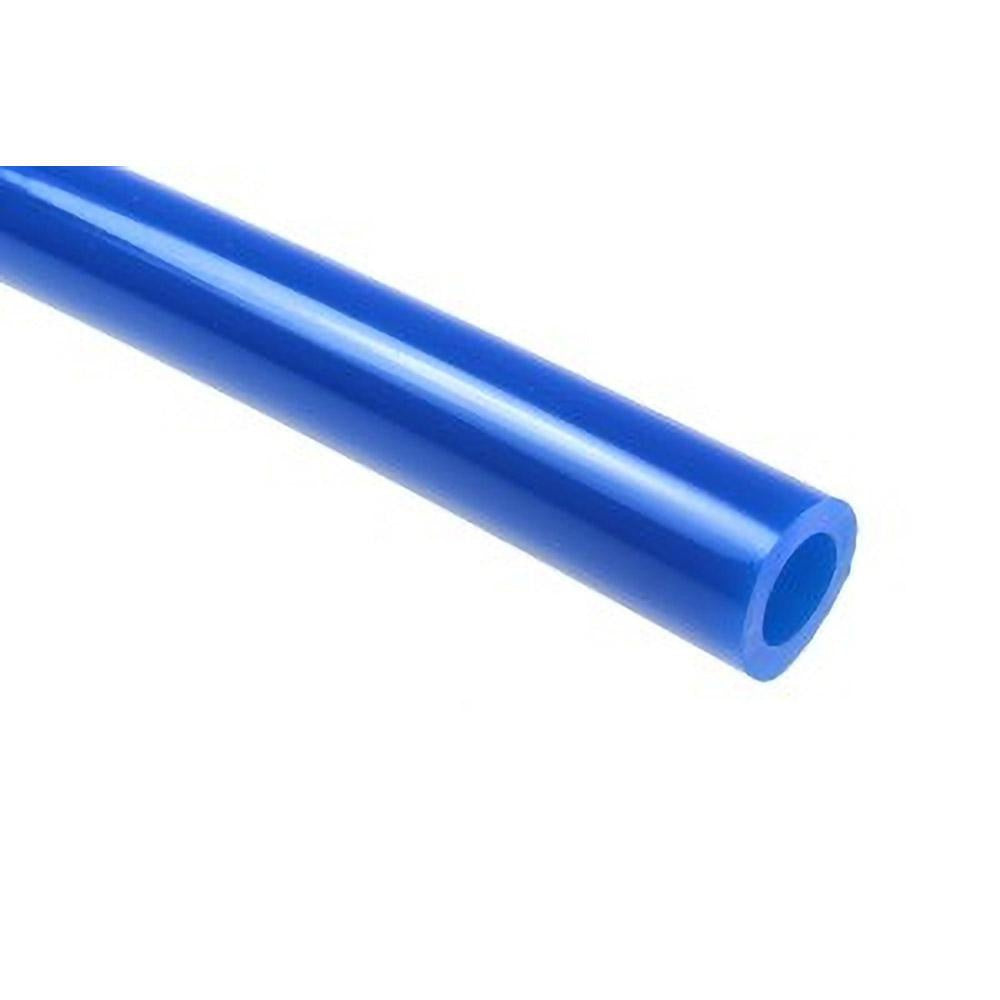

Coilhose Pneumatics PT0610-1000B Polyurethane Tube 125 Psi

Product Description

The COILHOSE PNEUMATICS PT0610-1000B is a flexible polyurethane pneumatic tubing supplied in a 1,000-foot coil and sold in 1-foot increments with a 25-foot minimum cut length. Rated to 125 psi maximum working pressure and rated for temperatures from -40 to 165 degrees F, this tube handles demanding shop and field pneumatic applications. It features a 6 mm outside diameter, 4 mm inside diameter, and 1 mm wall thickness with a Shore 95A hardness rating, giving it the flexibility needed for routing around equipment while maintaining structural integrity under pressure. Licensed HVAC technicians, plumbers, and industrial service pros commonly specify this tubing for compressed air distribution and pneumatic control lines.

This polyurethane tube is suited for residential and commercial pneumatic systems where a lightweight, flexible, and kink-resistant air line is required. It is compatible with Coilhose Coilock push-to-connect fittings and Poly-Tube fittings, making it a practical choice for quick-connect pneumatic assemblies. The blue color aids in line identification in multi-line installations. Sold per linear foot, it allows installers to cut exactly the length needed on the job, reducing waste on complex routing applications.

Key Features

• 125 psi maximum working pressure for standard compressed air service
• Operating temperature range of -40 to 165 degrees F for hot and cold environments
• 6 mm OD and 4 mm ID with 1 mm wall thickness for consistent dimensional accuracy
• Shore 95A hardness — flexible yet resistant to abrasion and kinking
• UL94HB flame-spread compliant construction
• Compatible with Coilock push-to-connect fittings and Poly-Tube fittings for tool-free connections
• Blue color coding for easy identification in multi-line pneumatic systems

Compatibility

Designed for use with Coilhose Coilock push-to-connect fittings and Poly-Tube fittings. Suitable as a general-purpose flexible pneumatic air line in compressed air distribution applications.

Installation Notes

Installation is typically performed by industrial maintenance technicians, HVAC mechanics, or pneumatic system installers. Depressurize and isolate the air supply before cutting or connecting tubing. Use a clean, square cut with a tube cutter or sharp blade to ensure proper seating in push-to-connect fittings. Avoid routing near sharp edges or high-heat surfaces that could exceed the rated temperature limits.
