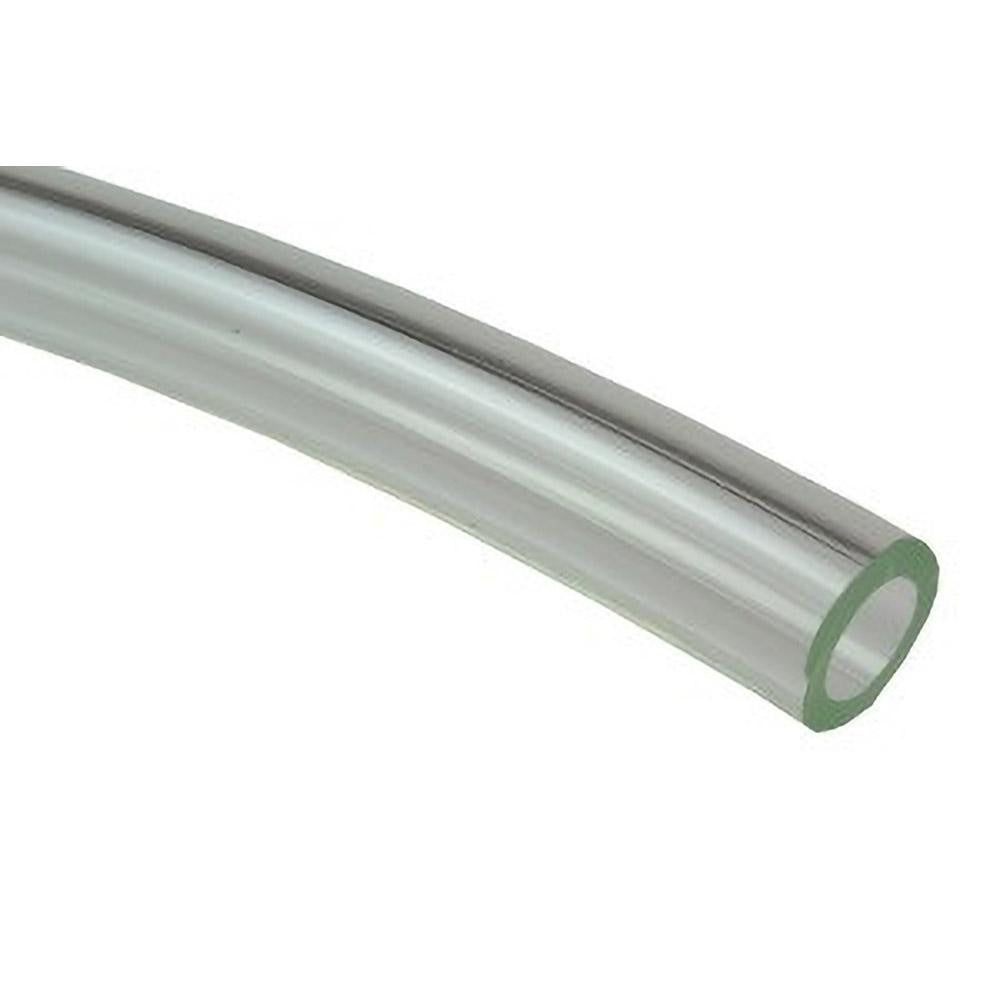

Coilhose Pneumatics PT0404-1000TC Polyurethane Tube 1/4 in Od

Product Description

The COILHOSE PNEUMATICS PT0404-1000TC is a flexible polyurethane pneumatic tubing rated for continuous use in compressed air and fluid transfer applications. With a 5/32 inch inside diameter and 1/4 inch outside diameter, the tube has a 3/64 inch wall thickness and a Shore 95A hardness rating. It handles working pressures up to 123 psi and operates across a temperature range of -40 degrees F to 165 degrees F. The clear color allows visual flow monitoring. Licensed HVAC techs, plumbers, and industrial service professionals use this tubing where a reliable, lightweight air line is needed between components or at point of use.

This tubing is suited for residential and light commercial pneumatic systems, shop air distribution, and instrument air lines. It is sold in 25 foot minimum cut lengths from a 1,000 foot coil, priced per foot increment. The PT0404-1000TC is rated UL94HB compliant for flame classification and is compatible with Coilock push-to-connect fittings and poly-tube fittings, making it straightforward to terminate without specialized tooling. It performs reliably in tight routing paths due to its flexible construction.

Key Features

• 5/32 inch ID and 1/4 inch OD with 3/64 inch wall thickness for consistent flow and pressure retention
• 123 psi maximum working pressure suitable for standard shop and instrument air systems
• Temperature range of -40 degrees F to 165 degrees F supports cold-start and warm-environment service
• Clear polyurethane construction allows visual inspection of flow without disconnecting the line
• Shore 95A hardness provides flexibility without kinking in routed installations
• UL94HB compliant flame classification for use in regulated environments

Compatibility

Designed for use with Coilock push-to-connect fittings and poly-tube fittings as specified by the manufacturer.

Installation Notes

Installation is typically performed by HVAC technicians, pipefitters, or pneumatic system mechanics. De-energize and depressurize the air supply before cutting or connecting tubing. Use a clean, square cut with a dedicated tubing cutter to ensure a proper seal at push-to-connect fittings. Minimum cut length from coil stock is 25 feet; plan cuts accordingly to avoid waste.
