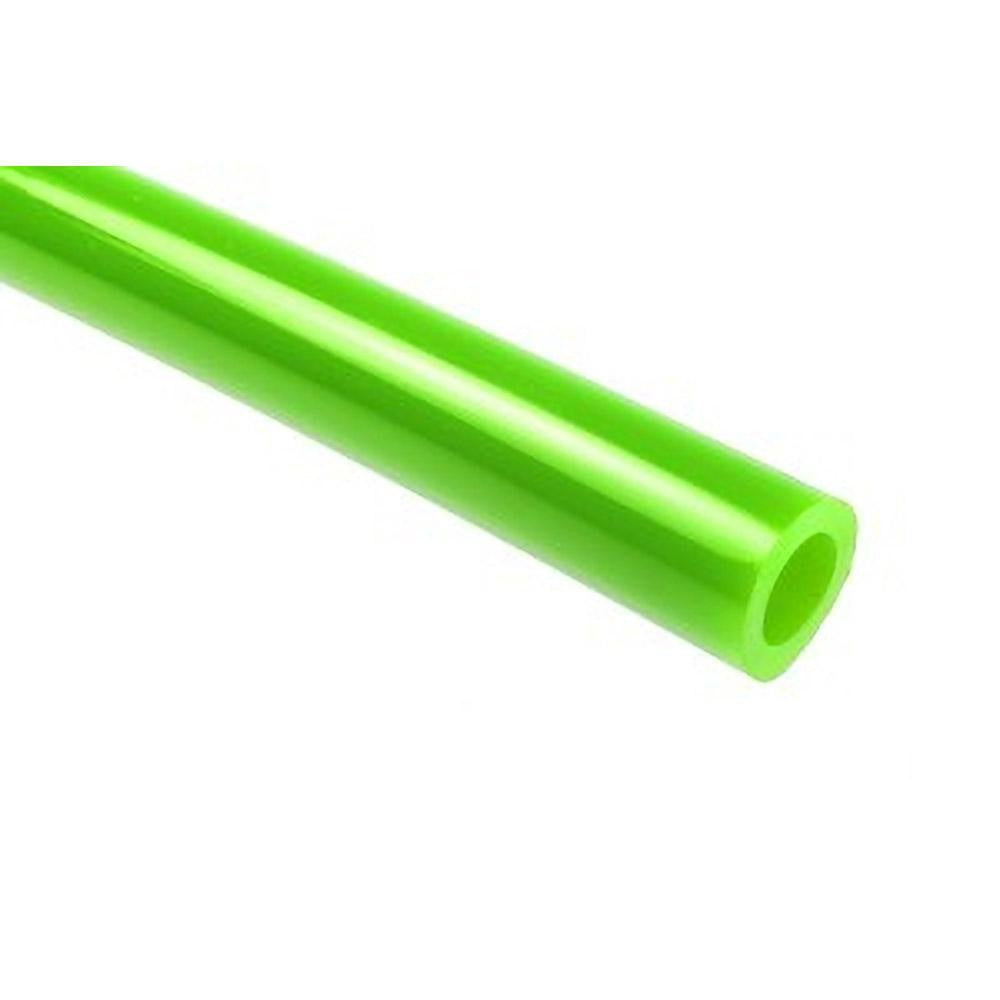

Coilhose Pneumatics PT0404-1000NG Polyurethane Tube 1000 Ft

Product Description

The COILHOSE PNEUMATICS PT0404-1000NG is a flexible polyurethane pneumatic tube designed for use in compressed air and fluid transfer lines across industrial and light commercial applications. Measuring 5/32 inch ID by 1/4 inch OD with a 3/64 inch wall thickness, this tube handles a maximum working pressure of 123 psi and operates across a temperature range of -40 to 165 degrees F. Rated at Shore 95A hardness and UL94HB compliant, it offers a balance of flexibility and durability suited for demanding pneumatic routing. The tube is supplied in a 1,000-foot coil in a high-visibility neon green color, sold and cut in 1-foot increments with a 25-foot minimum cut length.

This tube is well suited for pneumatic control systems, automated equipment, and tooling lines where a lightweight, flexible air line is required. Its neon green color supports quick visual identification in multi-line installations. Designed specifically for use with Coilock Push-to-Connect Fittings and Poly-Tube Fittings, it integrates directly into standard push-to-connect pneumatic assemblies found in manufacturing, packaging, and general industrial environments. The 1,000-foot coil format is practical for shops and contractors stocking tube for ongoing installations or service calls.

Key Features

• 5/32 inch ID by 1/4 inch OD with 3/64 inch wall thickness for consistent flow and pressure retention
• Rated to 123 psi maximum working pressure
• Wide operating temperature range: -40 to 165 degrees F
• Shore 95A hardness — flexible yet kink-resistant for routed installations
• UL94HB compliant flame-resistance rating
• High-visibility neon green color for easy identification in multi-line systems
• Compatible with Coilock Push-to-Connect Fittings and Poly-Tube Fittings

Compatibility

Designed for use with Coilock Push-to-Connect Fittings and Poly-Tube Fittings. Suitable for standard 1/4 inch OD push-to-connect pneumatic fitting assemblies in industrial and light commercial pneumatic systems.

Installation Notes

Installation is typically performed by industrial maintenance technicians or pneumatic system assemblers. Depressurize and lock out the air supply before cutting or connecting tube. Use a clean, square cut with a proper tube cutter to ensure a leak-free seat in push-to-connect fittings. Verify all fittings are rated for the system operating pressure before pressurizing the line.
