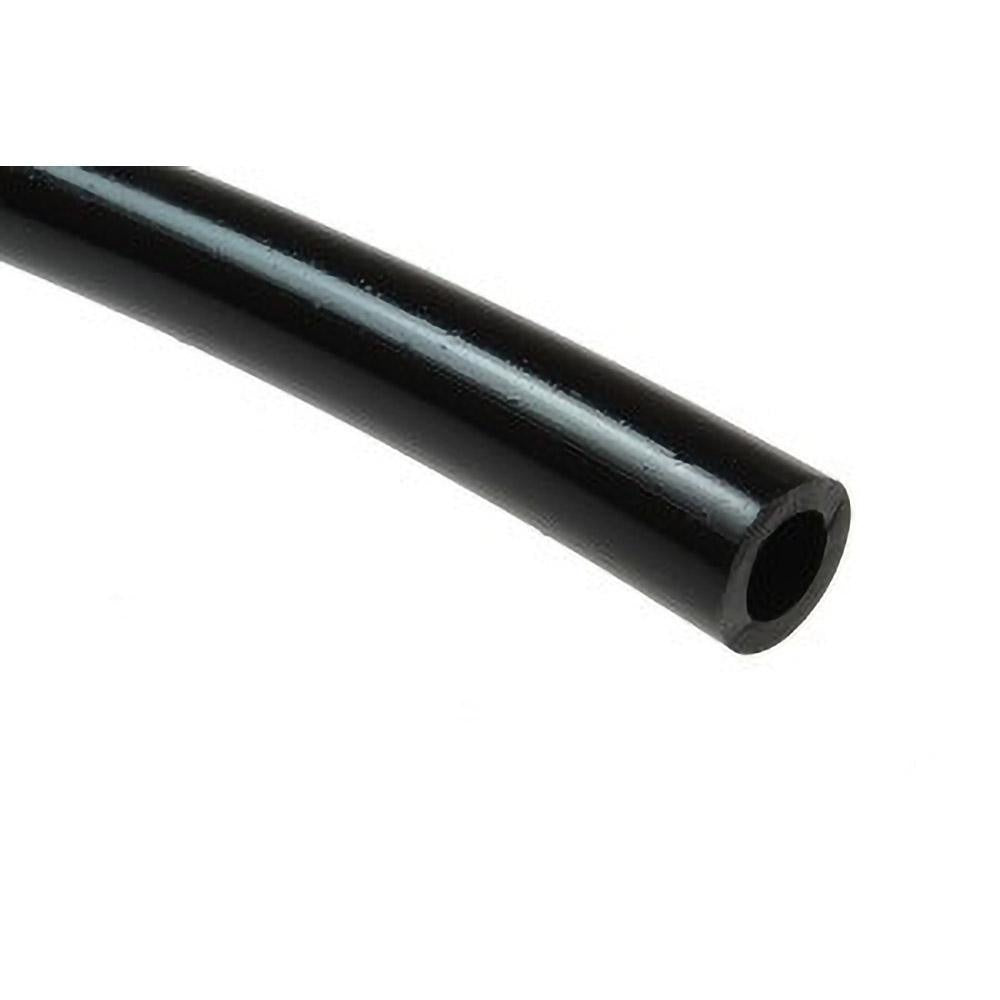

Coilhose Pneumatics PT0404-1000K Polyurethane Tube 1/4in Od

Product Description

The COILHOSE PNEUMATICS PT0404-1000K is a flexible polyurethane pneumatic tube designed for use in compressed air and fluid transfer systems. It features a 5/32 inch inside diameter and a 1/4 inch outside diameter with a 3/64 inch wall thickness. Rated to a maximum working pressure of 123 psi and an operating temperature range of -40 to 165 degrees F, this tube handles demanding shop and industrial environments. Supplied as a 1,000 foot coil and sold in 1 foot increments with a 25 foot minimum cut length, it suits contractors, maintenance techs, and pneumatic system installers who need flexible, cut-to-length tubing on the job.

This tube is suited for light industrial and commercial pneumatic plumbing where flexible, routable tubing is needed between air supply lines, valves, cylinders, and pneumatic tools. Its Shore 95A hardness provides resistance to kinking while maintaining the flexibility required for tight routing paths. The black color helps resist UV degradation in exposed installations. It is compatible with Coilock push-to-connect fittings and Poly-Tube fittings, making it straightforward to terminate without special tooling in most pneumatic panel and machine-line applications.

Key Features

• 5/32 inch ID and 1/4 inch OD with 3/64 inch wall thickness for consistent airflow and pressure retention
• Rated to 123 psi maximum working pressure for standard shop air and light industrial service
• Operating range of -40 to 165 degrees F suits both cold-storage and heated production environments
• Shore 95A hardness delivers kink resistance while remaining flexible for tight routing
• UL94HB flame-retardant compliance for installations where fire rating is required
• Sold in 1 foot increments from a 1,000 foot coil with a 25 foot minimum cut length to reduce waste

Compatibility

Designed for use with Coilock push-to-connect fittings and Poly-Tube fittings as specified by the manufacturer.

Installation Notes

Installation is typically performed by pneumatic system technicians or industrial maintenance personnel. Depressurize and lock out the air supply before cutting or connecting tubing. Cut tubing squarely with a tube cutter or sharp blade to ensure a proper seal at push-to-connect fittings. Verify that all fittings and working pressure ratings are compatible with the system operating pressure before returning the system to service.
