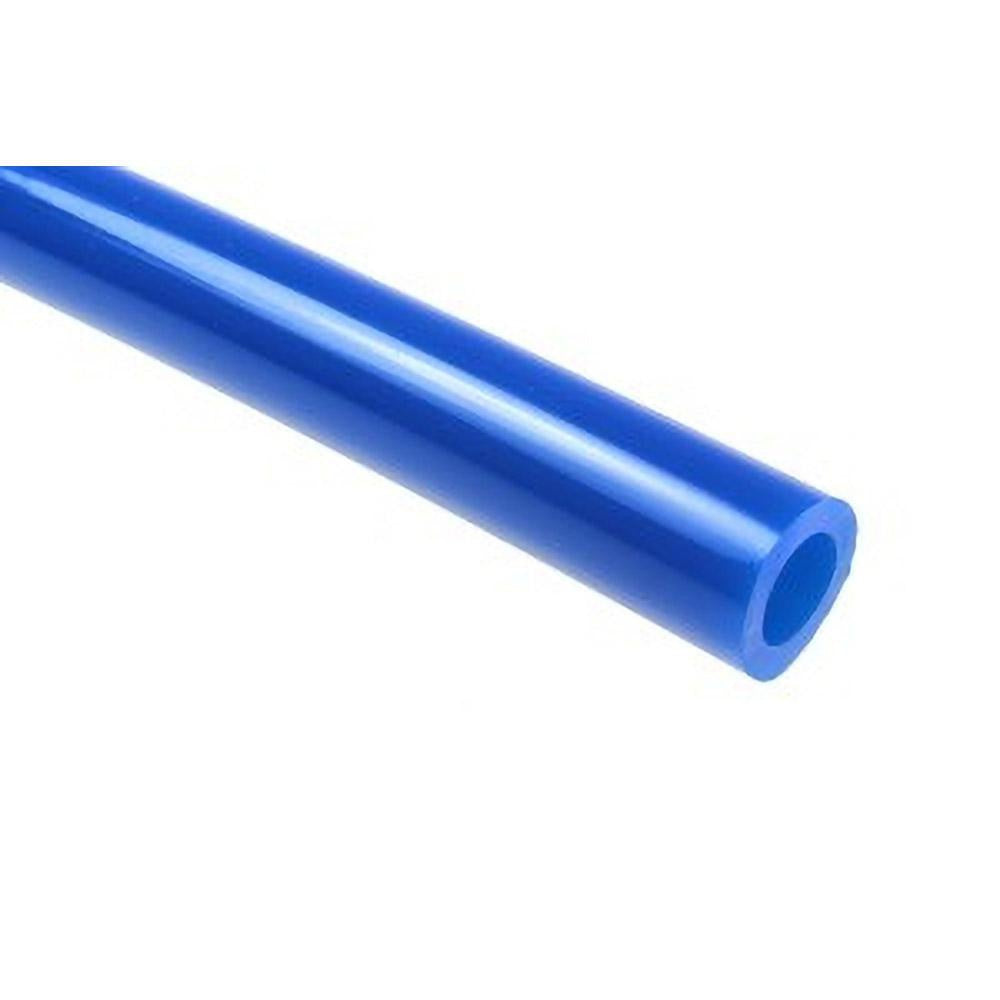

Coilhose Pneumatics PT0404-1000B Polyurethane Tube 1/4 in Od

Product Description

The COILHOSE PNEUMATICS PT0404-1000B is a flexible polyurethane pneumatic tube designed for use in compressed air and fluid transfer applications. With a 5/32 inch inside diameter and 1/4 inch outside diameter, this tube handles a maximum working pressure of 123 psi across a wide temperature range of -40 to 165 degrees F. Rated Shore 95A hardness, it delivers the flexibility and kink resistance that pneumatic system builders and maintenance techs require. The tube is blue for easy identification in multi-line installations and is priced and cut in 1-foot increments from a 1,000-foot coil, with a 25-foot minimum cut length.

This polyurethane tube is suited for industrial and commercial pneumatic plumbing where lightweight, flexible tubing is needed between compressors, actuators, valves, and tools. It is compatible with Coilock push-to-connect fittings and Poly-Tube fittings, making it a direct fit for common pneumatic distribution systems. Typical installers include maintenance technicians, pneumatic system integrators, and industrial pipefitters working on both new installations and retrofit projects.

Key Features

• Flexible polyurethane construction rated Shore 95A hardness for kink resistance under repeated bending
• 123 psi maximum working pressure for standard pneumatic tool and actuator circuits
• Wide temperature range: -40 to 165 degrees F for demanding shop and outdoor environments
• UL94HB flame-rating compliance for use in fire-code-sensitive installations
• Blue color coding simplifies identification in multi-line pneumatic panels
• Compatible with Coilock push-to-connect fittings and Poly-Tube fittings for tool-free connections

Compatibility

Designed for use with Coilock push-to-connect fittings and Poly-Tube fittings. Suitable for standard compressed air and pneumatic fluid transfer systems requiring 1/4 inch OD flexible tubing.

Installation Notes

Installation is typically performed by pneumatic system technicians or industrial maintenance personnel. Before cutting or connecting tubing, depressurize and lock out the compressed air supply per site lockout/tagout procedures. Use a clean, square tube cut to ensure a proper seal in push-to-connect fittings. Verify that operating pressure and temperature conditions remain within the rated limits of 123 psi and 165 degrees F before returning the system to service.
