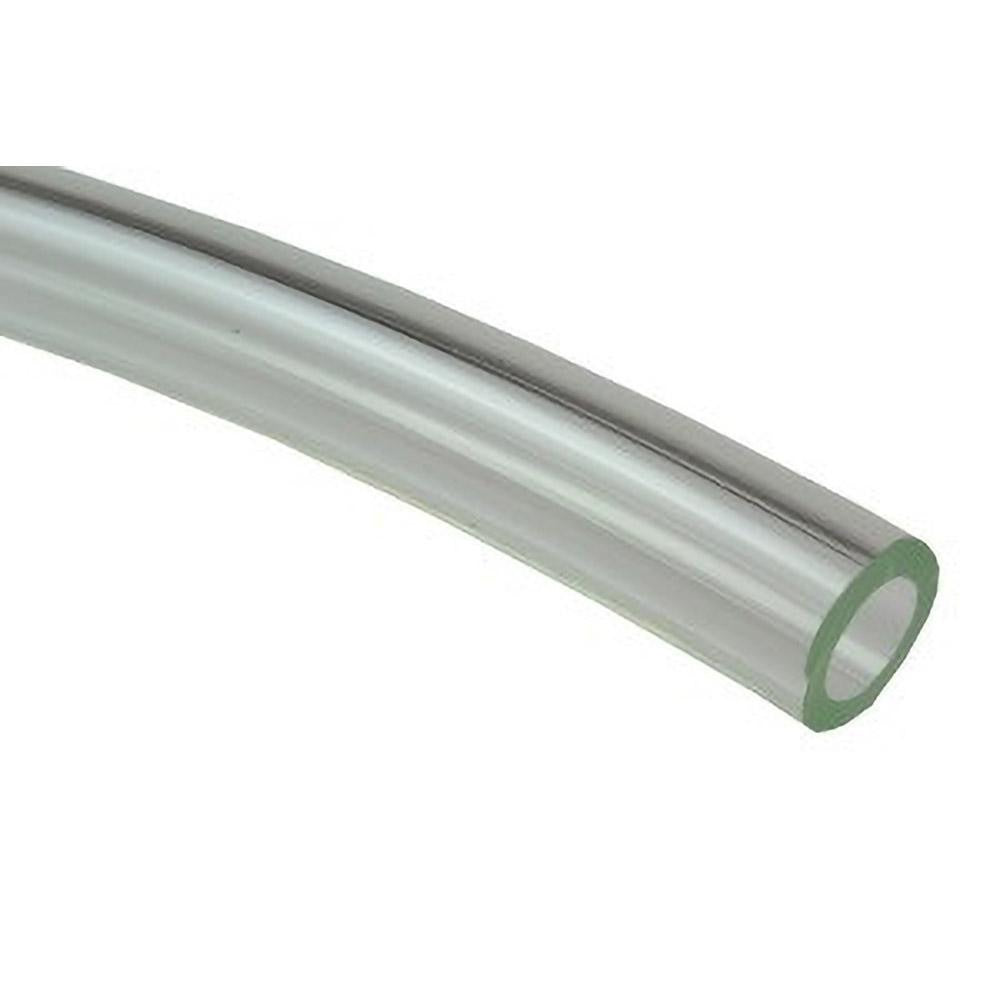

Coilhose Pneumatics PT0203-2500TC Polyurethane Tubing

Product Description

The COILHOSE PNEUMATICS PT0203-2500TC is a clear polyurethane pneumatic tubing designed for use in compressed air and fluid transfer applications. It measures 1/16 inch inside diameter and 1/8 inch outside diameter with a 1/32 inch wall thickness. The tubing carries a maximum working pressure of 126 psi and operates across a temperature range of -40 degrees F to 165 degrees F. With a Shore 95A hardness rating and flexible construction, it holds its shape under pressure while remaining easy to route through tight spaces. It is sold in a 2,500-foot total coil length, priced and cut in 1-foot increments with a 25-foot minimum cut length. Licensed HVAC technicians, plumbers, and industrial mechanics are the typical installers.

This tubing is suited for light-duty pneumatic lines, instrumentation, and push-to-connect fitting assemblies in residential, commercial, and light industrial environments. It pairs directly with Coilock push-to-connect fittings and Poly-Tube fittings, making it a practical choice for quick-assembly pneumatic circuits. The small OD profile allows routing through confined control panels, equipment enclosures, and pneumatic manifold setups where larger tubing is impractical. Its clear color makes visual flow inspection straightforward without additional hardware.

Key Features

• 1/16 inch ID and 1/8 inch OD with 1/32 inch wall thickness for compact pneumatic runs
• Maximum working pressure of 126 psi suits most light pneumatic and instrumentation circuits
• Operating temperature range of -40 degrees F to 165 degrees F for broad environmental compatibility
• Shore 95A hardness provides a balance of flexibility and kink resistance
• Clear tubing allows visual flow and leak inspection without disassembly
• UL94HB compliant for flame-spread requirements in applicable installations
• Compatible with Coilock push-to-connect fittings and Poly-Tube fittings for tool-free connections

Compatibility

Designed for use with Coilock push-to-connect fittings and Poly-Tube fittings per manufacturer specification. Sold in a 2,500-foot coil with a 25-foot minimum cut length and 1-foot increment pricing.

Installation Notes

Depressurize and isolate the pneumatic circuit completely before cutting or connecting tubing. Use a clean, square cut with a tube cutter or sharp blade to ensure a proper seal at push-to-connect fittings — angled or ragged cuts cause leaks. Verify that the fitting inner diameter matches the 1/8 inch OD of this tubing before assembly. Installation should conform to applicable codes and the equipment manufacturer's pressure and temperature ratings.
