Coilhose Pneumatics PT0203-2500B Polyurethane Tube 1/8 Od

Product Description

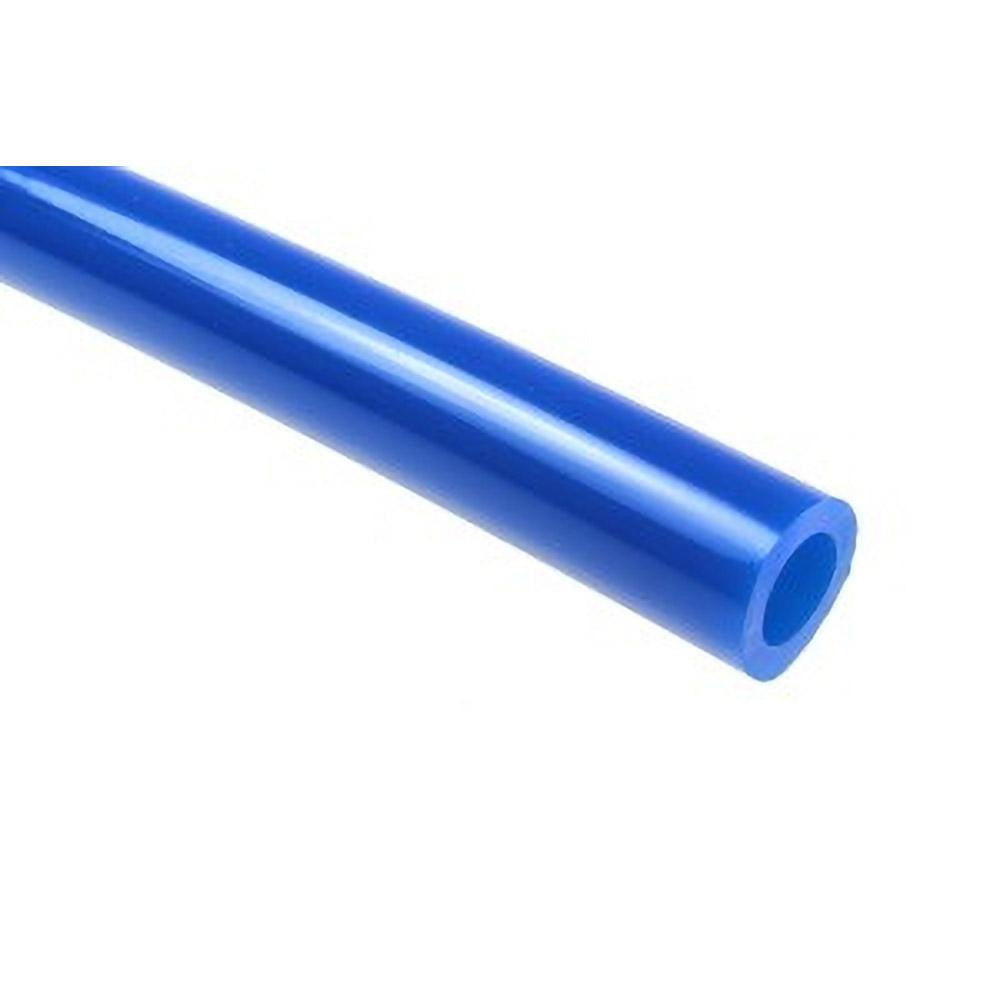

The COILHOSE PNEUMATICS PT0203-2500B is a flexible polyurethane pneumatic tube designed for low-profile air and fluid routing in compressed-air systems. Measuring 1/16 inch ID by 1/8 inch OD with a 1/32 inch wall thickness, this tubing handles working pressures up to 126 psi and operates across a temperature range of -40 to 165 degrees F. Sold in 1-foot increments from a 2,500-foot coil, it is stocked in blue for easy line identification. The Shore 95A hardness rating gives this tube excellent kink resistance while retaining the flexibility needed for tight routing in pneumatic control panels and automation assemblies.

This tubing is suited for light industrial and automation applications where compact, flexible air lines are required. Typical uses include pneumatic control circuits, instrumentation lines, and small-bore compressed-air distribution in manufacturing and assembly environments. It is compatible with Coilock push-to-connect fittings and Poly-Tube fittings, making it a direct fit for existing pneumatic plumbing built around those fitting families. Industrial maintenance technicians and automation integrators are the primary installers. The 25-foot minimum cut length makes it practical for both panel builds and service-line repairs.

Key Features

• 1/16 inch ID and 1/8 inch OD with 1/32 inch wall thickness for compact routing
• 126 psi maximum working pressure rating
• Wide service temperature range: -40 to 165 degrees F
• Shore 95A hardness for kink resistance without sacrificing flexibility
• UL94HB flame-retardant compliant construction
• Blue color coding for quick visual identification in multi-line systems
• Compatible with Coilock push-to-connect fittings and Poly-Tube fittings

Compatibility

Designed for use with Coilock push-to-connect fittings and Poly-Tube fittings. Suitable as a flexible supply or control line in compressed-air pneumatic systems requiring 1/8 inch OD tubing.

Installation Notes

Installation is typically performed by industrial maintenance technicians or automation integrators working on pneumatic control systems. Depressurize and lock out the compressed-air supply before cutting or connecting tubing. Use a sharp, clean tube cutter or blade to ensure a square cut for a leak-free push-to-connect fitting engagement. Route tubing away from sharp edges, high-heat surfaces, and moving components to prevent abrasion or thermal damage.
