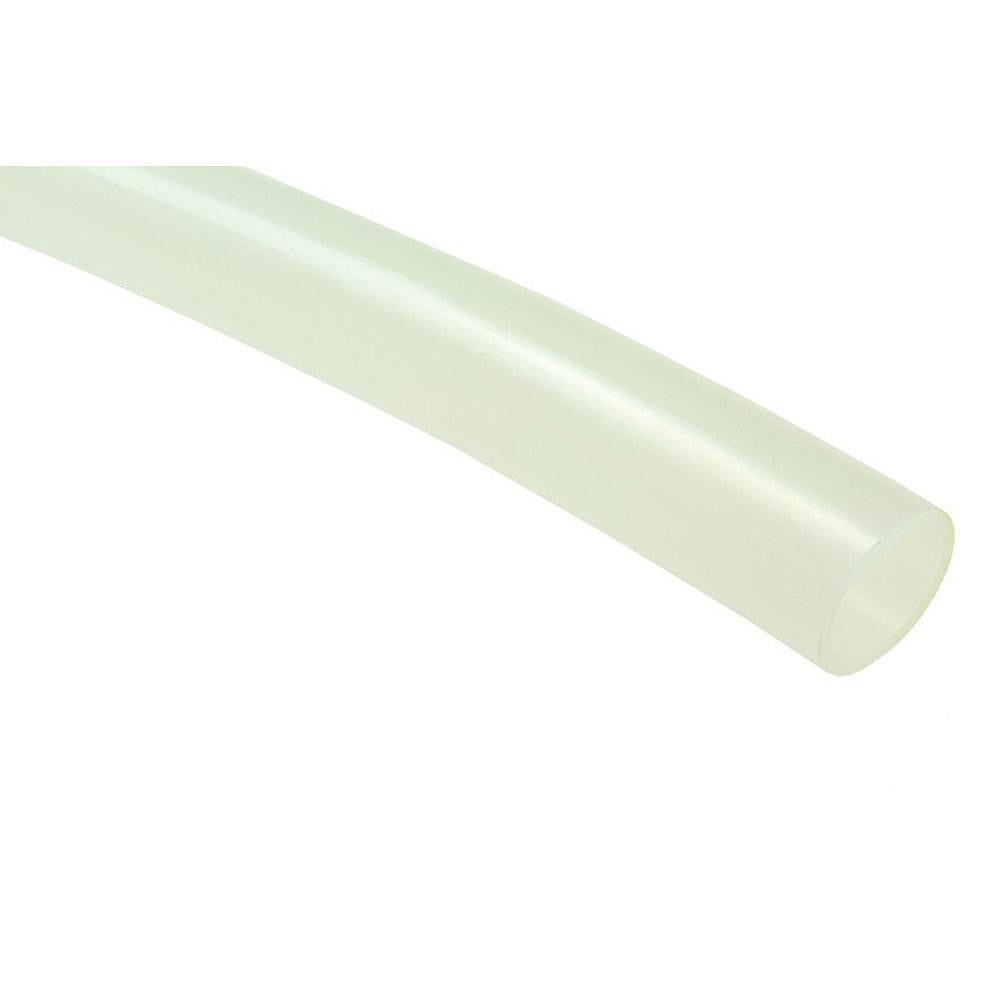

Coilhose Pneumatics PE3103-500N Polyethylene Tube 500 Ft

Product Description

The COILHOSE PNEUMATICS PE3103-500N is a flexible polyethylene pneumatic tube designed for use in compressed air, fluid transfer, and instrumentation line applications. It measures 15/64 inch inside diameter and 5/16 inch outside diameter, with a wall thickness of 0.0383 inches. The tube is rated to a maximum working pressure of 125 psi and handles temperatures from -40 degrees F to 150 degrees F. Supplied in a 500-foot coil in natural (translucent) color, it is priced and cut in 1-foot increments with a 25-foot minimum cut length. Journeymen pipefitters, pneumatic system technicians, and instrumentation specialists typically install this product.

This tubing is suited for residential and light commercial pneumatic control lines, fluid handling runs, and instrument air distribution where a lightweight, flexible, and chemically resistant line is required. It is rated FDA compliant and meets NSF-51 standards, making it appropriate for installations where incidental food-contact compliance is required. The tube is compatible with Coillock push-to-connect fittings and poly-tube fittings, making termination straightforward without specialized tooling in most cases.

Key Features

• Flexible polyethylene construction with Shore 50D hardness for easy routing and bending
• 125 psi maximum working pressure rating
• Wide temperature range: -40 degrees F to 150 degrees F
• FDA compliant and NSF-51 listed for applications requiring food-contact compliance
• Compatible with Coillock push-to-connect fittings and poly-tube fittings
• Supplied in a 500-foot coil, sold in 1-foot increments with a 25-foot minimum cut length

Compatibility

Designed for use with Coillock push-to-connect fittings and poly-tube fittings as specified by the manufacturer. Confirm fitting insert diameter matches the 15/64 inch ID before installation.

Installation Notes

Installation is typically performed by a licensed pipefitter, pneumatic technician, or instrumentation mechanic. Depressurize and isolate the system completely before cutting into any existing line or making connections. Use a clean, square tube cut to ensure proper seating in push-to-connect fittings and to avoid leak paths. Follow applicable local codes and the fitting manufacturer guidelines for minimum insertion depth and pull-out force verification after assembly.
