Coilhose Pneumatics PE2510-2500R Polyethylene Tube Red

Product Description

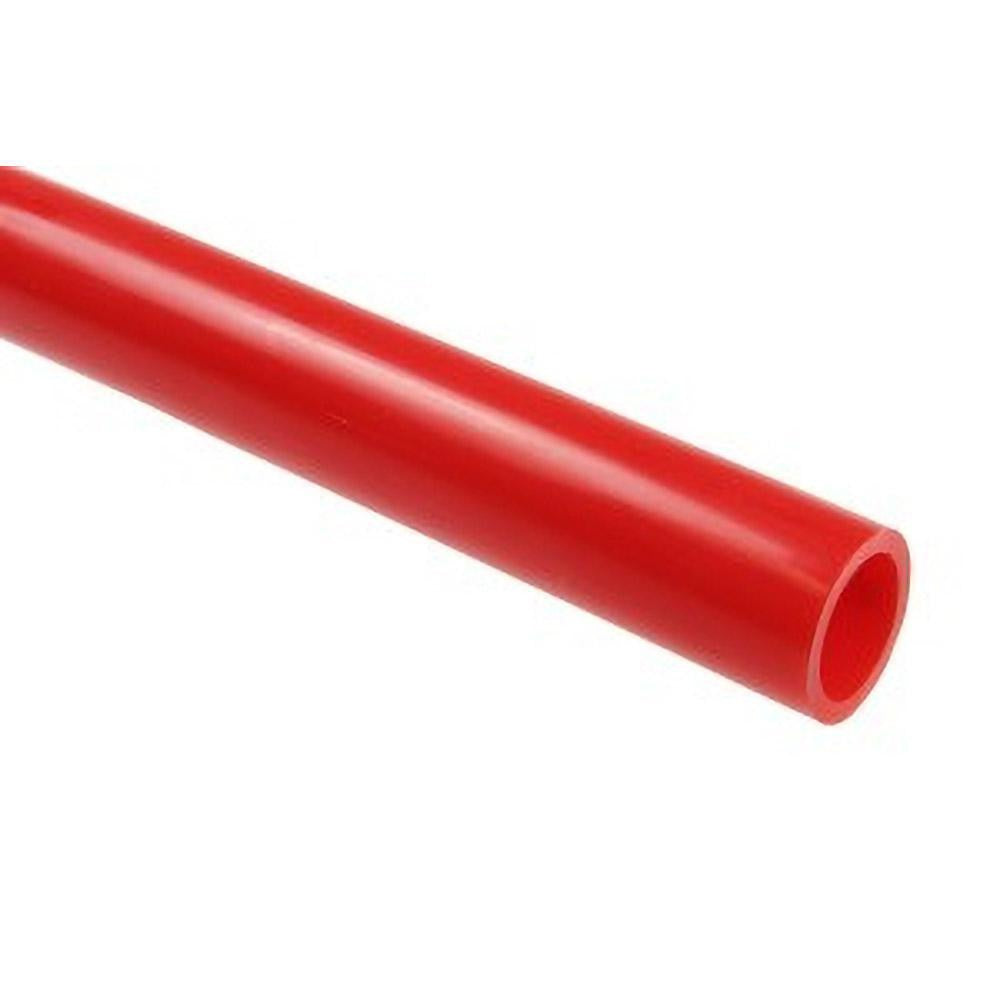

The COILHOSE PNEUMATICS PE2510-2500R is a flexible red polyethylene pneumatic tube supplied in a 2,500-foot coil. It is rated for a maximum working pressure of 150 psi and a temperature range of -40 to 150 degrees F, making it suited to a wide range of compressed air and fluid transfer applications. The tube measures 5/32 inch outside diameter with a 0.106 inch inside diameter and a 0.025 inch wall thickness. Shore 50D hardness provides consistent flexibility without kinking. Licensed plumbers, pipefitters, and pneumatic system installers work with this tube in both light industrial and commercial settings.

This tubing is designed for use with Coilock push-to-connect fittings and Poly-Tube fittings, making it a straightforward choice for compressed air distribution lines, instrumentation runs, and pneumatic control circuits. The red color aids in color-coded line identification on multi-line installations. The tubing is priced and cut in 1-foot increments with a 25-foot minimum cut length, and the full coil length is 2,500 feet. FDA and NSF-51 compliance makes it appropriate for food-processing environments where incidental contact with food or potable water is a concern.

Key Features

• 150 psi maximum working pressure for standard compressed air service
• Wide temperature range: -40 to 150 degrees F
• Shore 50D hardness for flexible, kink-resistant routing
• Compatible with Coilock push-to-connect fittings and Poly-Tube fittings
• FDA and NSF-51 compliant for food and potable water adjacent applications
• Red color coding for easy line identification in multi-line systems

Compatibility

Designed for use with Coilock push-to-connect fittings and Poly-Tube fittings. Suitable for compressed air, pneumatic control, and fluid transfer applications in commercial and light industrial environments.

Installation Notes

Installation should be performed by a qualified pneumatic systems technician or pipefitter. Depressurize the system fully before making or breaking any tube connections. Use the appropriate tube cutter for clean, square cuts to ensure proper seating in push-to-connect fittings. Do not exceed the rated working pressure or temperature limits in service.
