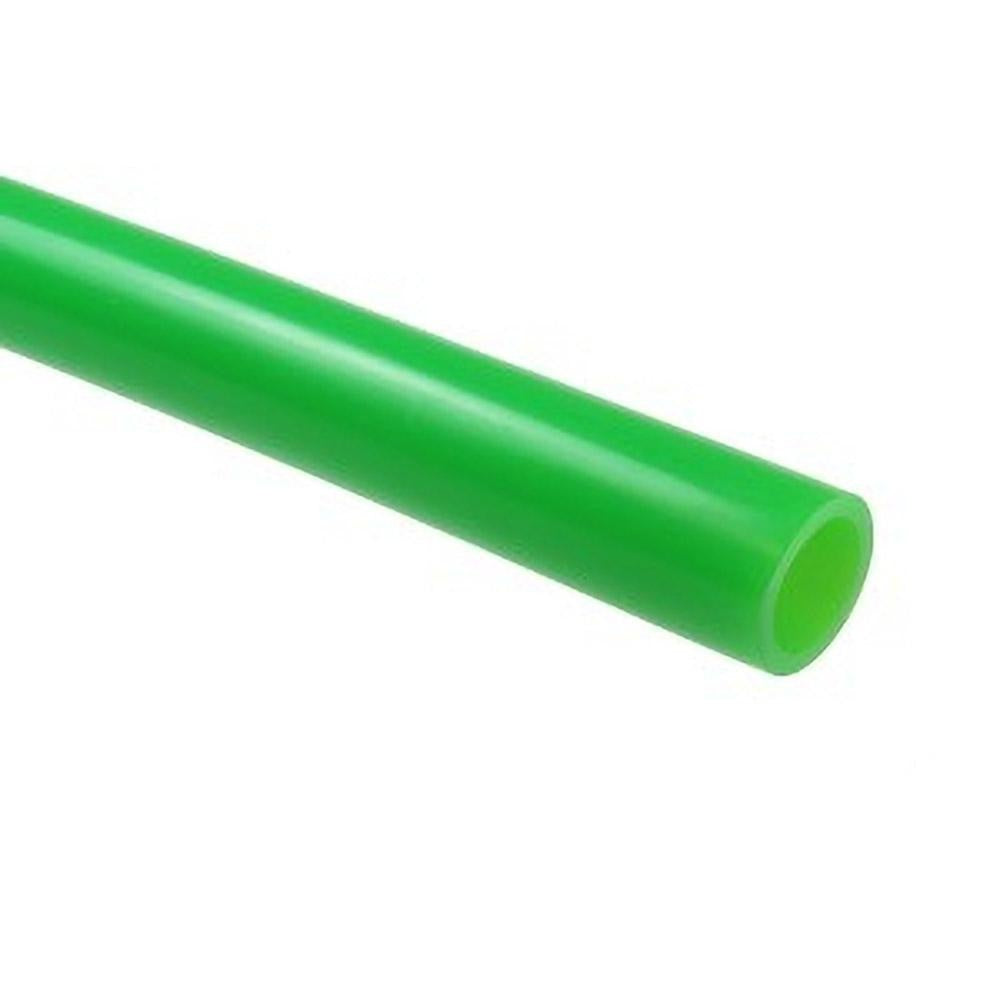

Coilhose Pneumatics PE2510-2500G Polyethylene Tube 5/32 in

Product Description

The COILHOSE PNEUMATICS PE2510-2500G is a flexible polyethylene pneumatic tube designed for use in compressed air and fluid transfer applications. Constructed from FDA-compliant polyethylene with a Shore 50D hardness rating, this tube delivers reliable performance in demanding shop and industrial environments. It measures 5/32 inch outside diameter with a 0.106 inch inside diameter and a 0.025 inch wall thickness. Rated to 150 psi maximum working pressure and suitable for temperatures ranging from -40 degrees F to 150 degrees F, it handles a wide range of operating conditions. The tube is sold in 1-foot increments with a 25-foot minimum cut length from a 2,500-foot total coil. Licensed HVAC, plumbing, and mechanical technicians rely on tubing like this for clean, dependable pneumatic circuit runs.

This tubing is well suited for light industrial, commercial, and shop pneumatic systems where a compact OD and flexible routing are required. The green color aids identification in multi-line installations. It is compatible with Coilock push-to-connect fittings and standard poly-tube fittings, making it straightforward to integrate into existing pneumatic assemblies. The 2,500-foot coil format is practical for contractors and service shops that need continuous lengths for multiple runs without splicing. NSF-51 and FDA compliance also make it appropriate for food-processing-adjacent environments where material safety standards apply.

Key Features

• 5/32 inch OD with 0.106 inch ID and 0.025 inch wall thickness for precise fit with push-to-connect fittings
• 150 psi maximum working pressure rated for compressed air service
• Operating range of -40 degrees F to 150 degrees F suits both cold storage and warm shop environments
• FDA compliant and NSF-51 listed for use in food-processing environments
• Flexible Shore 50D polyethylene construction resists kinking during routing
• Green color coding simplifies multi-line circuit identification
• 2,500-foot coil with 1-foot increment pricing and 25-foot minimum cut length reduces waste on varied job sizes

Compatibility

Designed for use with Coilock push-to-connect fittings and standard poly-tube fittings. Verify fitting bore size matches the 5/32 inch OD before installation.

Installation Notes

Installation is typically performed by mechanical or pneumatic technicians following applicable shop air system codes. Always depressurize and lockout the pneumatic circuit before cutting into an existing line or replacing tubing. Use a clean, square tube cutter rather than a knife to ensure a flat, burr-free end for reliable push-to-connect seating. Avoid routing the tube in contact with sharp edges or heat sources that could exceed the 150 degrees F temperature rating.
